METSEPM2KDGTLIO22

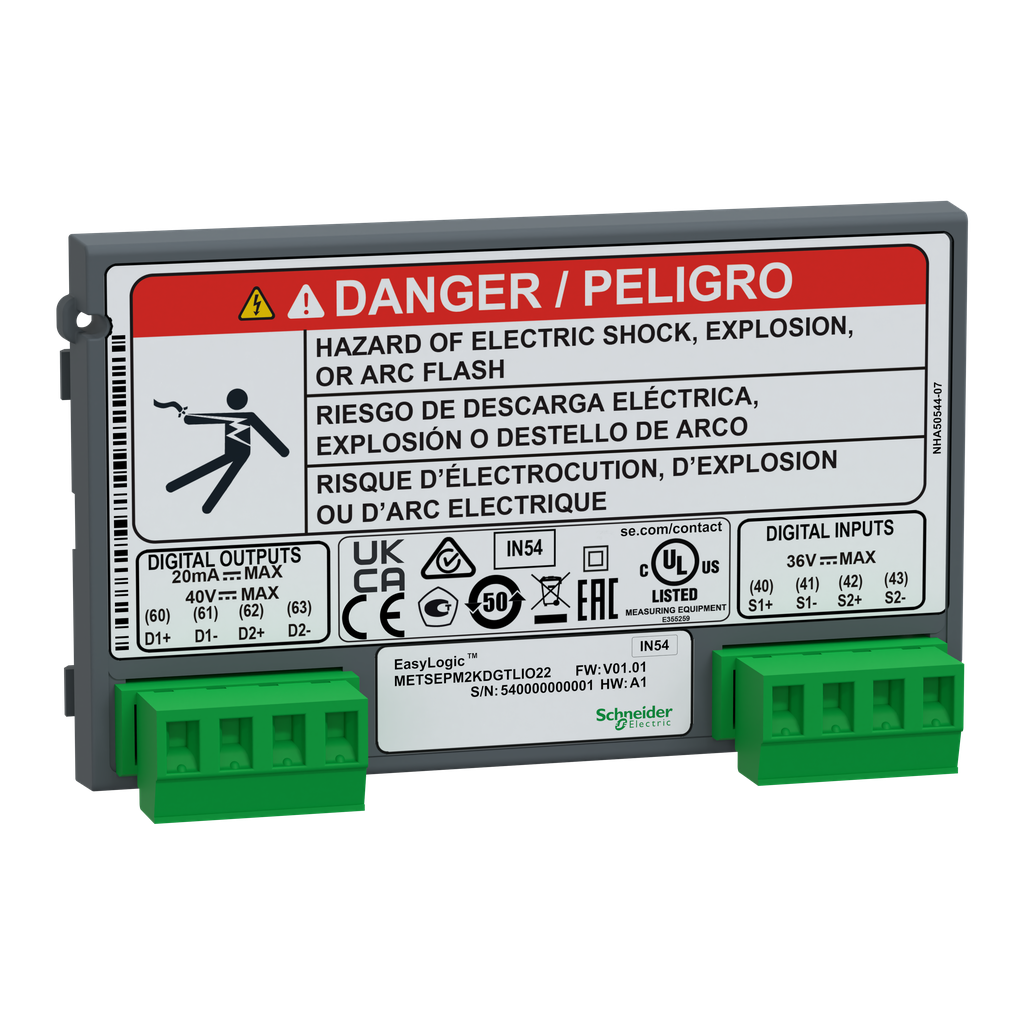

EasyLogic PM2X30 - I/O Module - Digital - 2 Inputs + 2 outputs
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable outputs. This digital module provides 2 digital status inputs that support 30VDC. Plus 2 configurable pulse outputs to provide energy or parameters values. The pulse support loads up to 20mA at 40VDC. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | India |
|---|---|
| Width | 90.5 mm |
| Height | 53 mm |
| Weight | 50 g |
| Range Compatibility |
|
| Product Or Component Type | I/O module |
| Range | EasyLogic |
| Device Application | optional expansion module |
| Device Short Name | PM2K2DIDO |
| Ambient Air Temperature For Operation | -10-60 °C |
| Ambient Air Temperature For Storage | -25-70 °C |
| Height | 53 mm |
| Number Of Outputs | 2 configurable, <= 20 mA |
| Output Voltage | 40 V DC |
| [Ui] Rated Insulation Voltage | 2500 V |
| Voltage State 0 Guaranteed | 0...4 V DC |
| Net Weight | 50 g |
| Number Of Inputs | 2 |
| Voltage State 1 Guaranteed | 18.5...36 V DC |
| Switching Frequency | 2 Hz digital input |
| Input Impedance | 110 kOhm |
| Width | 90.5 mm |
| Output Impedance | 50 Ohm |
| Depth | 14.6 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1510005 |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1510005 |
| Eu Rohs Directive | Compliant with Exemptions |
