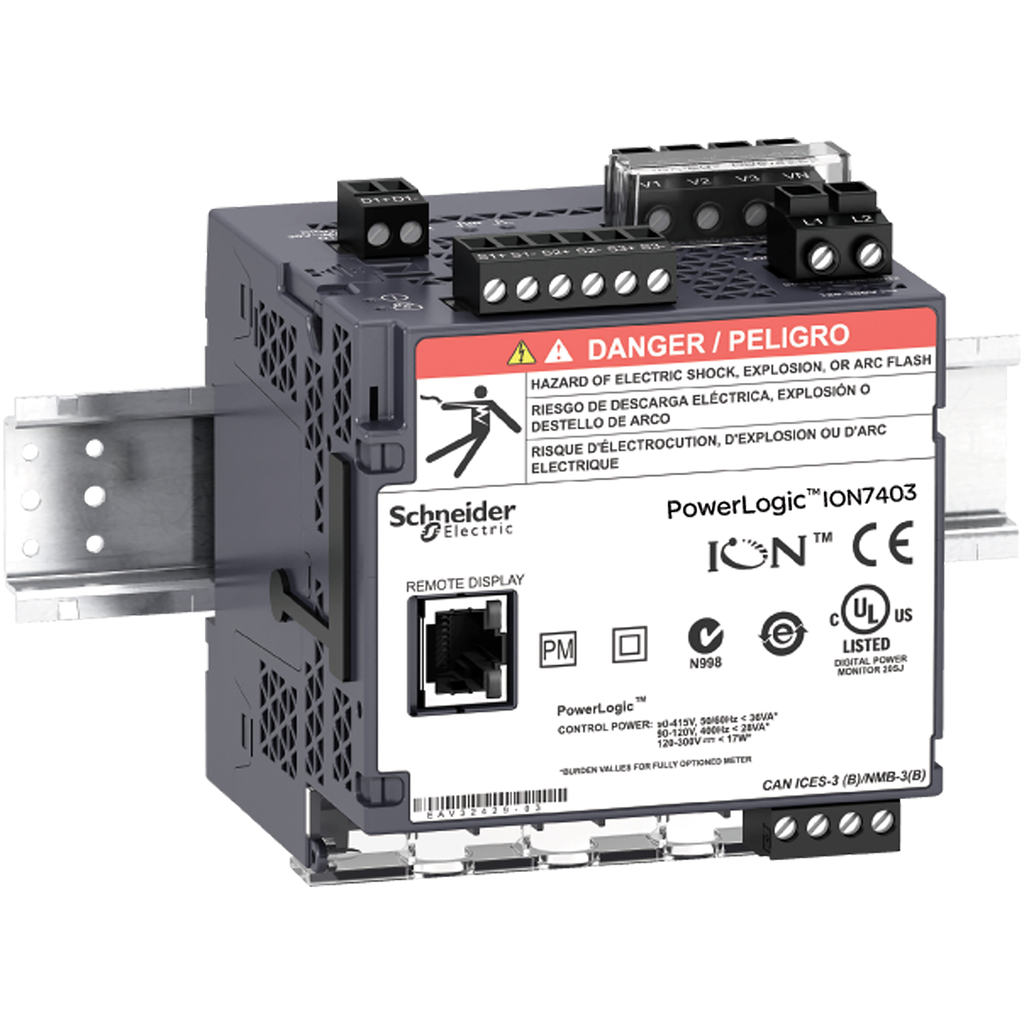

METSEION7403E - Power quality meter, PowerLogic ION7400, Essential, transducer, 64 MB, 128 s/c

METSEION7403E

Power quality meter, PowerLogic ION7400, Essential, transducer, 64 MB, 128 s/c

Add to Quote Catalogue

Specifications

Communication Network Type	IPv6 (internet protocol)
Network Frequency	50 Hz 60 Hz
Communication Port Support	ETHERNET screw terminal block RS485 mini B USB USB
Power Quality Analysis	EN 50160 2010 compliance report IEEE 519 2014 compliance report up to the 63rd harmonic harmonic distortion waveform capture voltage sag and swell detection programmablity (logic and math functions) IEC 62586 power quality monitoring
Height	90.5 mm
Measurement Voltage	57-400 V AC 42...69 Hz between phase and neutral 100-690 V AC 42...69 Hz between phases
Sampling Rate	128 samples/cycle
Standards	IEC 62052-11 IEC 61557-12 IEC 62053-22 IEC 62053-24 IEC 61326-1 IEEE 1588 IEC 62586
Memory Capacity	64 MB
Number Of Outputs	1 pulse
Product Certifications	CE cULus N998
Type Of Measurement	current voltage frequency total active and reactive power total apparent power total power factor total active and reactive power per phase, rms apparent power per phase, rms power factor per phase, rms active and reactive energy per phase, rms apparent energy
Communication Port Protocol	Modbus RTU 115 kbauds - 2-wire ION 115 kbauds - 2-wire DNP3 IEC 61850 Modbus TCP/IP Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s RSTP 801.1d 2004 DLMS
Frequency Measurement Range	42-69 Hz
Communication Service	SMTP e-mail notification NTP time synchronization RSTP support DHCP PTP time synchronization
Power Consumption In Va	18 VA 415 V AC
Number Of Inputs	3 digital 30 V AC 3 digital 60 V DC
Net Weight	528 g
Type Of Installation	indoor installation
Depth	90.8 mm
Measurement Current	50-10000 mA
Information Displayed	voltage current frequency power energy consumption harmonic distortion
[Us] Rated Supply Voltage	90...415 V AC 45...65 Hz +/- 10 % 110...415 V DC +/- 10 %
Mounting Mode	clip-on
Measurement Accuracy	current +/- 0.1 % voltage +/- 0.1 % active energy +/- 0.2 %
Mounting Support	DIN rail
Poles Description	3P + N 3P 1P + N
Data Recording	time stamping trending/forecasting waveform logs sequence of event recording min/max of instantaneous values harmonics logs data logs sag and swell logs GPS synchronisation event logs alarm logs 10 data recorders
Line Rated Current	1 A 5 A 10 A
Cybersecurity	enable/disable communication ports port hardening Syslog protocol support password protection robust security logs
Isolation Voltage	III400-690 V conforming to IEC 61010-1:ed. 3 III400-690 V conforming to EN 61010-1:ed. 3 III347-600 V conforming to UL 61010-1:ed. 3 III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Analogue Input Type	voltage (impedance 5 MOhm) current (impedance 0.3 mOhm)
Web Services	customizable home page file upload/download via FTP file upload/download via SFTP web server alarm notification by e-mail viewing of captured waveform (FTP) viewing of captured waveform (web) HTTPS server
Width	90.5 mm
Display Type	Without Display
Device Application	revenue billing WAGES metering data aggregation power monitoring
Accuracy Class	class 0.2S active energy IEC 62053-22 class 0.2 active energy ANSI C12.20 class 0.2 active power IEC 61557-12 class 0.5S reactive energy IEC 62053-24 class 0.5 power factor IEC 61557-12 class 0.2 voltage IEC 61557-12 class 0.2 current IEC 61557-12 class 0.2 frequency IEC 61557-12 class 0.2 active energy IEC 61557-12
Installation Category	III
Width	90.5 mm
Height	90.5 mm
Weight	528 g
Variant	essential
Product Or Component Type	power meter
Product Name	PowerLogic ION7400
Range	PowerLogic
Device Short Name	ION7403
Ambient Air Temperature For Operation	-25-70 °C
Electromagnetic Compatibility	electrostatic discharge conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 electrical fast transient/burst immunity test conforming to IEC 61000-4-4 surge immunity test conforming to IEC 61000-4-5 conducted RF disturbances conforming to IEC 61000-4-6 magnetic field at power frequency (2...150 Hz) conforming to IEC 61000-4-8 voltage dips and interruptions immunity test conforming to IEC 61000-4-11 immunity to impulse waves conforming to IEC 61000-4-12 conducted and radiated emissions conforming to EN 55022 conducted and radiated emissions conforming to EN 55011 conducted and radiated emissions conforming to FCC part 15 conducted and radiated emissions conforming to ICES-003 conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 surge withstand conforming to IEEE C37.90.1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 %
Ip Degree Of Protection	IP30 conforming to IEC 60529
Operating Altitude	9842.52 ft (3000 m)
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1512006EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1512006EN
Eu Rohs Directive	Compliant with Exemptions
