METSEEM4236 - Enercept Meter, class 0.2S, Modbus/BACnet RS-485, user choice, ANSI wire code

METSEEM4236

Enercept Meter, class 0.2S, Modbus/BACnet RS-485, user choice, ANSI wire code

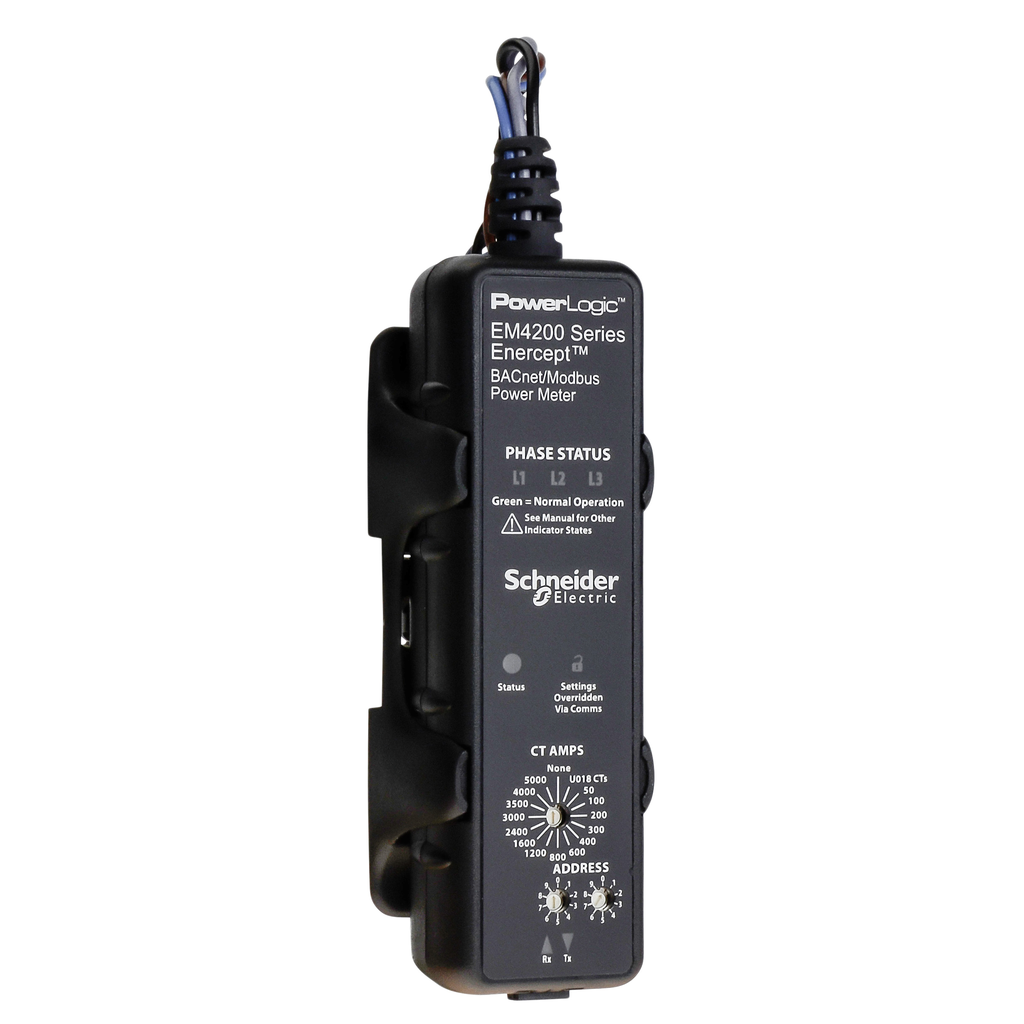

The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. ANSI version, can be associated with an optional fuse pack. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Network Frequency	50 Hz 60 Hz
Provided Equipment	bracket for support hook
Height	152.36 mm
Measurement Voltage	90-90 V AC 45...65 Hz minimum per phase 480-480 V AC 45...65 Hz between phases 300-300 V AC 45...65 Hz between phase and neutral
Number Of Outputs	0
Standards	EN 61010-1 UL 61010-1 CAN/CSA C22.2 No. 61010-1-12
Product Certifications	CE conforming to EN 61010-1 cULus conforming to UL 61010-1 BTL ANSI
Communication Port Protocol	Modbus RTU 9600 bauds...115200 bauds (automatic detection) BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
Frequency Measurement Range	45-65 Hz
Communication Of Data	remote control orders total energy net energy
Number Of Inputs	0
Net Weight	4 kg
Depth	35.81 mm
Measurement Current	50-5000 A
Wire Stripping Length	6 mm
Local Signalling	status LED green and red) line fault 3 LED green, orange and red) dial pointer indication LED Yellow) RX/TX 2 LED green, orange and red)
Connections - Terminals	input/output plug-in connector bottom) 0.2-1.5 mm² current transformer plug-in connector bottom) 0.2-1.5 mm² communication plug-in connector bottom) 0.2-1.5 mm²
Function Available	external synchronisation to communication fixed or rolling block
Mounting Mode	by screws clip-on by hook
Control Type	ADDRESS 1-99 rotary CT AMPS 5-5000 rotary
Mounting Support	enclosure DIN rail
Analogue Input Type	current 0.333 V (impedance 33 kOhm) voltage (impedance 2.5 MOhm)single phase voltage (impedance 5 MOhm)phase to phase
Width	46.63 mm
Display Type	Without Display
Accuracy Class	class 0.2 ANSI C12.20 class 1S IEC 62053-24
Metering Type	active, reactive, apparent energy (signed, four quadrant) apparent power S, S1, S2, S3 demand power P, Q, S active power P, P1, P2, P3 reactive power Q, Q1, Q2, Q3 power factor average current Iavg peak demand power PM, QM, SM frequency voltage U21, U32, U13, V1, V2, V3
Country of Origin	Mexico
Width	46.63 mm
Height	152.36 mm
Weight	4 kg
Product Or Component Type	energy meter
Product Name	PowerLogic EM4200
Type Of Cable	ANSI cable
Range	PowerLogic
Device Application	power monitoring
Device Short Name	Enercept
Ambient Air Temperature For Operation	-30-70 °C
Electromagnetic Compatibility	conducted and radiated emissions conforming to FCC Part 15 class A conducted and radiated emissions conforming to EN 61000-6-4 conducted and radiated emissions conforming to EN 61326 + A1 immunity to conducted disturbances conforming to EN 61000-6-2 immunity to conducted disturbances conforming to EN 61326-1 immunity to radiated fields conforming to EN 61000-6-2 immunity to radiated fields conforming to EN 61326-1
Pollution Degree	2
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	0-95 %
Ip Degree Of Protection	IP20 conforming to IEC 60529
Measurement Category	category III 277-277 V category III 300-300 V
Operating Altitude	< 9842.52 ft (3000 m)
