METSECTSP5A3080U

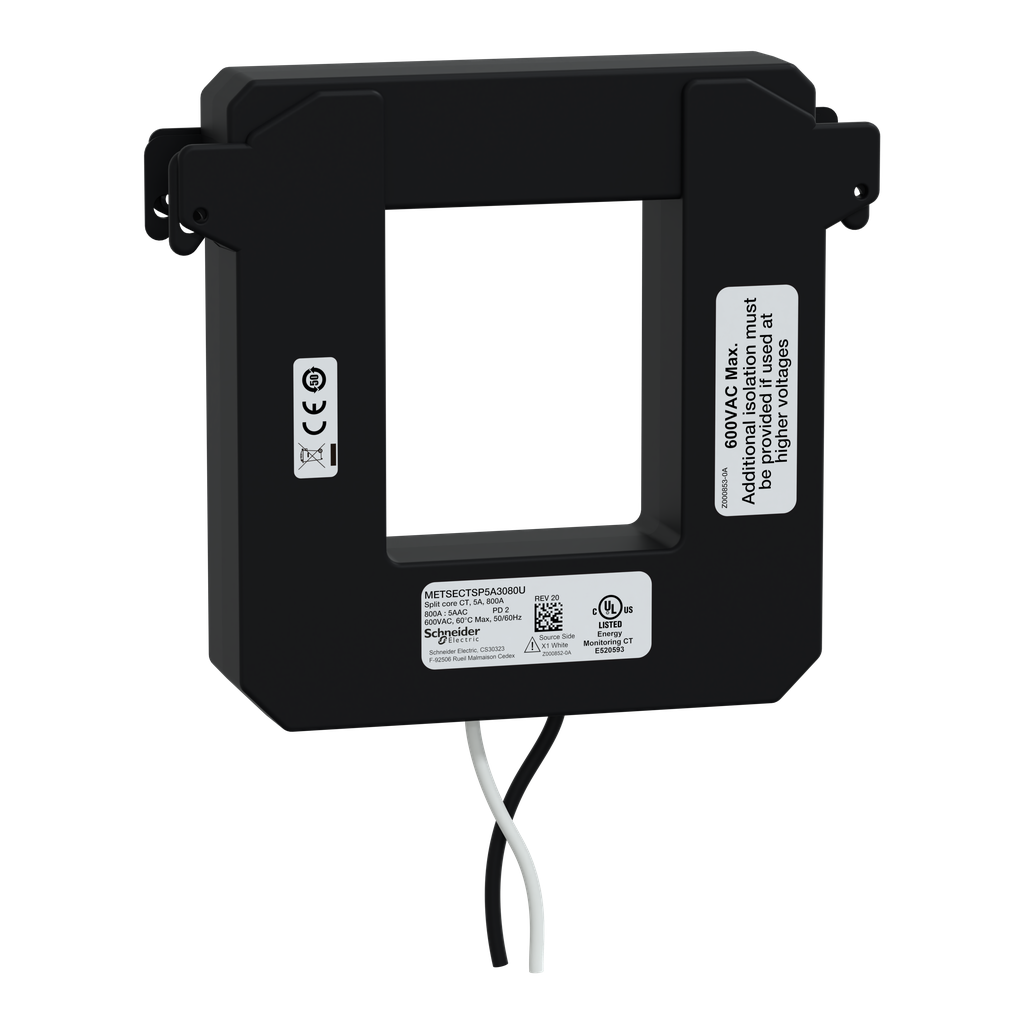

Split core current transformer, PowerLogic UL2808 CT, size 3, 800A, 5A output
Specifications
| Ambient Air Temperature For Operation | -15-60 °C |
|---|---|
| Standards |
|
| Pollution Degree | 2 |
| Product Certifications | UL |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 0-95 % non condensing |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Installation Category | III |
| Rohs Exemption Information | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Electrical Connection | 8 ft AWG 16 flying lead |
| Network Frequency |
|
| Secondary Current | 5 A |
| Network Type | AC |
| Range Compatibility |
|
| Primary Operational Current | 800 A |
| Net Weight | 1097 g |
| Depth | 1.12 in |
| Mounting Location | indoor use only |
| Measurement Accuracy | 1 % |
| Current Transformer Ratio | 800/5 |
| Width |
|
| Height |
|
| Current Transformer Type | split core |
| Insulation |
|
| Country of Origin | Mexico |
| Weight | 1097 g |
| Accessory / Separate Part Category | measurement accessory |
| Product Or Component Type | current transformer |
| Range | PowerLogic |
