METSECTR90500

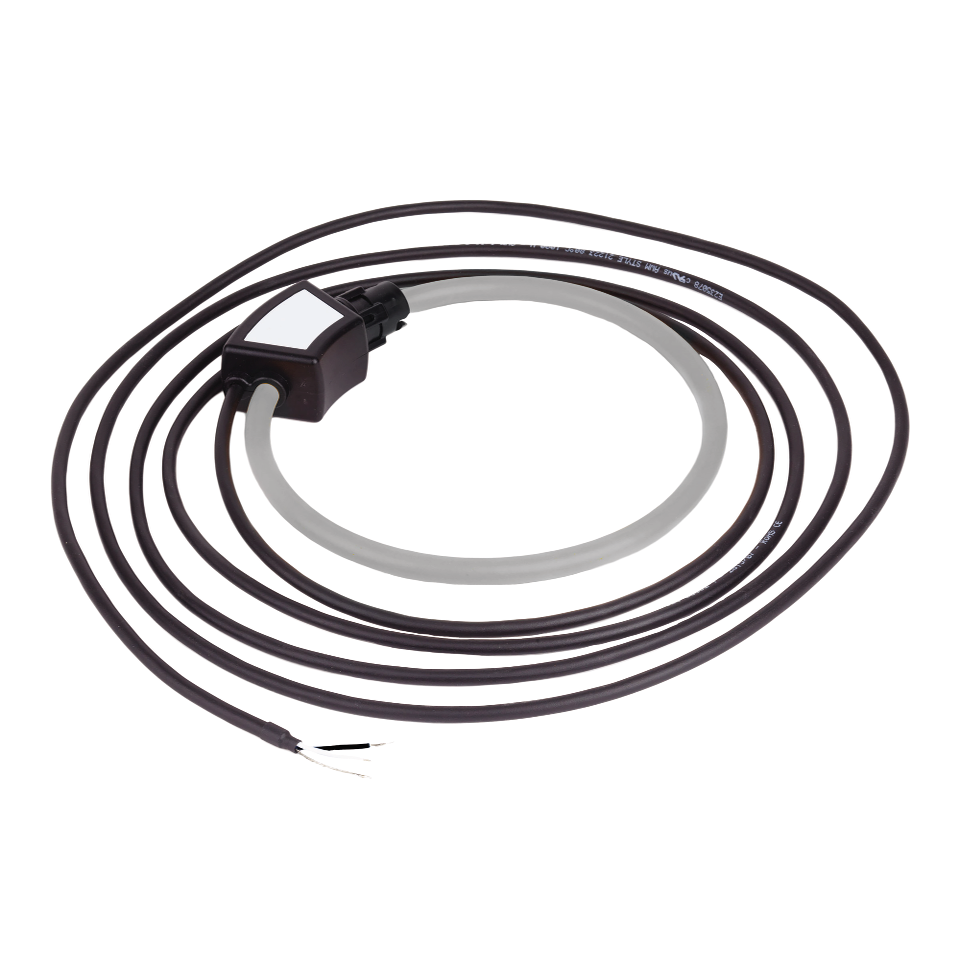

PowerLogic - Ropestyle current tranformer - 5000 A - d=287 mm - lead=2.4 m
This flexible core current transducer, designed for retrofit installation, has a line rated current of 50A to 5000A. The coil can be wrapped around a maximum cable outer diameter of 287mm. Measurement accuracy plus or minus 1% from 50A to 5000A. A flying lead of 2.4 meters is available to connect the transducer to a meter. This product received the cURus certification, and is UL recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50 Hz |
|---|---|
| Electrical Connection | flying lead 2.4 m600 V |
| Pollution Degree | 2 |
| Frequency Measurement Range | 50-1500 Hz |
| Thickness | 8 mm |
| Measurement Current | 50-5000 A |
| Measurement Accuracy | 1 % |
| Height | opened: 900 mm |
| Diameter | closed 287 mm |
| Installation Category | IV |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Compatibility |
|
| Accessory / Separate Part Category | measurement accessory |
| Product Or Component Type | current transducer |
| Range | PowerLogic |
| Current Transformer Type | flexible core |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -15-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP67 |
| Relative Humidity | 0-95 % |
| Ambient Air Temperature For Storage | -40-70 °C |
