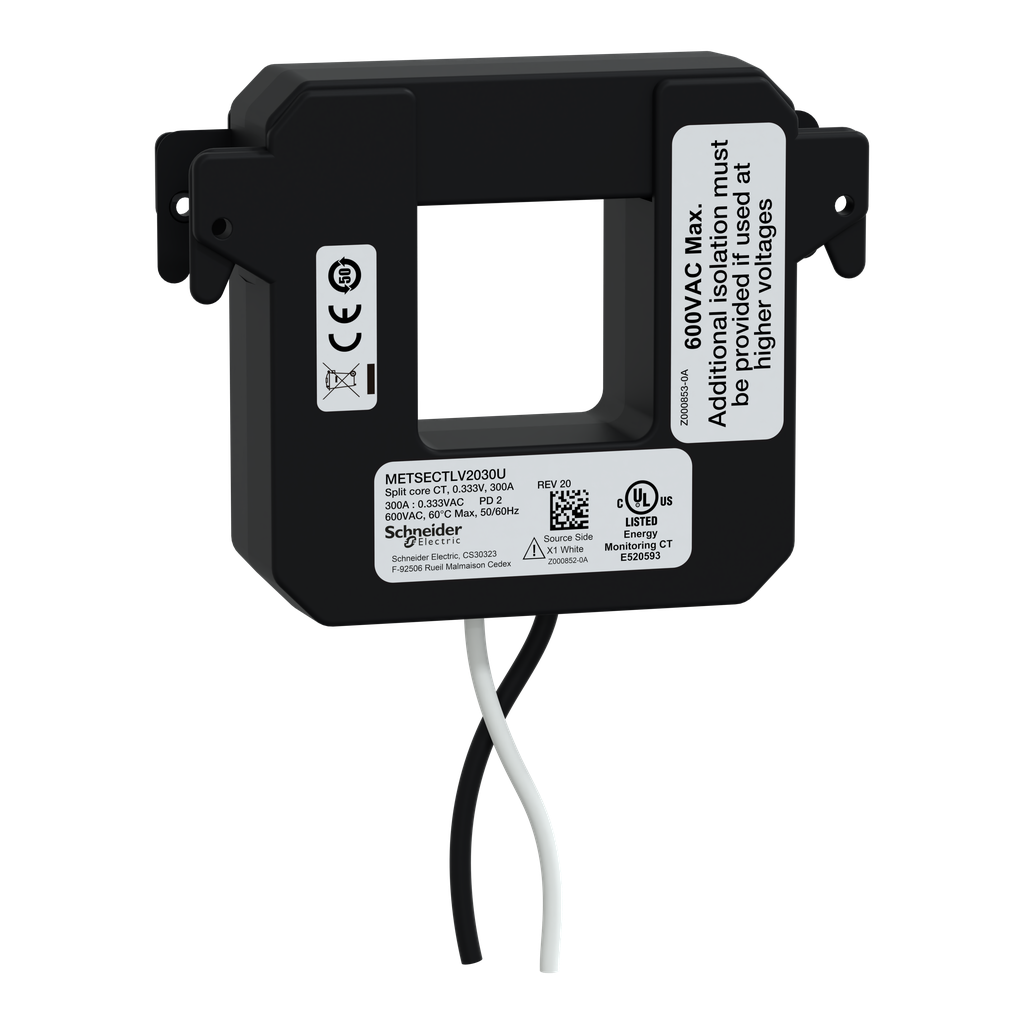

METSECTLV2030U
split core current transformer, PowerLogic UL2808 CT, 300A, 0.333V output, 8ft lead
Specifications
| Ambient Air Temperature For Operation | -15-60 °C |
|---|---|
| Standards |
|
| Net Weight | 671 g |
| Depth | 1.12 in |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 0-95 % |
| Width |
|
| Height |
|
| Country of Origin | Mexico |
| Weight | 671 g |
| Network Frequency |
|
| Product Destination |
|
| Electrical Connection | flying lead 8 ft AWG 16) 600 V |
| Product Or Component Type | current transformer |
| Range | PowerLogic |
| Output Voltage | 0.333 V |
| Line Rated Current | 300 A |
| Current Transformer Type | split core |
| Device Short Name | LVCT |
| Rohs Exemption Information | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Range Compatibility |
|
| Measurement Accuracy | 1 % |
