MDSAN11

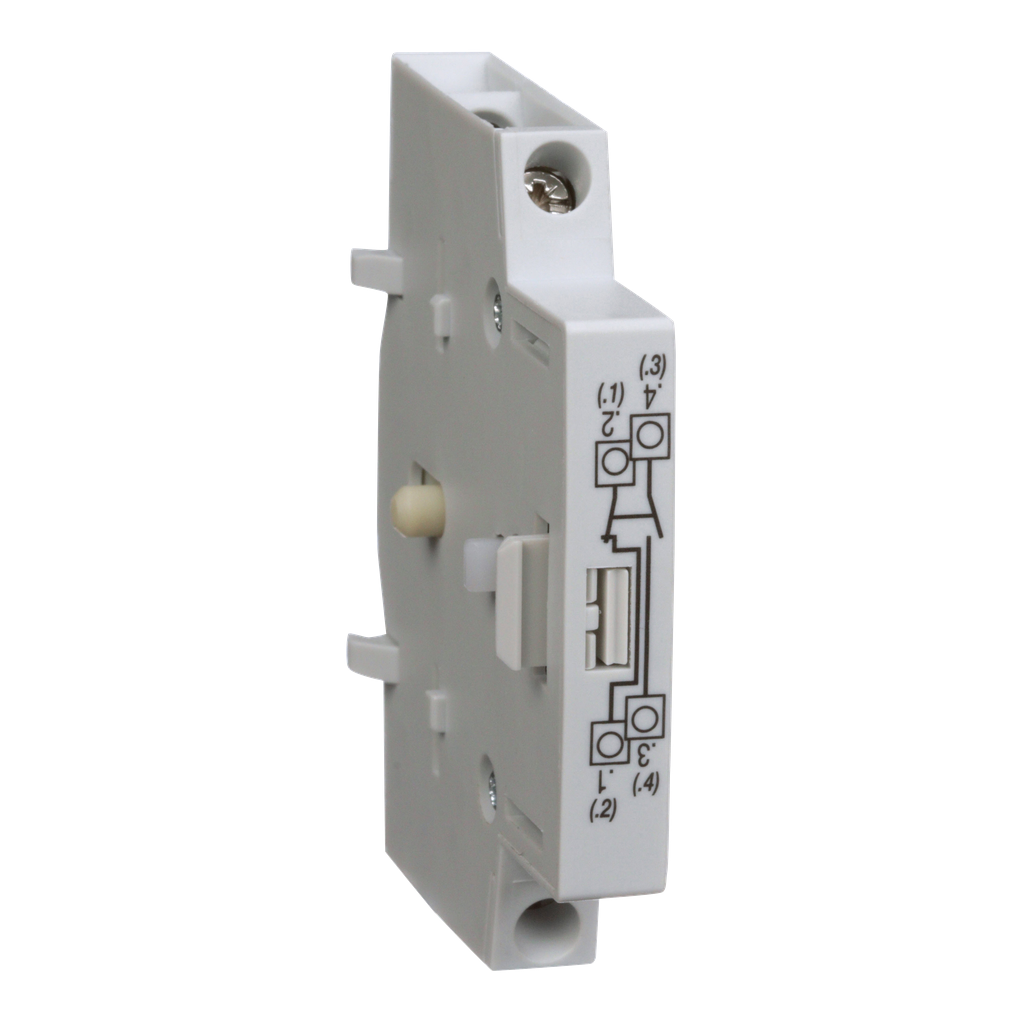

MD motor disconnect switch, auxiliary contact module, 1NO and 1NC
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This auxiliary contact module has one normally open and one normally closed contact. Auxiliary contact is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Formaldehyde (gas), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Range Of Product | MD |
| Product Or Component Type | Auxiliary Contact Module |
| Product Destination |
|
Documents
- 30-100 A, LK4DU3CN, LK4GU3CN, LK4JU3CN, Load Break Switch Instruction Bulletin - 30072-454-11_06 (pdf)
- MD Motor Disconnect Accessories—Auxiliary Contacts (MDSAN11/MDSAN20) and Fourth Pole (MDS30P) - IS+536776_01 (pdf)
- Spec Sheet
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
