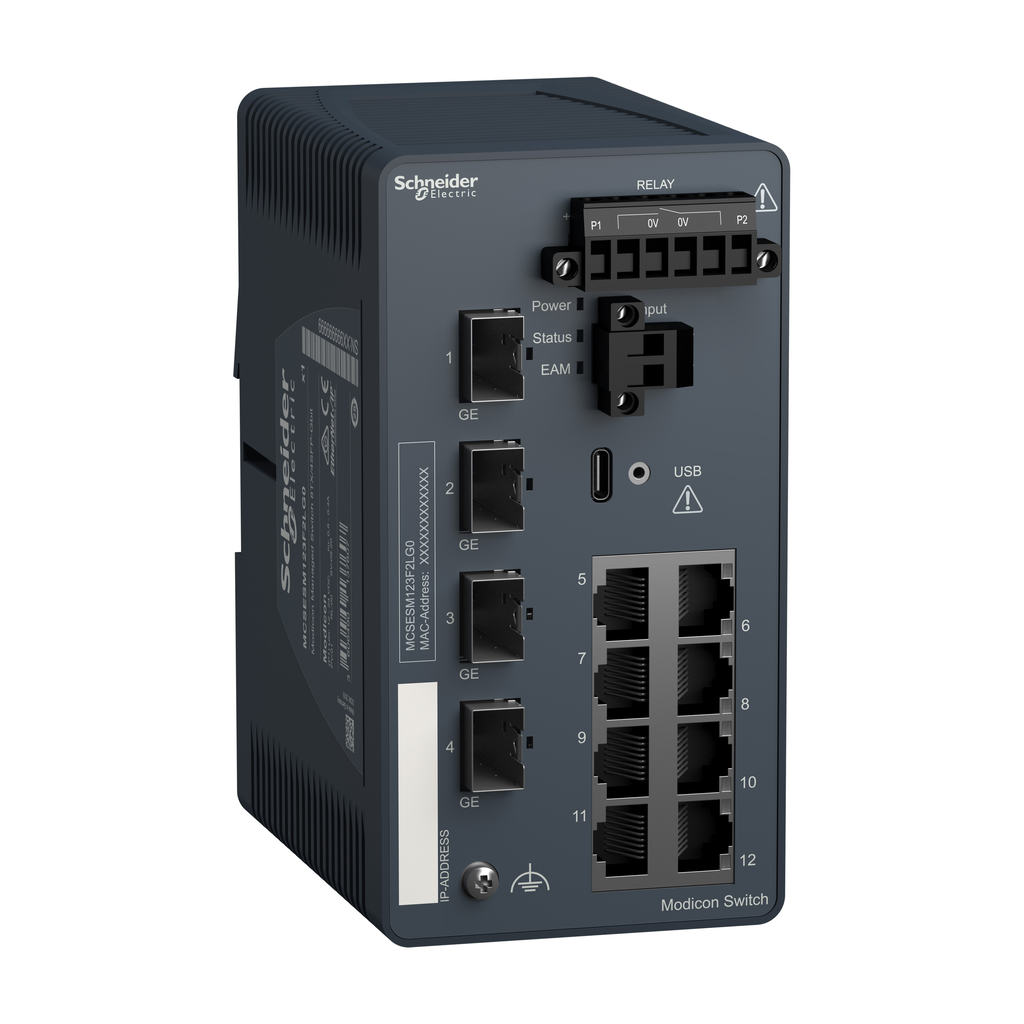

MCSESM123F2LG0
network switch, Modicon Networking, managed, 8 ports for copper with 4Gigabit SFP
Specifications
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Standards |
|
| Product Certifications |
|
| Directives |
|
| Relative Humidity | 1-95 % non-condensing |
| Ip Degree Of Protection | IP30 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003019EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003019EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Cable Distance Between Devices | 100 m copper cable |
| [Us] Rated Supply Voltage | 12...24 V |
| Height | 142.8 mm |
| Alarm Function |
|
| Integrated Connection Type |
|
| Transmission Support Medium |
|
| Mounting Support | 35 mm symmetrical DIN rail |
| Power Consumption In W | 9 W |
| Communication Service |
|
| Marking |
|
| Alarm Output | 1 voltfree contact 1 A |
| Redundancy |
|
| Net Weight | 0.57 kg |
| Electrical Connection | removable connector 6 ways power supply |
| Maximum Number Of Switches In A Ring | 50 |
| Function Available |
|
| Ethernet Service |
|
| Ethernet Cabling System | TF switches |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Local Signalling |
|
| Diagnostics Run Time |
|
| Width | 73 mm |
| Depth | 117.6 mm |
| Country of Origin | Germany |
| Width | 73 mm |
| Height | 142.8 mm |
| Weight | 0.57 kg |
| Maximum Number Of Switches In Cascade | unlimited |
| Range Of Product | Modicon |
| Port Ethernet |
|
| Product Or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol |
|
| Cybersecurity |
|
| Concept | Transparent Ready |
