MA8IMA241

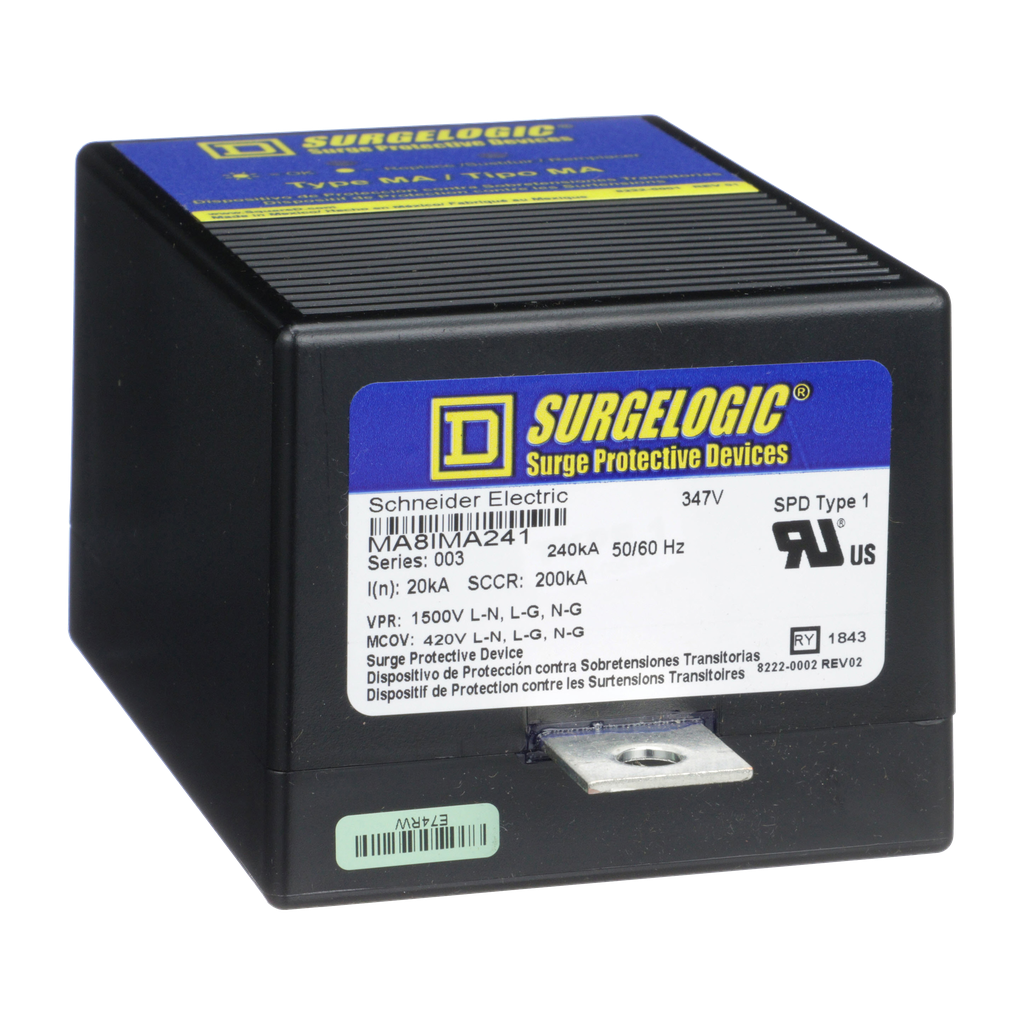

Surge protection module, Surgelogic, MA, 240kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1
Square D® brand Surgelogic™ EMA SPDs, MA8IMA241, feature a design based on individual phase modules for a flexible way to achieve superior surge suppression. Suppression Status Alarms provide multiple methods of alarm notification, advanced Diagnostics for visual indication/testing of the suppressor's functionality. Suitable for applications in low voltage systems, building, industrial automation and control also for critical power, cooling, racks. Device is NEMA 2 degree of protection.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
| Country of Origin | United States |
| Width | 82.8 mm |
| Height | 158.8 mm |
| Range Of Product | Surgelogic |
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | surge protection module |
| Device Short Name | IMA |
| Height | 158.8 mm |
| Connections - Terminals | terminals |
| Mounting Support | panel mounting |
| Provided Equipment | alarm enable/disable switch |
| Surge Current | 240 kA per phase |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| Local Signalling | status LED green normal operation |
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 420 V |
| Width | 82.8 mm |
| Wiring Configuration | 4-wire |
| Depth | 68.3 mm |
| [Ue] Rated Operational Voltage | 600Y/347 V AC |
