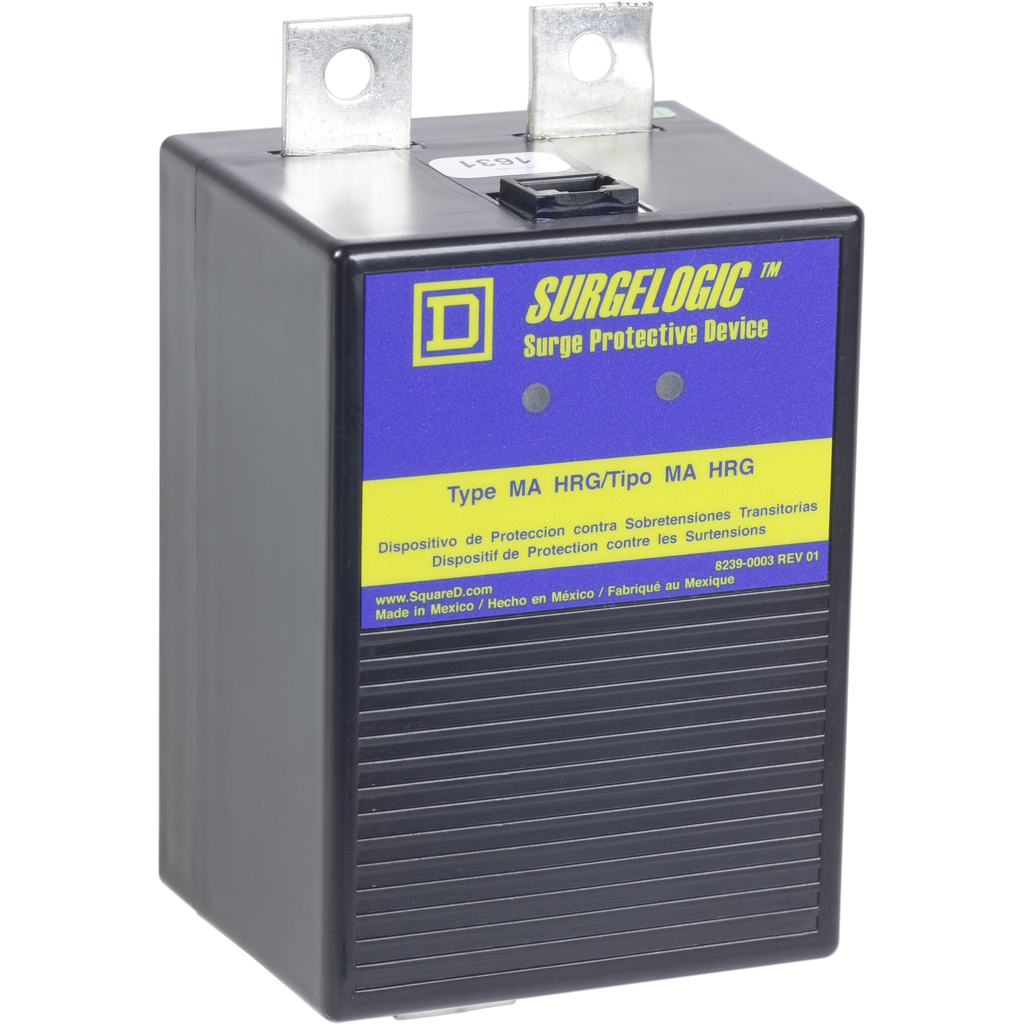

MA8IMA16H
Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 3 wire, SPD type 2, HRG
Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High Resistance Ground system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 65-65 °C |
|---|---|
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
| Standards |
|
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Height | 158.8 mm |
| Local Signalling | status LED green normal operation |
| Connections - Terminals | terminals |
| Short-Circuit Protection | 200 kA |
| Mounting Support | panel mounting |
| Provided Equipment | alarm enable/disable switch |
| [Uc] Maximum Continuous Operating Voltage | 420 V |
| Surge Current | 160 kA per phase |
| Wiring Configuration | 3-wire |
| Width | 82.8 mm |
| Depth | 68.3 mm |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600Y/347 V AC |
| Width | 82.8 mm |
| Height | 158.8 mm |
| Range Of Product | Surgelogic |
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | surge protection module |
| Device Short Name |
|
