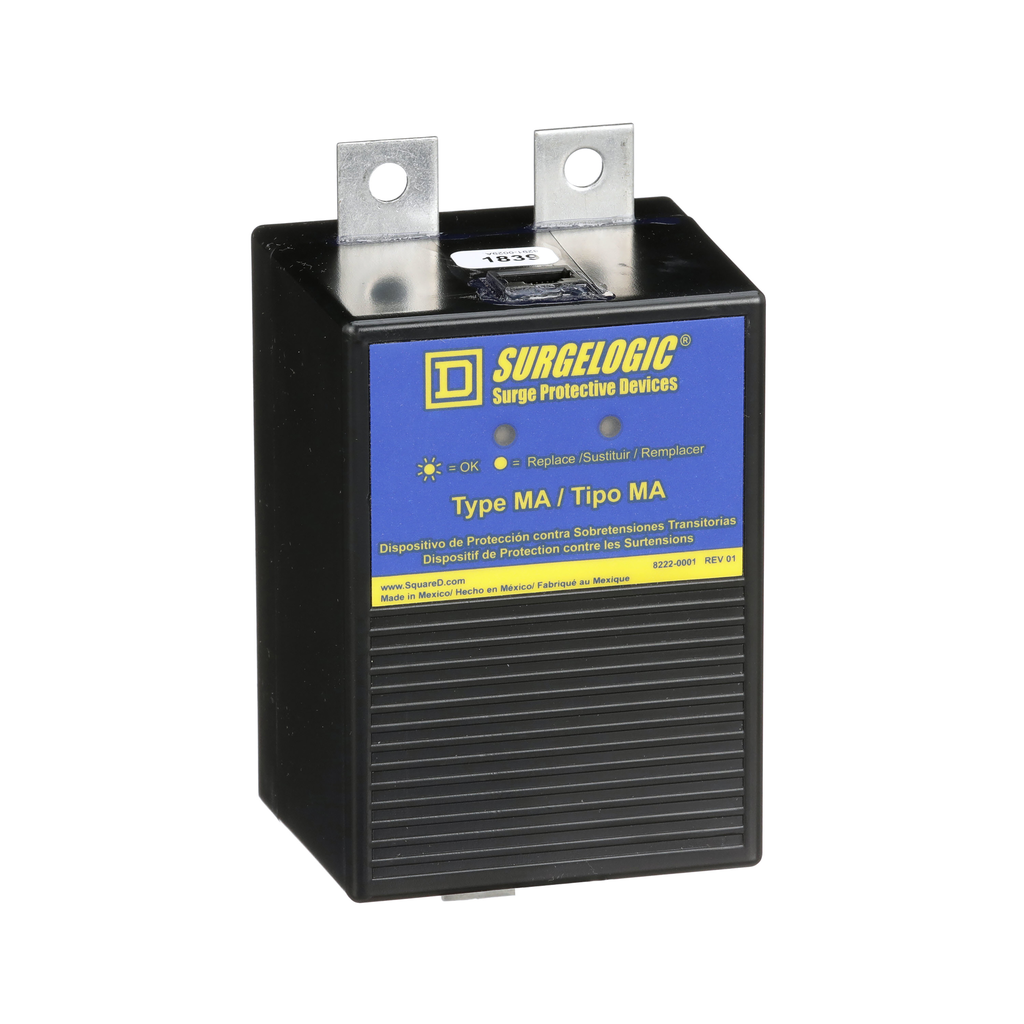

MA8IMA161 - Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1

MA8IMA161

Surge protection module, Surgelogic, MA, 160kA, 600Y/347 VAC, 3 phase, 4 wire, SPD type 1

Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. This SPD provides a surge current rating of 120,000 Amps with enhanced EMI/RFI filtering. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). This product is UL and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	158.8 mm
Connections - Terminals	terminals
Mounting Support	panel mounting
Provided Equipment	alarm enable/disable switch
Surge Current	160 kA per phase
Nominal Discharge Current	20 kA
Phase	3 phase
Local Signalling	status LED green normal operation
Short-Circuit Protection	200 kA
[Uc] Maximum Continuous Operating Voltage	420 V
Width	82.8 mm
Wiring Configuration	4-wire
Depth	68.3 mm
[Ue] Rated Operational Voltage	600Y/347 V AC
Country of Origin	Mexico
Width	82.8 mm
Height	158.8 mm
Range Of Product	Surgelogic
Accessory / Separate Part Category	replacement part
Product Or Component Type	surge protection module
Device Short Name	IMA
Rohs Exemption Information	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Ambient Air Temperature For Operation	65-65 °C
Standards	UL 1449:ed. 4: type I UL 1283:ed. 5 CSA C22.2 No 8:1986 ANSI/IEEE C62.41 ANSI/IEEE C62.45 NEC 285
Nema Degree Of Protection	NEMA 2
Enclosure Material	Black Plastic
