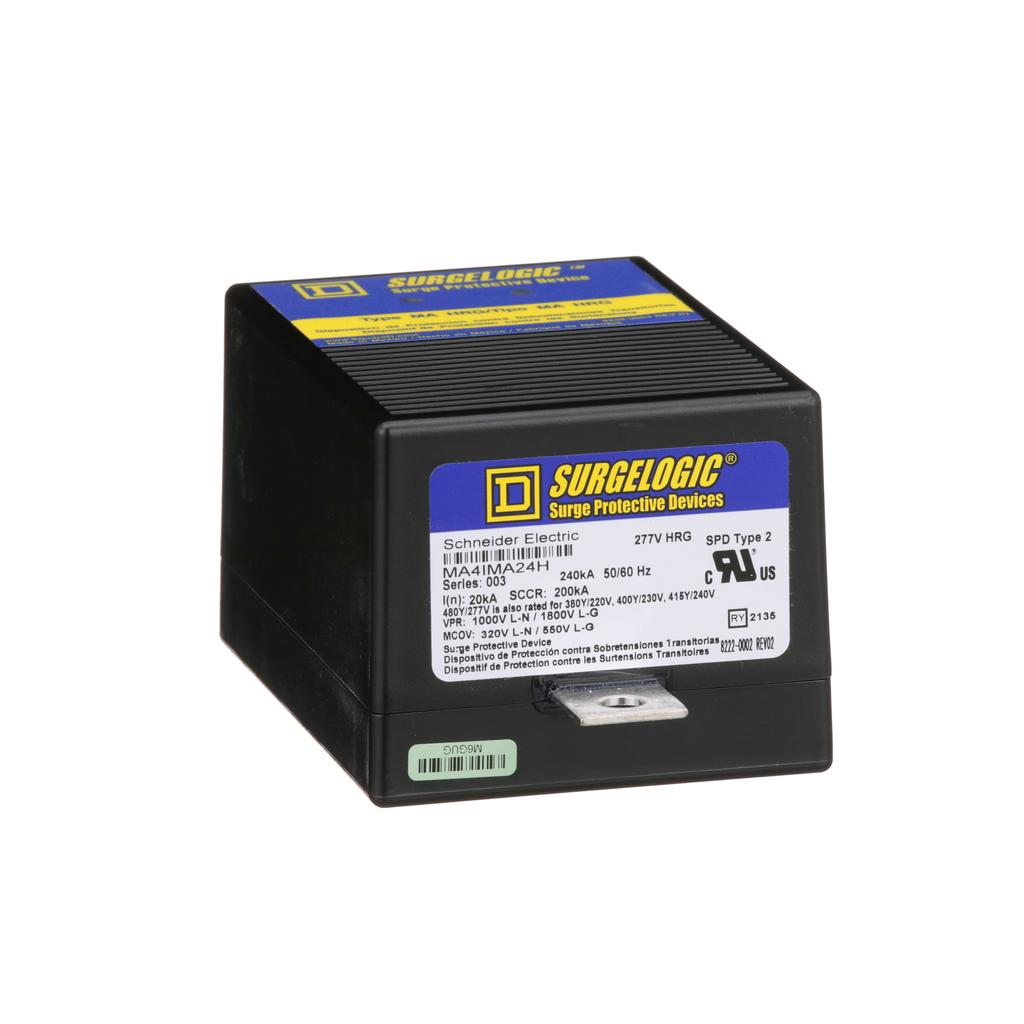

Surge protection module, Surgelogic, MA, 240kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 2, HRG
Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 3-wire + ground, 480Y/277 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | surge protection module |
| Device Short Name |
|
| Warranty | 18 months |
| Height | 158.8 mm |
| Local Signalling | status LED green normal operation |
| Connections - Terminals | terminals |
| Short-Circuit Protection | 200 kA |
| Mounting Support | panel mounting |
| Provided Equipment | alarm enable/disable switch |
| [Uc] Maximum Continuous Operating Voltage | 320 V |
| Surge Current | 240 kA per phase |
| Wiring Configuration | 4-wire |
| Width | 82.8 mm |
| Depth | 68.3 mm |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | 65-65 °C |
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
| Standards |
|
