MA1IMA16

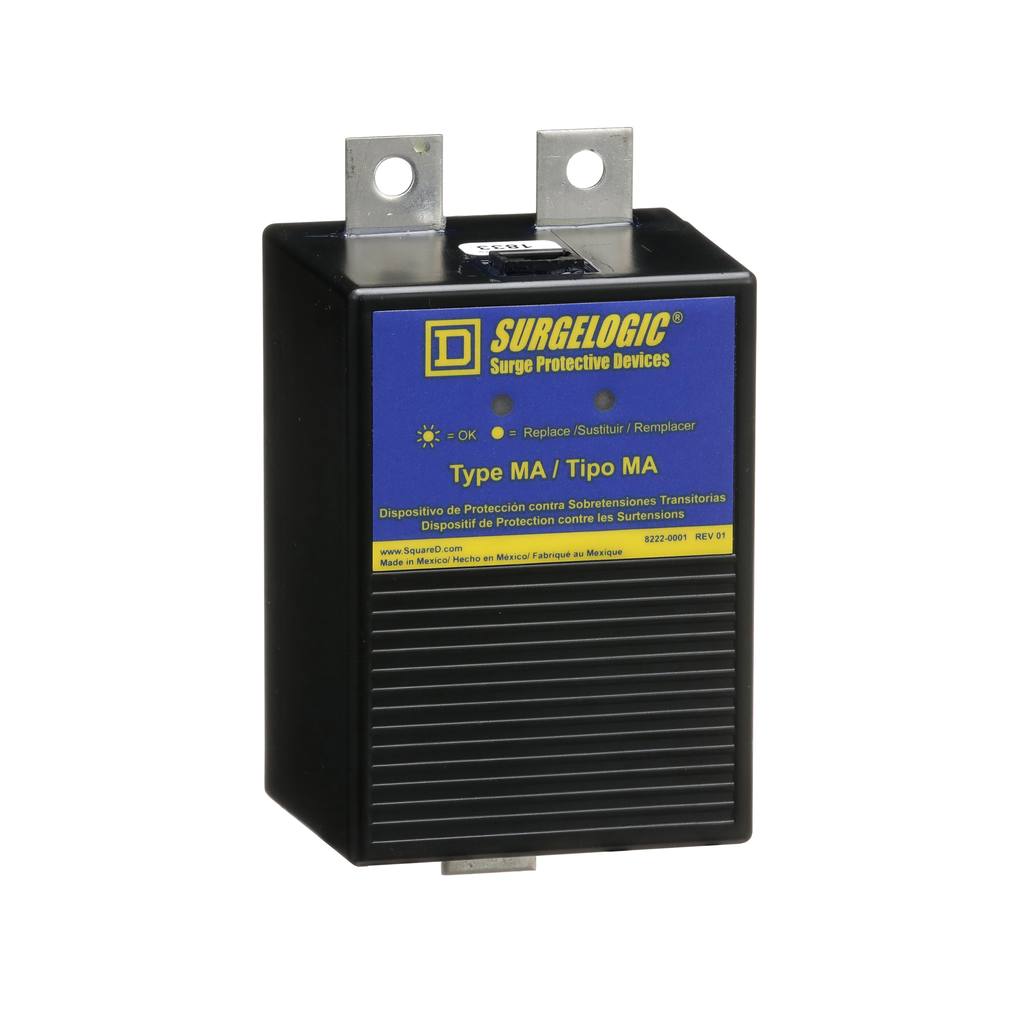

Surge protection module, Surgelogic, MA, 160kA, 120/240 VAC, 1 phase, 3 wire, SPD type 2
Surgelogic™ EMA and EBA series SPDs, MA1IMA16, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 65-65 °C |
|---|---|
| Standards |
|
| Nema Degree Of Protection | NEMA 2 |
| Enclosure Material | Black Plastic |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 158.8 mm |
| Connections - Terminals | terminals |
| Mounting Support | panel mounting |
| Provided Equipment | alarm enable/disable switch |
| Surge Current | 160 kA per phase |
| Nominal Discharge Current | 20 kA |
| Phase | 1 phase |
| Local Signalling | status LED green normal operation |
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Width | 82.8 mm |
| Wiring Configuration | 3-wire |
| Depth | 68.3 mm |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Country of Origin | Mexico |
| Width | 82.8 mm |
| Height | 158.8 mm |
| Range Of Product | Surgelogic |
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | surge protection module |
| Device Short Name | IMA |
