M9XUPC04

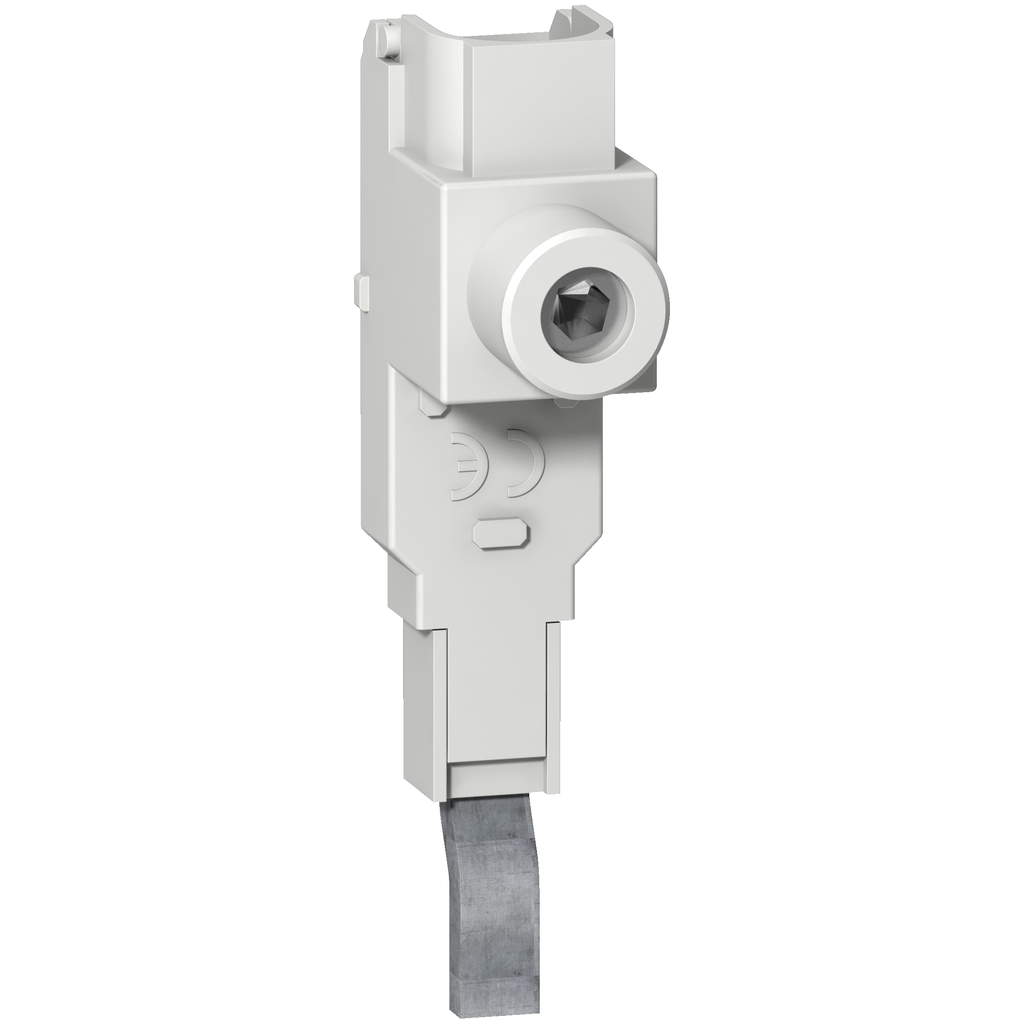

Multi9 - terminals for M9XU comb busbar - set of 4
This Multi9 product is a set of 4 cable connectors. It accepts a rigid or flexible cable cross-section from 6mm² to 35mm². It is compatible with C60BP device. The tightening torque is 3.5N.m. The color of the device is white (RAL 9001).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Line Rated Current | 63 A |
| Connections - Terminals |
|
| Connection Pitch | 18 mm |
| Range Compatibility | Multi9 Multi9 C60 C60BP comb busbar |
| Standards |
|
| Product Certifications |
|
| [Ui] Rated Insulation Voltage | 1000 V |
| Color | White RAL 9001) |
| Tightening Torque | 3.5-3.5 N.m |
| Country of Origin | China |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | connector |
| Range | Multi9 |
| Quantity Per Set | set of 4 |
