M9A26971

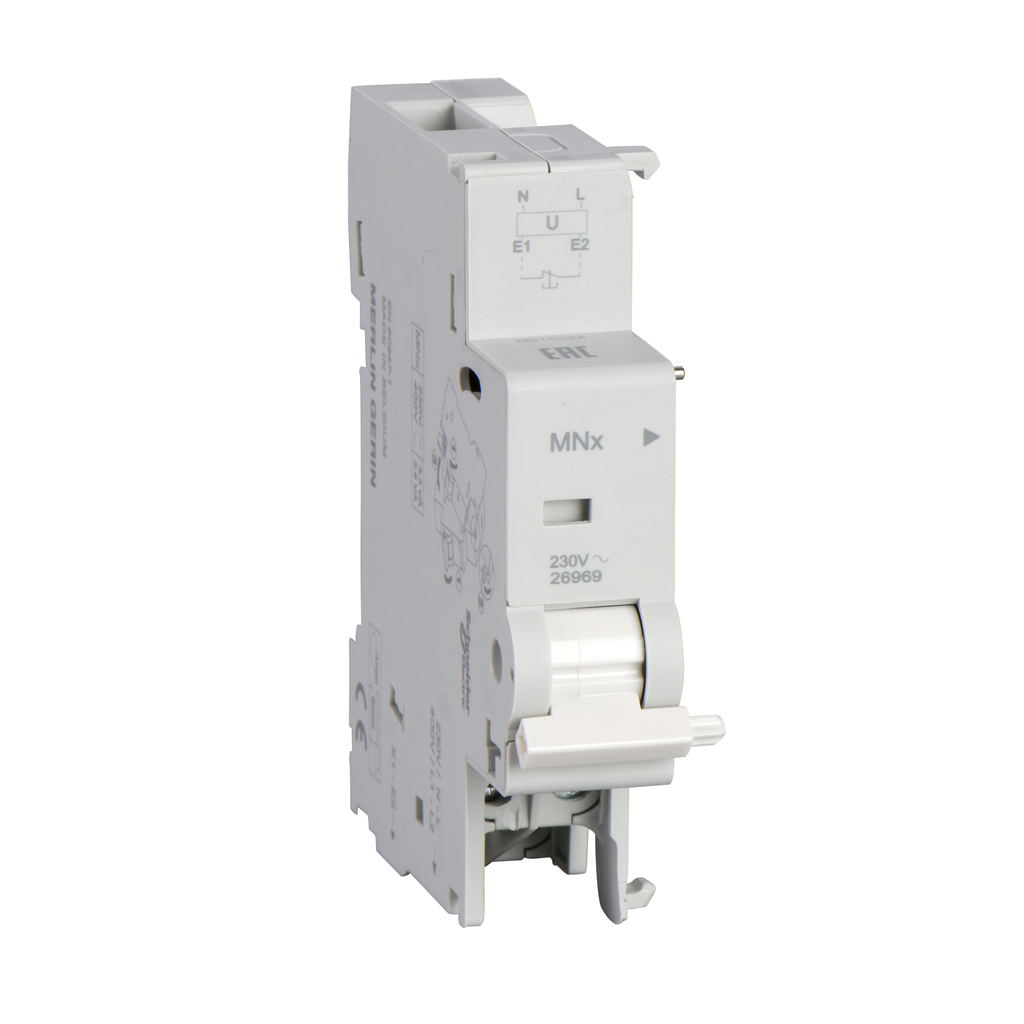

Multi9 - undervoltage release - MNx - 400 V AC
This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 400VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1305023 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1305023 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 82.5 mm |
| Mounting Support | DIN rail |
| Range Compatibility |
|
| Comb Busbar And Distribution Block Compatibility | top YES |
| Net Weight | 0.073 kg |
| Wire Stripping Length | 9 mm for bottom connection |
| Connections - Terminals |
|
| Mounting Mode | fixed |
| Local Signalling | action indicator |
| Width | 18 mm |
| Depth | 68 mm |
| Tightening Torque | 1-1 N.m bottom |
| Country of Origin | Belgium |
| Width | 18 mm |
| Height | 82.5 mm |
| Weight | 0.073 kg |
| [Uc] Control Circuit Voltage | 400 V AC 50/60 Hz |
| 9 Mm Pitches | 2 |
| Product Or Component Type | undervoltage release |
| Range | Multi9 |
| Control Type | with external feeding |
| Device Short Name | MNx |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Standards | EN/IEC 60947-1 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-85 °C |
