M9A26963

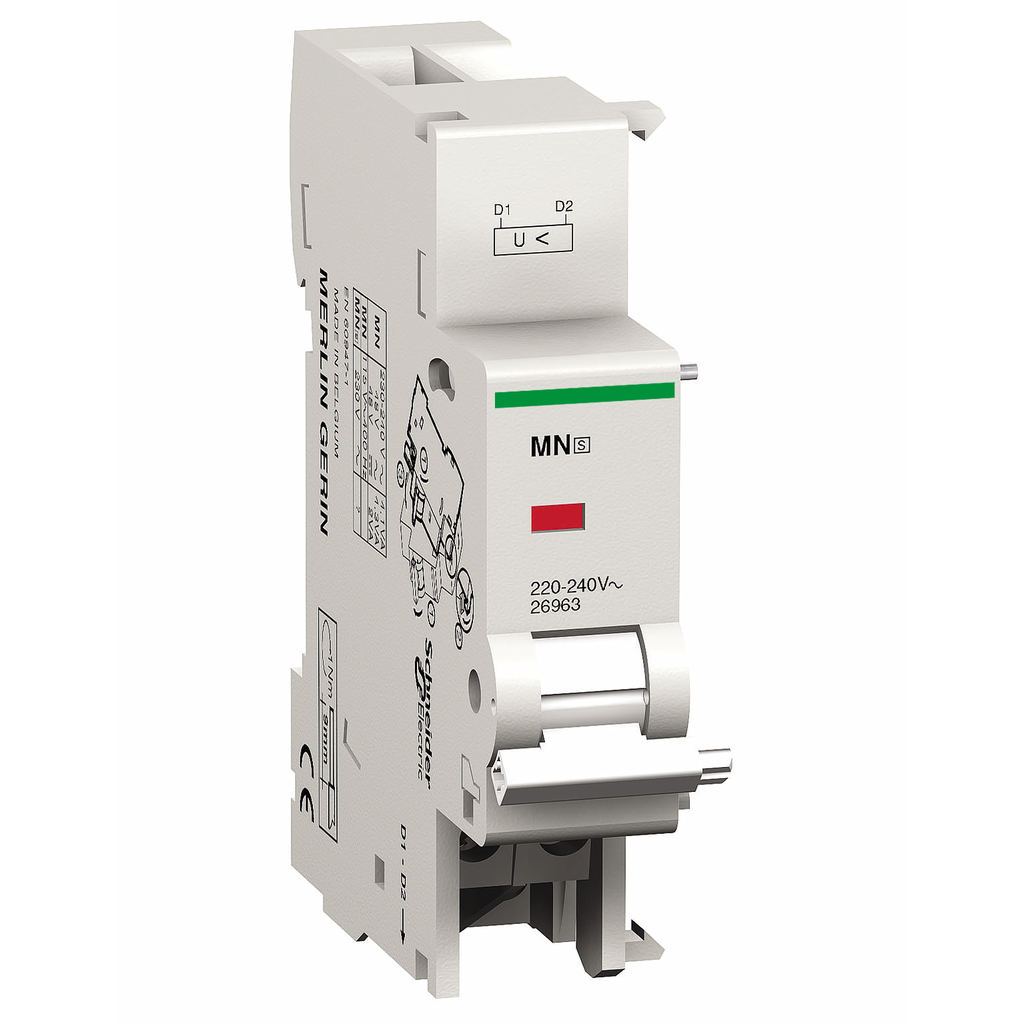

Multi9 - undervoltage release - MNs - 220/240 V AC
This Multi9 MNs electrical auxiliary is an undervoltage release device. It is dedicated to Multi9 GFP, C60 and C60H-DC. It prevents device closing again until its input voltage has been restored.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1305023 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1305023 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 82.5 mm |
| Mounting Support | DIN rail |
| Range Compatibility |
|
| Comb Busbar And Distribution Block Compatibility | top YES |
| Net Weight | 0.066 kg |
| Wire Stripping Length | 9 mm for bottom connection |
| Connections - Terminals |
|
| Mounting Mode | fixed |
| Local Signalling | action indicator |
| Width | 18 mm |
| Depth | 68 mm |
| Tightening Torque | 1-1 N.m bottom |
| Country of Origin | Belgium |
| Width | 18 mm |
| Height | 82.5 mm |
| Weight | 0.066 kg |
| [Uc] Control Circuit Voltage | 220...240 V AC 50/60 Hz |
| 9 Mm Pitches | 2 |
| Product Or Component Type | undervoltage release |
| Range | Multi9 |
| Control Type | delayed |
| Device Short Name | MNs |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Standards | EN/IEC 60947-1 |
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-85 °C |
