M9A26946
Multi9 - shunt trip release with OC - MX + OF - 110/415 V AC - 110/130 V DC

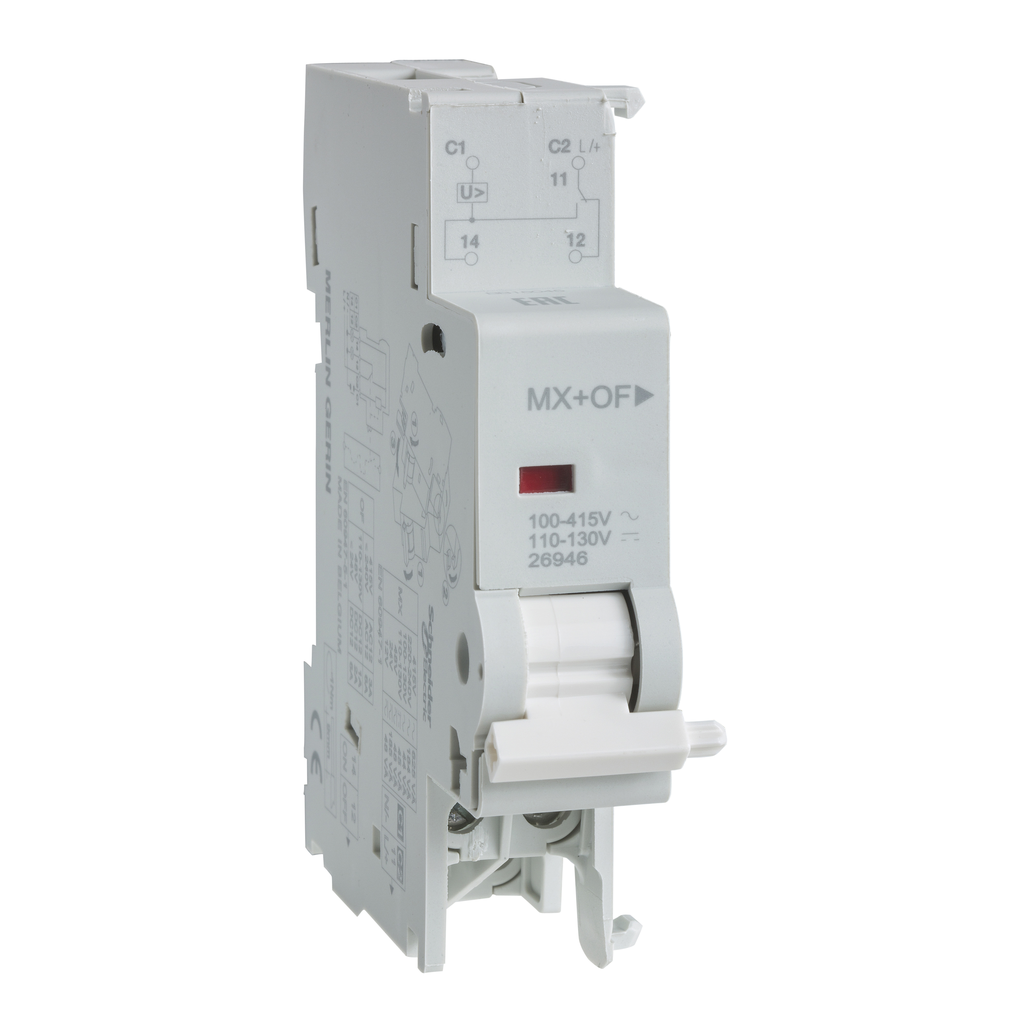

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1305024 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Width | 18 mm |
| Height | 82.5 mm |
| Weight | 0.065 kg |
| [Uc] Control Circuit Voltage |
|
| 9 Mm Pitches | 2 |
| Product Or Component Type | shunt trip release with OC contact |
| Range | Multi9 |
| Signal Contacts Composition | 1 C/O |
| Line Rated Current |
|
| Device Short Name | MX + OF |
| Height | 82.5 mm |
| Mounting Support | DIN rail |
| Range Compatibility |
|
| Comb Busbar And Distribution Block Compatibility | top YES |
| Net Weight | 0.065 kg |
| Wire Stripping Length | 9 mm for bottom connection |
| Connections - Terminals |
|
| Mounting Mode | fixed |
| Local Signalling | action indicator |
| Width | 18 mm |
| Depth | 68 mm |
| Tightening Torque | 1-1 N.m bottom |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Standards |
|
| Pollution Degree | 3 |
| Ambient Air Temperature For Storage | -40-85 °C |
