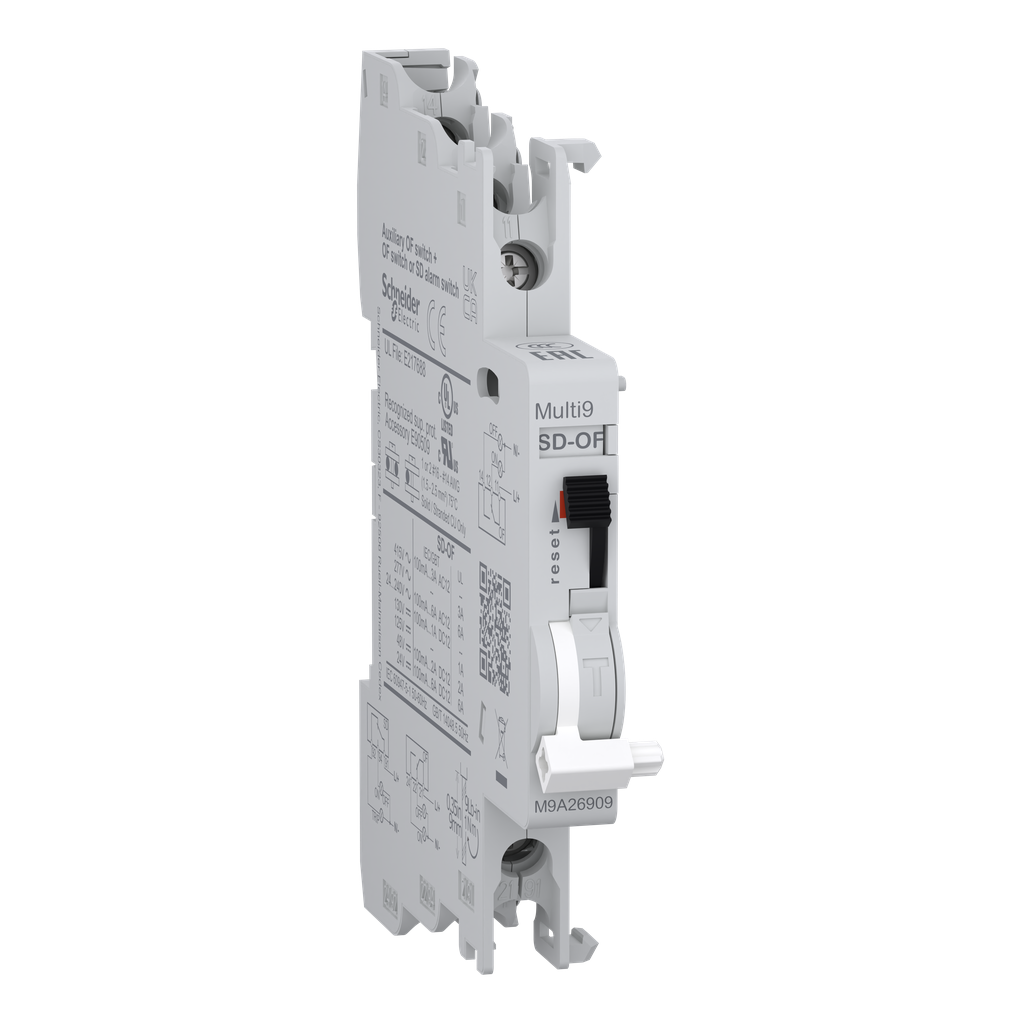

M9A26909 - Auxiliary contact, Multi9 M9A, OF/SD OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection

M9A26909

Auxiliary contact, Multi9 M9A, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection

Add to Quote Catalogue

Specifications

Product Certifications	CE UKCA UL
Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 1077 UL 489 C22.2 No. 5 C22.2 No. 235 EN 62019-2
Tropicalisation	2
Ip Degree Of Protection	IP20
Pollution Degree	3
Ambient Air Temperature For Storage	-40-85 °C
Quality Labels	EAC CCC
Height	90 mm
Mounting Support	DIN rail
Comb Busbar And Distribution Block Compatibility	NO
Connections - Terminals	screw clamp terminal top and bottom) 1 2.5-2.5 mm² - rigid screw clamp terminal top and bottom) 2 1.5-1.5 mm² - rigid
Net Weight	38 g
Mounting Location	left side of circuit-breaker
Wire Stripping Length	9 mm
[Ui] Rated Insulation Voltage	500 V
Mounting Mode	clip-on
Local Signalling	mechanical indicator
[Uimp] Rated Impulse Withstand Voltage	4 kV
Color	Gray
Width	9 mm
Depth	68 mm
Tightening Torque	1-1 N.m top and bottom
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2206016EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2206016
Eu Rohs Directive	Compliant
Country of Origin	Belgium
Width	9 mm
Height	90 mm
Weight	38 g
9 Mm Pitches	1
Product Or Component Type	double OC or fault contact
Range	Multi9
Signal Contacts Composition	2 C/O
Line Rated Current	0.1-6 A at 24...250 V, AC 50/60 Hz 0.1-6 A at 24...240 V, AC 50/60 Hz 0.1-6 A at 24 V, DC 0.1-2 A at 48 V, DC 0.1-1.5 A at 60 V, DC 0.1-1 A at 110 V, DC 0.1-1 A at 130 V, DC 0.1-3 A at 277 V, AC 50/60 Hz 0.1-3 A at 415 V, AC 50/60 Hz
Device Short Name	OF/SD+OF

Auxiliary contact, Multi9 M9A, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection
