Home > Schneider Electric > Contactors and Protection Relays > Contactors & Reversing Contactors > TeSys H Compact Motor Starter > LZ7H2X4BD – Ultra compact starter, TeSys Hybrid, Safe Torque Off, 3P, 500VAC, 0.75kW at 400V, 24VDC, Safe Torque Off

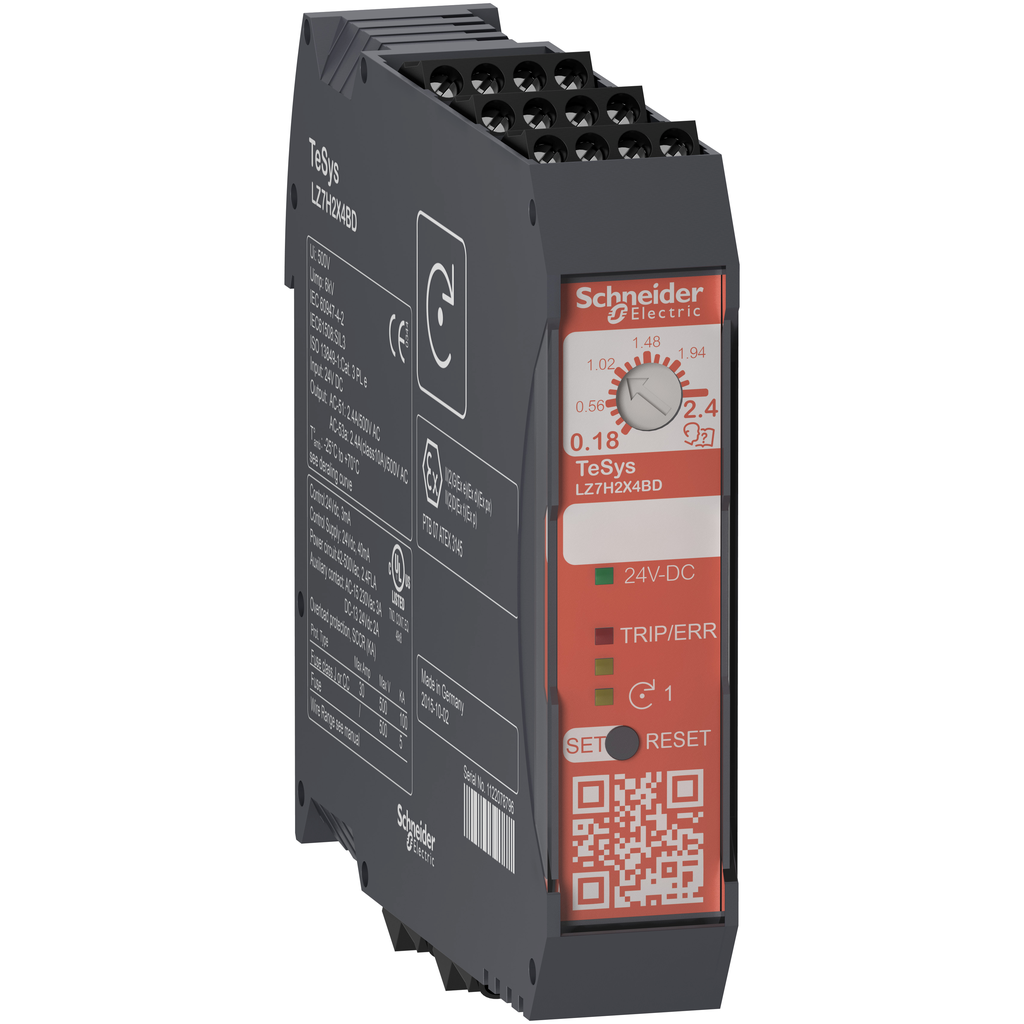

LZ7H2X4BD – Ultra compact starter, TeSys Hybrid, Safe Torque Off, 3P, 500VAC, 0.75kW at 400V, 24VDC, Safe Torque Off
LZ7H2X4BD
Ultra compact starter, TeSys Hybrid, Safe Torque Off, 3P, 500VAC, 0.75kW at 400V, 24VDC, Safe Torque Off

TeSys H ultra compact direct safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -25-70 °C without derating
Ambient Air Temperature For Storage -40-80 °C
Protective Treatment TC
Ip Degree Of Protection IP20
Height 99 mm
Reset
  • manual
  • electrical reset
Standards
  • IEC 60947-4-2
  • UL 60947-4-1
Mounting Support DIN rail
Pollution Degree 2
Net Weight 212 g
[Uimp] Rated Impulse Withstand Voltage 6 kV
Connections - Terminals
  • screw clamp terminals 1 0.2-2.5 mm² rigid
  • screw clamp terminals 1 0.25-2.5 mm² flexible - with cable end
  • screw clamp terminals 1 0.2-2.5 mm² flexible - without cable end
Current Consumption <= 40 mA 24 V DC
[Ui] Rated Insulation Voltage 500 V AC 50/60 Hz
Mounting Mode by clips
Maximum Operating Rate
  • 120 cyc/mn AC-51 50 %
  • 6 cyc/mn AC-53A 50 %
Auxiliary Contact Composition 1 C/O fault signalling
Control Circuit Voltage Limits 19.2...30 V DC
Certifications
  • CE
  • cULus
  • ATEX as associated device for motor protection in zones 1 and 21
Width 22.5 mm
Tightening Torque 0.5-0.6 N.m flat Ø 2.5 mm 3 mm
Depth 114.5 mm
Electrical Durability 30 Mcycles
Country of Origin Germany
Width 22.5 mm
Height 99 mm
Weight 212 g
[Uc] Control Circuit Voltage 24 V DC
[Ue] Rated Operational Voltage 500 V AC
Thermal Protection Adjustment Range 0.18-2.4 A
Product Or Component Type ultra-compact starter
Product Name TeSys Hybrid
Thermal Overload Class class 10A IEC 60947-4-2
Motor Power Kw
  • 0.37 kW 220 V AC 0.65
  • 0.37 kW 230 V AC 0.65
  • 0.75 kW 380 V AC 0.65
  • 0.75 kW 400 V AC 0.65
  • 0.75 kW 415 V AC 0.65
  • 0.75 kW 440 V AC 0.65
  • 1.1 kW 500 V AC 0.65
Range TeSys
Motor Starter Type direct on line
[Ie] Rated Operational Current
  • 2.4 A 500 V AC-51
  • 2.4 A 500 V AC-53A
  • 2.4 A 500 V AC-51 mounting side by side
  • 2.4 A 500 V AC-53A mounting side by side
Poles Description 3P
Safety Reliability Data
  • MTTFd = 517 years stop function
  • SFF = 99 % stop function
  • SFF = 99 % motor protection
  • MTTFd = 447 years motor protection
  • PFHd = 2.40E-9 1/h stop function
Maximum Horse Power Rating
  • 0.5 hp 200 V AC
  • 0.5 hp 230 V AC
  • 1 hp 460 V AC
Device Short Name LZ7H
Safety Level
  • SIL 3 IEC 61508-1 stop function
  • PL = e ISO 13849-1 stop function
  • SIL 2 IEC 61508-1 motor protection
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Compliant
