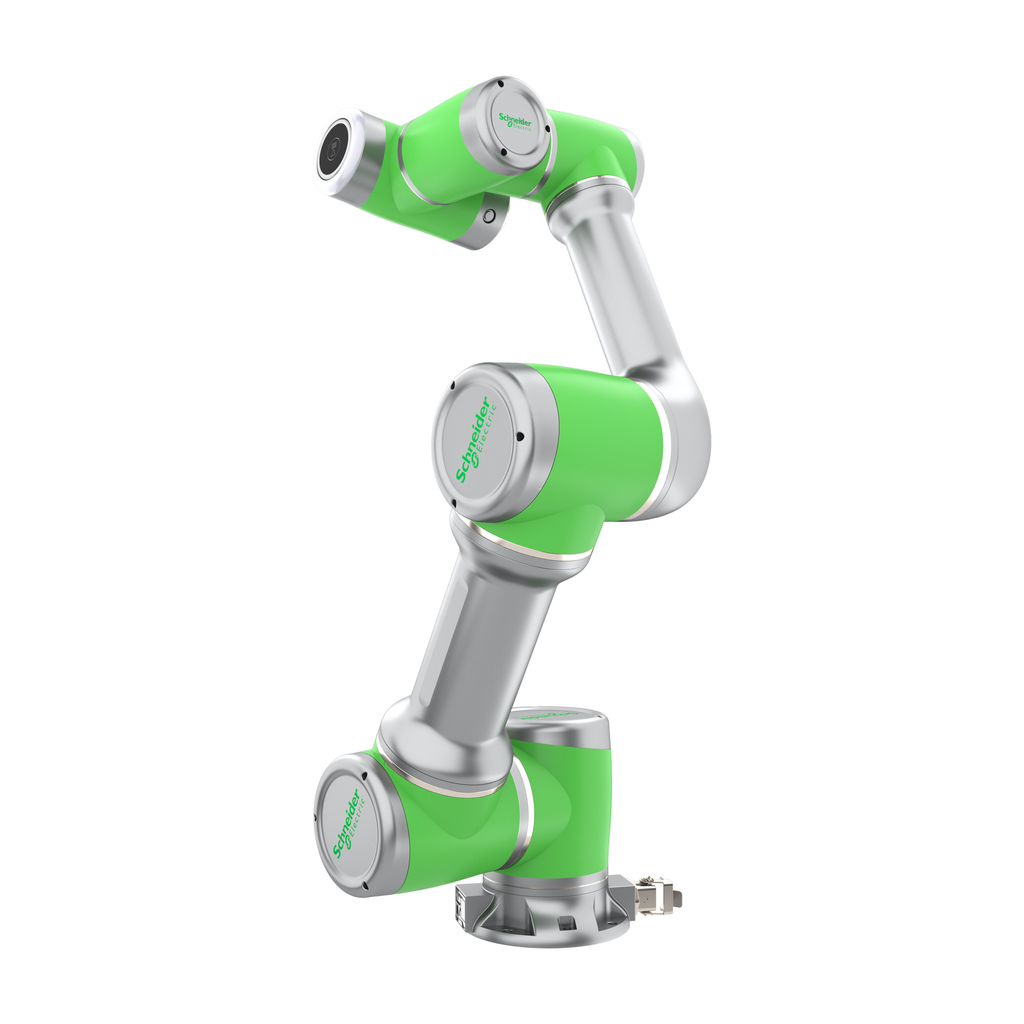

LXMRL07S0000 - collaborative robot, Lexium Cobot, maximum payload 7kg

LXMRL07S0000

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2209025EN
Sustainable Offer Status	Green Premium product
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI2209025EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Screw Type	M8
Diameter	158 mm
Digital Output Number	2
Cable Length	6 m
Power Consumption In W	350 W
Marking	CE KC TÜV
Material	aluminium
Net Weight	22 kg
Analogue Input Number	1
Digital Input Number	2
Angular Speed	180°/s joint 1 +/- 360° 180°/s joint 2 -85, +265° 180°/s joint 3 +/- 175° 180°/s joint 4 -85, +265° 180°/s joint 5 +/- 360° 180°/s joint 6 +/- 360°
Mounting Position	any position
Rated Voltage	24 V
Country of Origin	China
Length	6 m
Weight	22 kg
Operating Finger Radius	819 mm
Accuracy	+/- 0.02 mm
Range Of Product	Lexium Cobot
Product Or Component Type	collaborative robot
Connectivity To Devices	ipad ios app android app
Technology Type	graphical drag & drop
Maximum Load	7 kg
Number Of Axis	6
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP54
