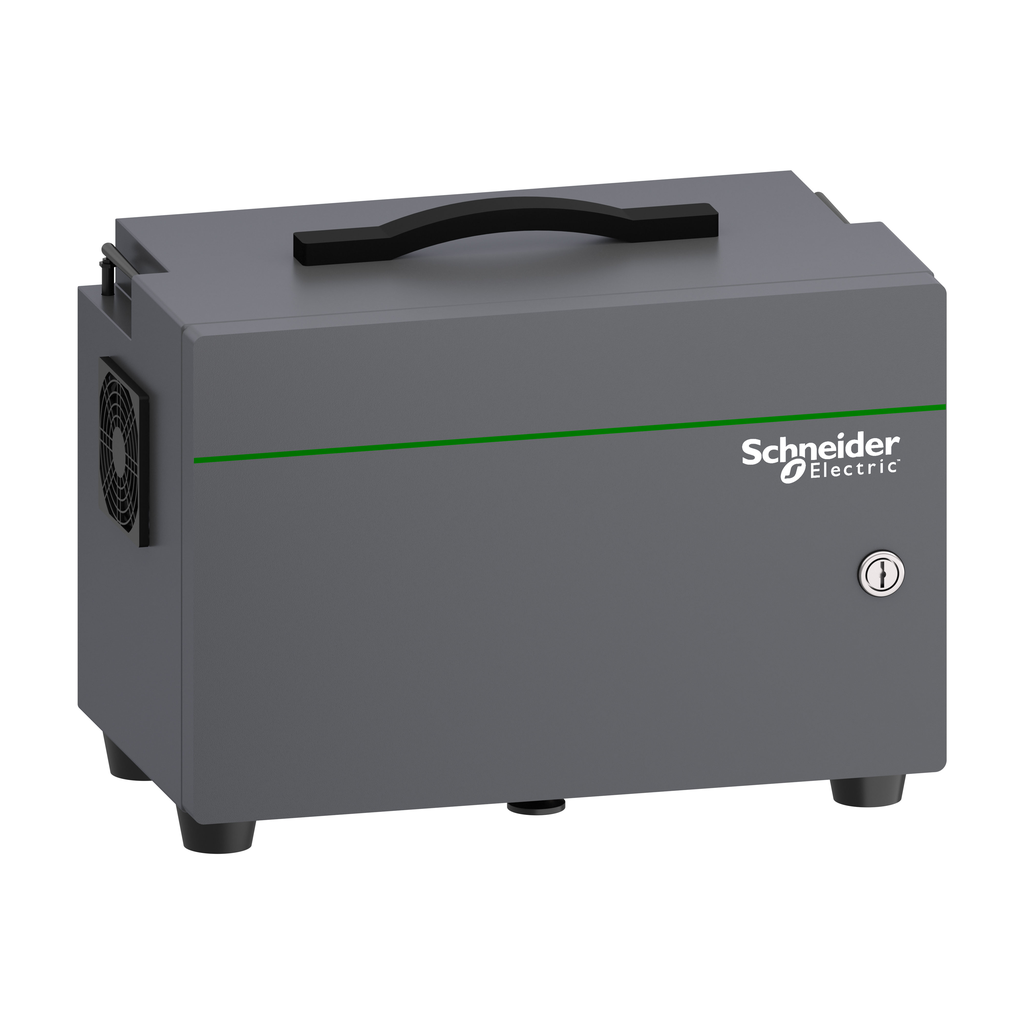

LXMRL07C1000
controller, Lexium Cobot, for 5 and 7 kg payload robot
Specifications
| Height | 307 mm |
|---|---|
| Marking |
|
| Material | stainless steel |
| Net Weight | 12 kg |
| Input Voltage | 100...240 V AC 50/60 Hz |
| Rated Voltage | 24 V DC |
| Communication Interface |
|
| Width | 410 mm |
| Depth | 235 mm |
| Ip Degree Of Protection | IP44 |
| Country of Origin | China |
| Width | 410 mm |
| Height | 307 mm |
| Weight | 12 kg |
| Range Of Product | Lexium Cobot |
| Product Or Component Type | robot controller |
| Analogue Input Number | 2 |
| Discrete Output Number | 16 |
| Analogue Output Number | 2 |
| Discrete Input Number | 16 |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2209023EN |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2209023EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Lexium Cobot, Instruction Sheet - GEX5812401_03_Cobot_IS_web (pdf)
- Lexium Cobot, Instruction sheet (English) - BQT4587501_00 (pdf)
- Spec Sheet
- Lexium Cobot Collaborative robot - Catalog+Lexium+Cobot_Collaborative+robot_July+2023 (pdf)
- Automation Products: Section 23 - Digest 179 (2024) - Automation-Products-Digest-Catalog-0100CT2401-SEC-23 (pdf)
