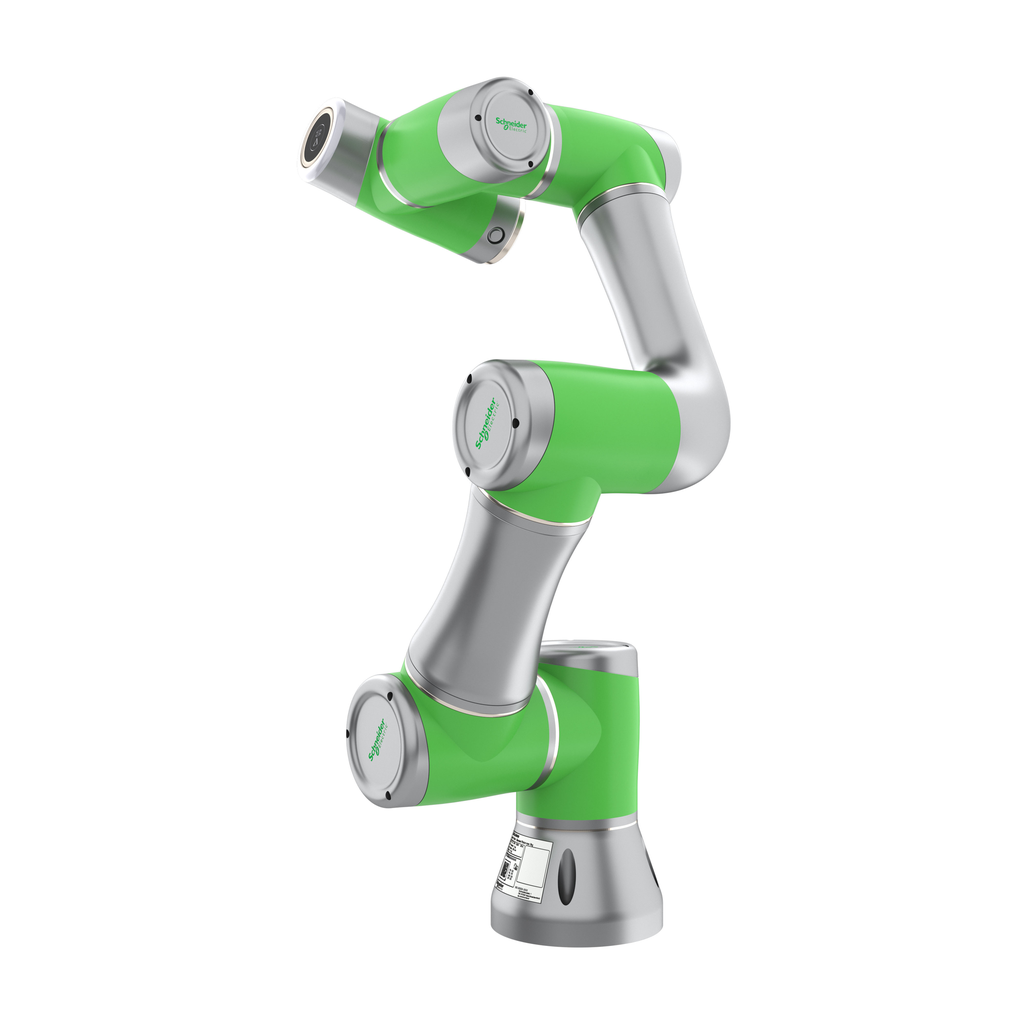

LXMRL03S0000 - collaborative robot, Lexium Cobot, maximum payload 3kg

LXMRL03S0000

Add to Quote Catalogue

Country of Origin	China
Length	6 m
Weight	12 kg
Operating Finger Radius	626 mm
Accuracy	+/- 0.02 mm
Range Of Product	Lexium Cobot
Product Or Component Type	collaborative robot
Connectivity To Devices	ipad ios app android app
Technology Type	graphical drag & drop
Maximum Load	3 kg
Number Of Axis	6
Screw Type	M8
Diameter	129 mm
Digital Output Number	2
Cable Length	6 m
Power Consumption In W	150 W
Marking	CE KC TÜV
Material	aluminium
Net Weight	12 kg
Analogue Input Number	1
Digital Input Number	2
Angular Speed	180°/s joint 1 +/- 360° 180°/s joint 2 -85, +265° 180°/s joint 3 +/- 175° 220°/s joint 4 -85, +265° 220°/s joint 5 +/- 360° 220°/s joint 6 +/- 360°
Mounting Position	any position
Rated Voltage	24 V
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2209025EN
Sustainable Offer Status	Green Premium product
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI2209025EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP54
