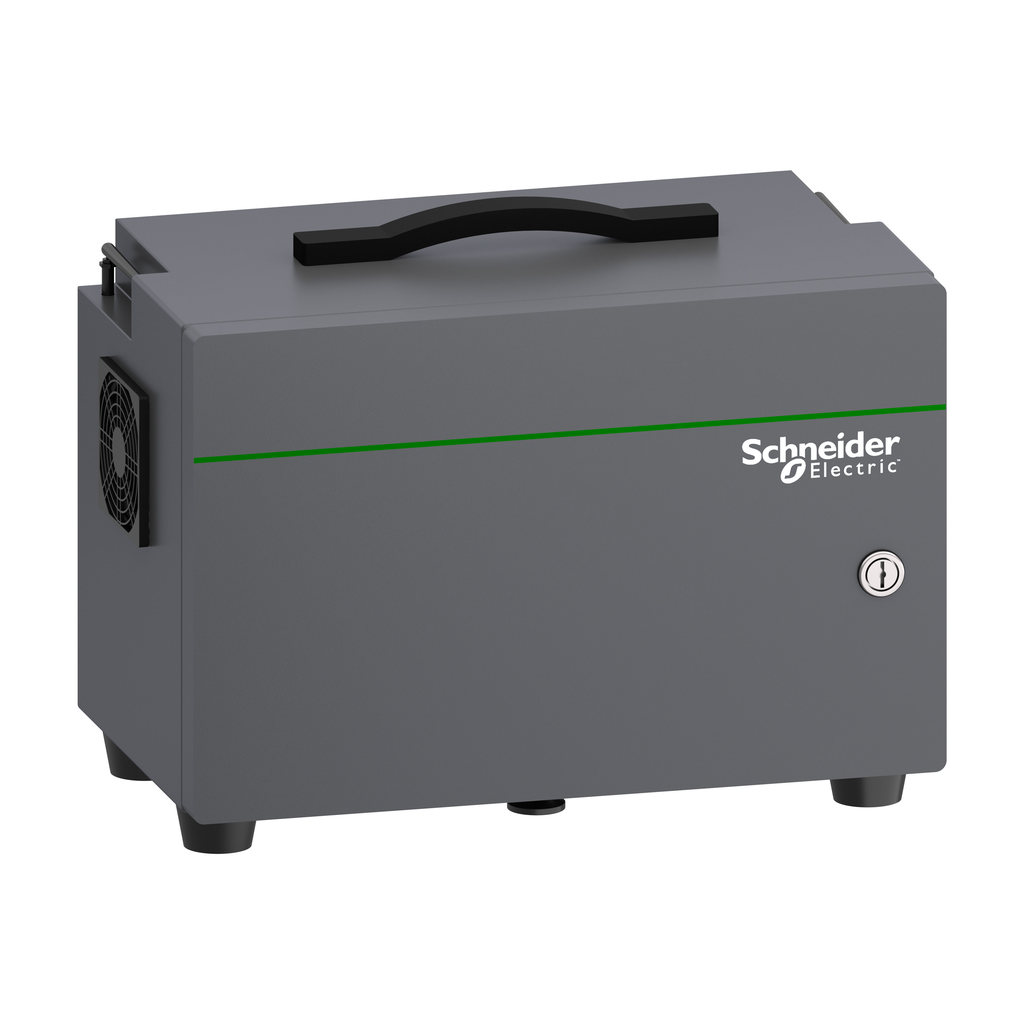

LXMRL03C1000
controller, Lexium Cobot, for 3 kg payload robot
Specifications
| Height | 307 mm |
|---|---|
| Marking |
|
| Material | stainless steel |
| Net Weight | 12 kg |
| Input Voltage | 100...240 V AC 50/60 Hz |
| Rated Voltage | 24 V DC |
| Communication Interface |
|
| Width | 410 mm |
| Depth | 235 mm |
| Ip Degree Of Protection | IP44 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2209023EN |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2209023EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | China |
| Width | 410 mm |
| Height | 307 mm |
| Weight | 12 kg |
| Range Of Product | Lexium Cobot |
| Product Or Component Type | robot controller |
| Analogue Input Number | 2 |
| Discrete Output Number | 16 |
| Analogue Output Number | 2 |
| Discrete Input Number | 16 |
| Product Compatibility | 3 kg payload robot cobot |
