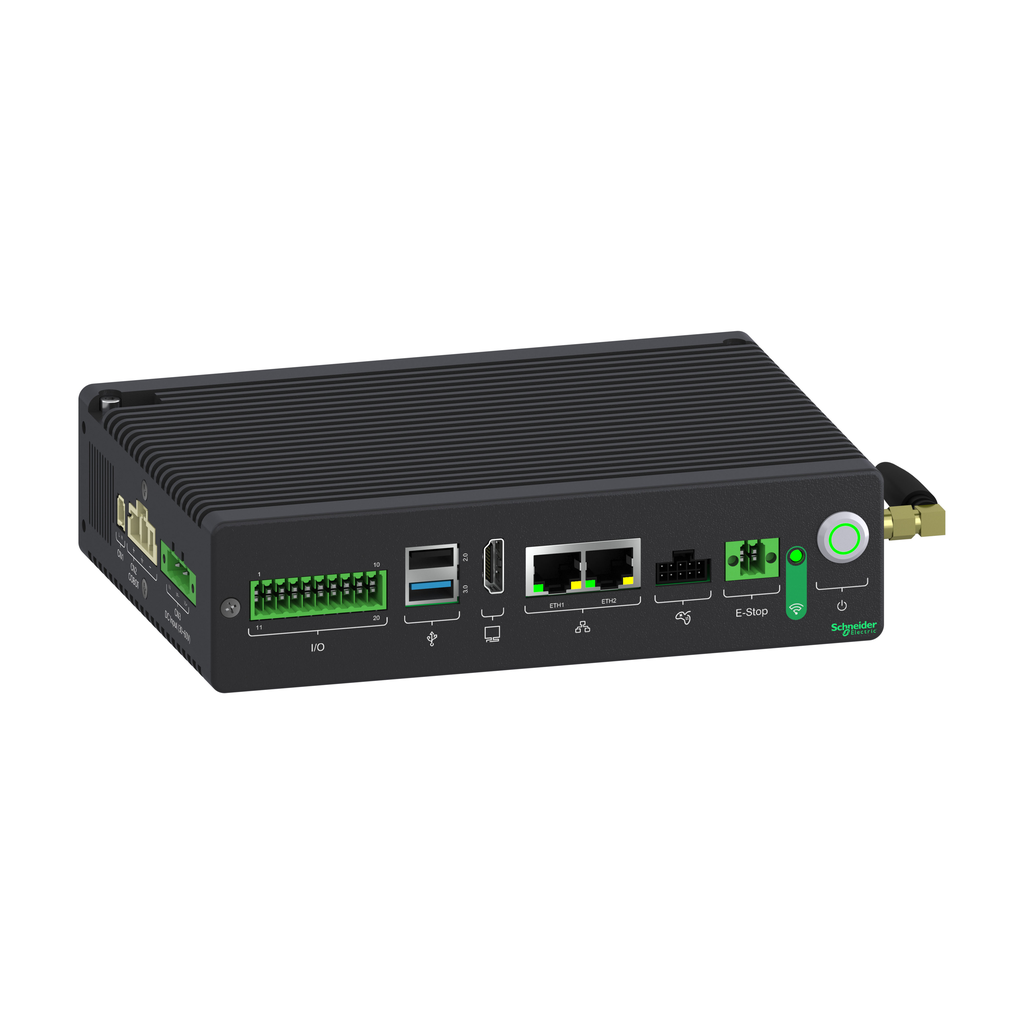

LXMRL00C2000
compact controller, Lexium Cobot
Specifications
| Height | 47 mm |
|---|---|
| Output Current | <= 40 A |
| Marking |
|
| Length | 180 mm |
| Material |
|
| Net Weight | 1.1 kg |
| Input Voltage | 30...60 V DC |
| Rated Voltage | 24 V DC |
| Mounting Mode | panel mounting |
| Communication Interface |
|
| Width | 128 mm |
| Ip Degree Of Protection | IP20 |
| Country of Origin | China |
| Length | 180 mm |
| Width | 128 mm |
| Height | 47 mm |
| Weight | 1.1 kg |
| Range Of Product | Lexium Cobot |
| Product Or Component Type | robot controller |
| Discrete Output Number | 7 |
| Discrete Input Number | 7 |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2405020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2405020EN |
| Eu Rohs Directive | Compliant with Exemptions |
