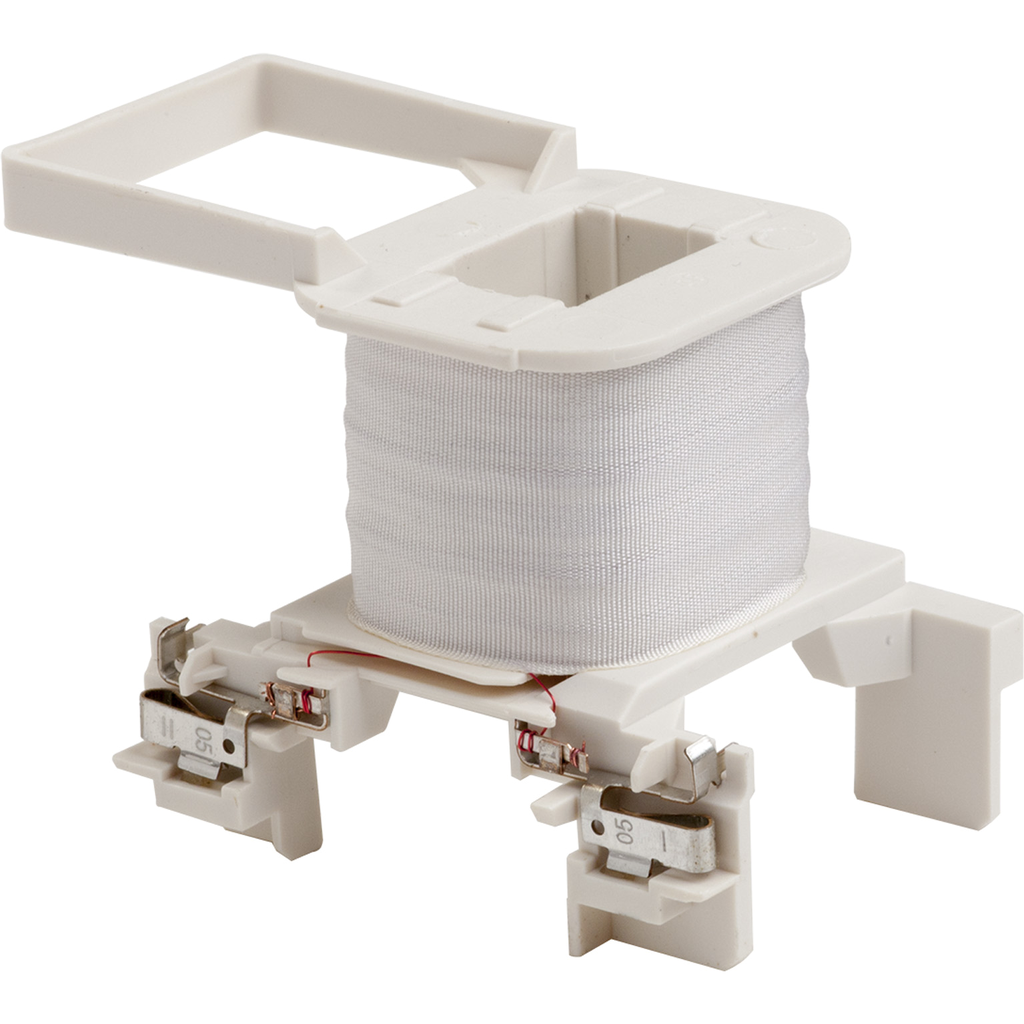

LXD3M7 - Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40â€¦65A contactor

LXD3M7

Add to Quote Catalogue

Ambient Air Temperature For Operation	-5-60 °C
Net Weight	0.07 kg
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush Power In Va	160-160 VA 60 Hz cos phi 0.75 (at 20 °C) 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
Coil Technology	without built-in suppressor module
Hold-In Power Consumption In Va	15-15 VA 60 Hz cos phi 0.3 (at 20 °C) 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat Dissipation	4-5 W 50/60 Hz
Country of Origin	France
Weight	0.07 kg
Average Resistance	182 Ohm 20 °C
[Uc] Control Circuit Voltage	220 V AC 50/60 Hz
Control Circuit Type	AC 50/60 Hz
Product Or Component Type	contactor coil
Range	TeSys
Inductance Of Closed Circuit	10 H
Maximum Operating Rate	3600 cyc/h 60 °C
Mechanical Durability	6 Mcycles
Product Compatibility	LC1D40A...D65A LC1DT80A LC1DT60A
Device Short Name	LXD3
