LXD1G7 - TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 120 VAC 50/60 Hz coil

LXD1G7

TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 120 VAC 50/60 Hz coil

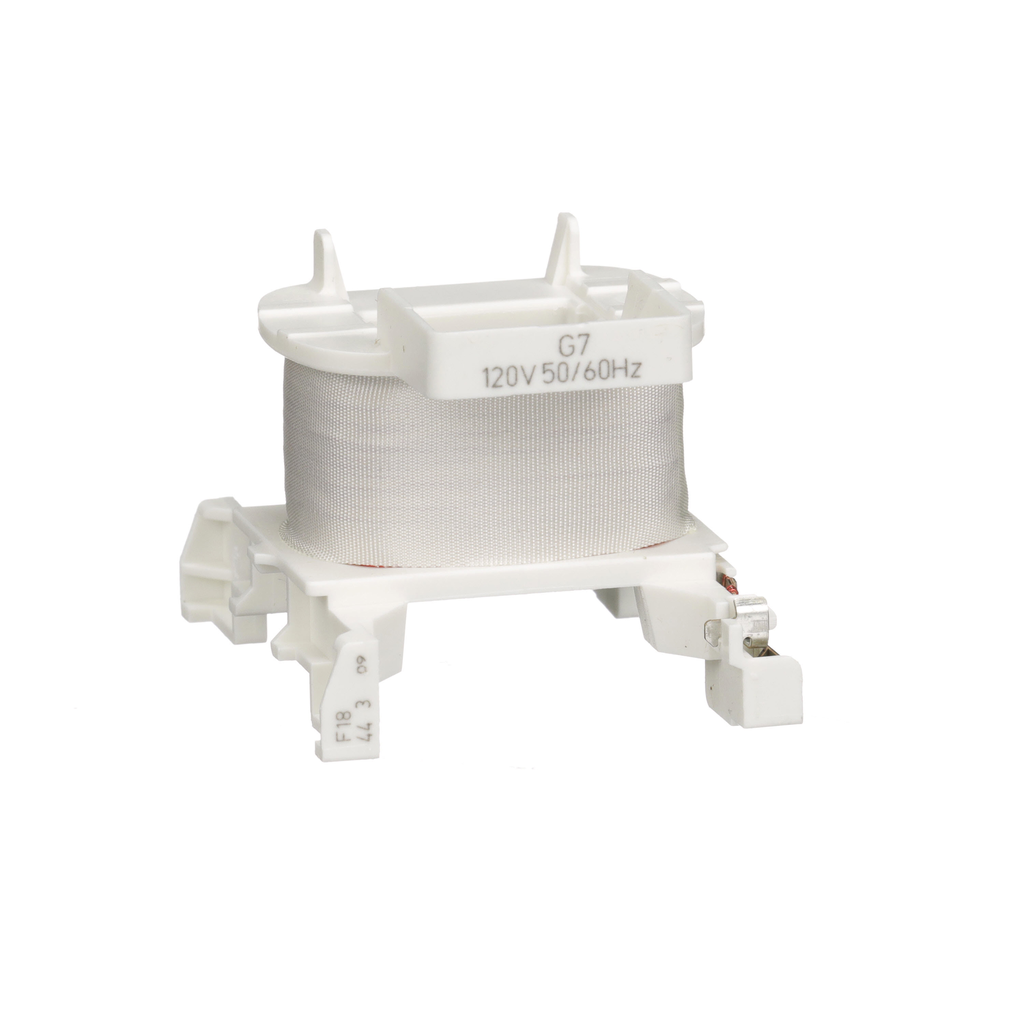

TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 120 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-5-60 °C
Net Weight	0.07 kg
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C) 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Coil Technology	without built-in suppressor module
Hold-In Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat Dissipation	2-3 W 50/60 Hz
Country of Origin	France
Weight	0.07 kg
Average Resistance	150.6 Ohm 20 °C
[Uc] Control Circuit Voltage	120 V AC 50/60 Hz
Control Circuit Type	AC 50/60 Hz
Product Or Component Type	contactor coil
Range	TeSys
Inductance Of Closed Circuit	5.4 H
Maximum Operating Rate	3600 cyc/h 60 °C
Mechanical Durability	15 Mcycles
Product Compatibility	LC1D09...D38 CAD LC1DT20...DT40
Device Short Name	LXD1
