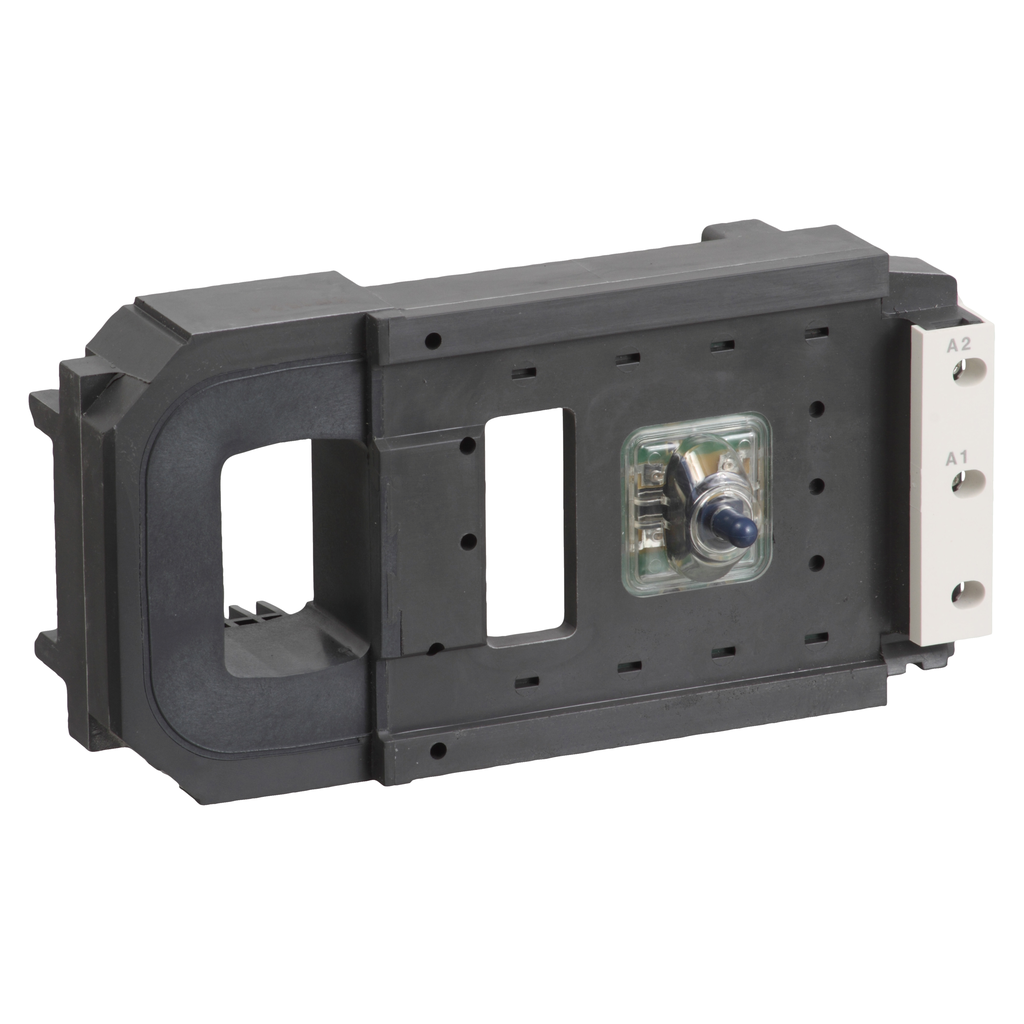

LX9FL931
TeSys F - specific contactor coil - 220 V DC low consumption
TeSys F AC coil 220/230/240V 40-400Hz (voltage code M7/P7/U7), low inrush consumption, short operating times, for TeSys F 3-pole and 4-pole contactors LC1 F630, FG630. To be associated with a rectifier DR5TF4U (to be ordered separately). It operates in the voltage limits 0.85-1.1 Uc and environments until 70°C. It provides to the contactor high operating rates until 3600 cycles/hour. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -5-55 °C |
|---|---|
| Net Weight | 1.45 kg |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Control Circuit Voltage Limits |
|
| Hold-In Power Consumption In W | 48-48 W 20 °C |
| Coil Technology | without built-in suppressor module |
| Inrush Power In W | 733-733 W 20 °C) |
| Heat Dissipation | 22.8-27.8 W |
| Country of Origin | Czechia |
| Weight | 1.45 kg |
| Average Resistance |
|
| [Uc] Control Circuit Voltage | 220...240 V DC |
| Control Circuit Type |
|
| Range Compatibility |
|
| Product Or Component Type | specific contactor coil |
| Range | TeSys |
| Inductance Of Closed Circuit | 3.6 H |
| Maximum Operating Rate | 1800 cyc/h 70 °C |
| Operating Time |
|
| Product Compatibility |
|
| Device Short Name | LX9FL |
| Mechanical Durability | 5 Mcycles |
