LX9FJ925

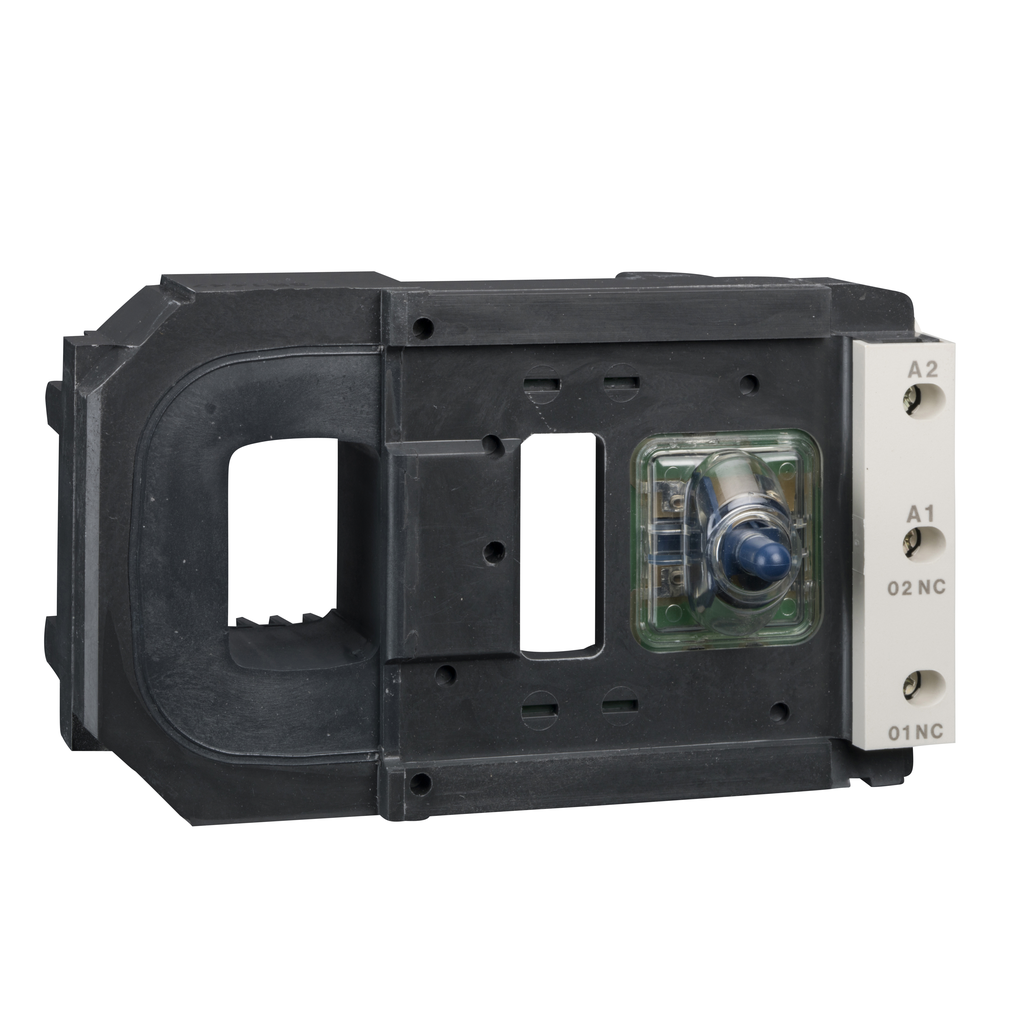

TeSys F - specific contactor coil - 110 V AC 40...400 Hz low consumption
TeSys F AC coil 110V 40-400Hz (voltage code F7), low inrush consumption, short operating times, for TeSys F 3-pole and 4-pole contactors LC1 F400, FG400. To be associated with a rectifier DR5TF4U (to be ordered separately). It operates in the voltage limits 0.85-1.1 Uc and environments until 70°C. It provides to the contactor high operating rates until 3600 cycles/hour. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -5-55 °C |
|---|---|
| Net Weight | 0.97 kg |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Control Circuit Voltage Limits |
|
| Hold-In Power Consumption In W | 22-22 W 20 °C |
| Inrush Power In Va | 500-500 VA 40...400 Hz (at 20 °C) |
| Coil Technology | without built-in suppressor module |
| Hold-In Power Consumption In Va | 23-23 VA 40...400 Hz (at 20 °C) |
| Heat Dissipation | 11.4-13.9 W |
| Country of Origin | Czechia |
| Weight | 0.97 kg |
| Average Resistance |
|
| [Uc] Control Circuit Voltage |
|
| Control Circuit Type |
|
| Range Compatibility |
|
| Product Or Component Type | specific contactor coil |
| Range | TeSys |
| Inductance Of Closed Circuit | 1.3 H |
| Maximum Operating Rate | 3600 cyc/h 70 °C |
| Operating Time |
|
| Product Compatibility |
|
| Device Short Name | LX9FJ |
| Mechanical Durability | 10 Mcycles |
