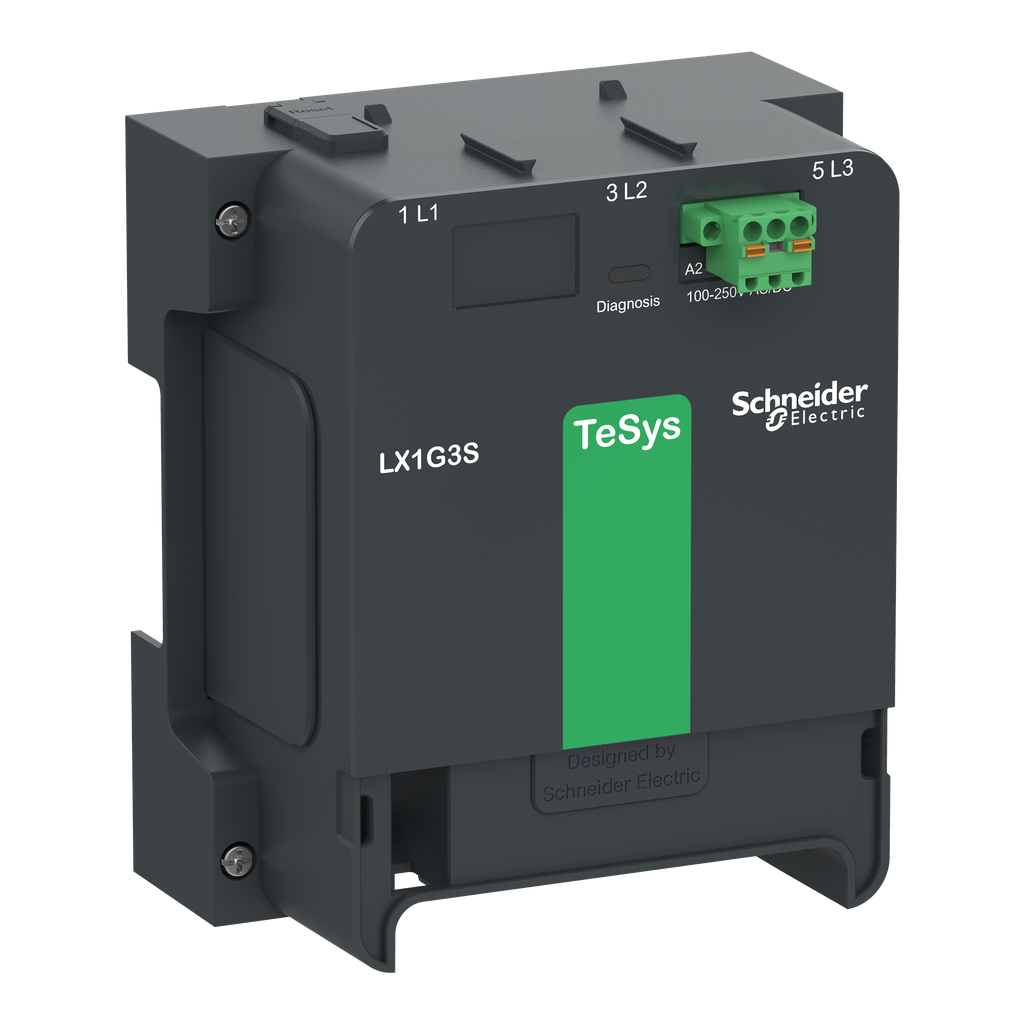

LX1G3SLSEN - Control module, TeSys Giga, 200-500V AC/DC, for LC1G400-500/3P standard version

LX1G3SLSEN

Control module, TeSys Giga, 200-500V AC/DC, for LC1G400-500/3P standard version

Add to Quote Catalogue

Specifications

Country of Origin	China
Width	140.0 mm
Height	167.0 mm
[Uc] Control Circuit Voltage	200...500 V AC/DC 50/60 Hz
Range Compatibility	TeSys G LX1G contactor coil
Product Or Component Type	contactor coil
Range	TeSys
Maximum Operating Rate	600 cyc/mn 60 °C
Poles Description	3P
Operating Time	20...35 ms opening 40...55 ms closing
Product Compatibility	LC1G400...500
Device Short Name	LX1G
Mechanical Durability	5 Mcycles
Ambient Air Temperature For Operation	-25-60 °C
Height	167.0 mm
Standards	EN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1
Electromagnetic Compatibility	EMC immunity conforming to IEC 60947-4-1 emission tests criteria A conforming to IEC 60947-4-1 immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 voltage dips and interruptions immunity test conforming to SEMI F47
Ip Degree Of Protection	IP20 IEC 60529
Pollution Degree	3 IEC 60947-1
Ambient Air Temperature For Storage	-60-80 °C
Operating Altitude	9842.52 ft (3000 m) without derating 5000 m with derating factor
Quantity Per Set	1
Width	140.0 mm
Depth	93.0 mm
Permissible Ambient Air Temperature Around The Device	-40-70 °C at Uc
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2105013
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI2105013
Eu Rohs Directive	Compliant with Exemptions
Control Circuit Voltage Limits	operational 0.8...1.1 Uc 60 °C) drop-out 0...0.45 Uc 60 °C)
Hold-In Power Consumption In W	8.6-8.6 W
Inrush Power In Va	535-535 VA
Connections - Terminals	control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 control circuit push-in termination 2 0.5-1.0 mm² rigid or stranded with cable end sleeve AWG 20...AWG 18
Coil Technology	built-in bidirectional peak limiting
Hold-In Power Consumption In Va	15.4-15.4 VA
Inrush Power In W	300 W
