LVCT02404S

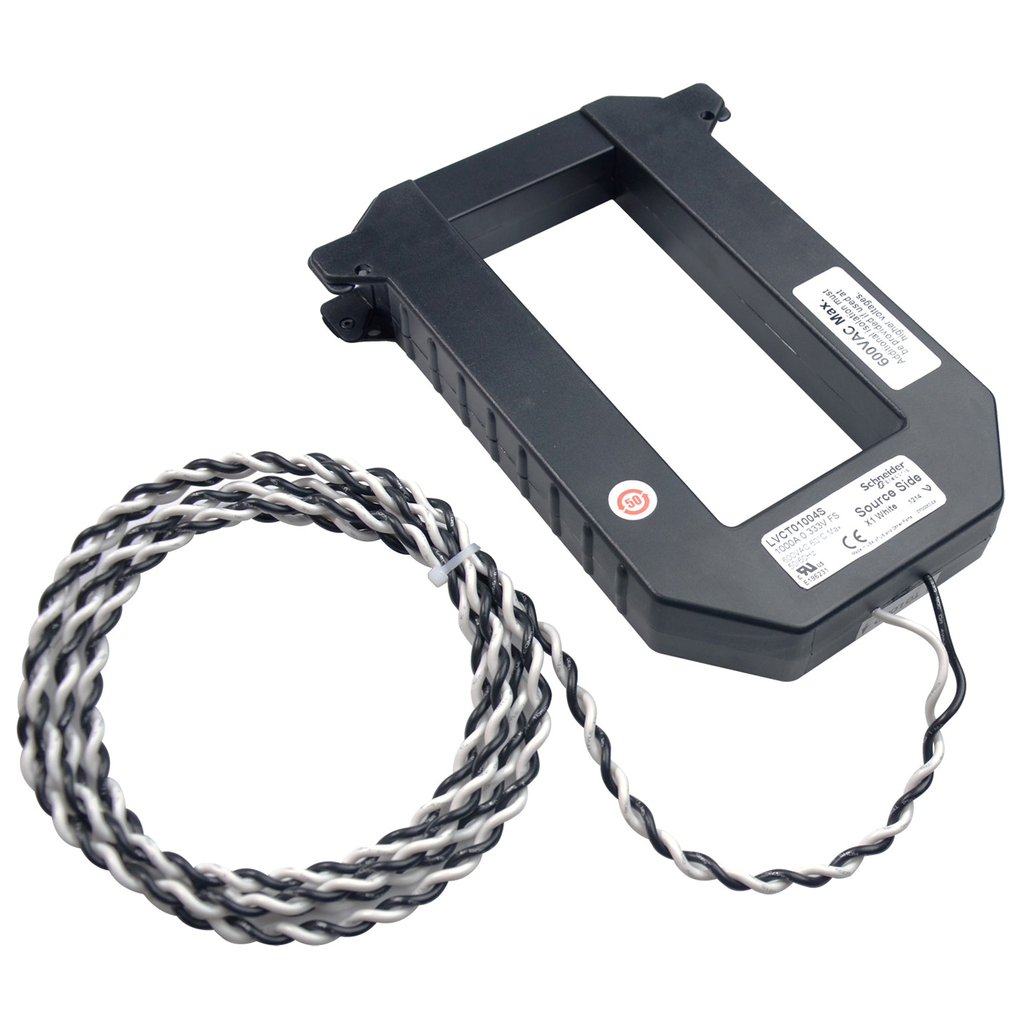

LV CT 2400 A - 0.333 V output - split core CT - 62 mm x 201 mm
This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 2400A circuit. 0.333 V output, size 4. Split core opening is 62 mm x 201 mm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Product Destination |
|
| Electrical Connection | cable 1.8 m AWG 18) 600 V |
| Accessory / Separate Part Category | measurement accessory |
| Product Or Component Type | current transformer |
| Range | PowerLogic |
| Output Voltage | 0.333 V |
| Line Rated Current | 2400 A |
| Current Transformer Type | split core balance |
| Device Short Name | LVCT |
| Warranty | 18 months |
| Range Compatibility |
|
| Measurement Accuracy | 1 % 10...100 % |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -15-60 °C |
| Net Weight | 0.87 kg |
| Depth | 30 mm |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % |
| Width |
|
| Height |
|
