Embedded Ethernet interface EIFE, MasterPact MTZ1/MTZ2/MTZ3 drawout, spare part

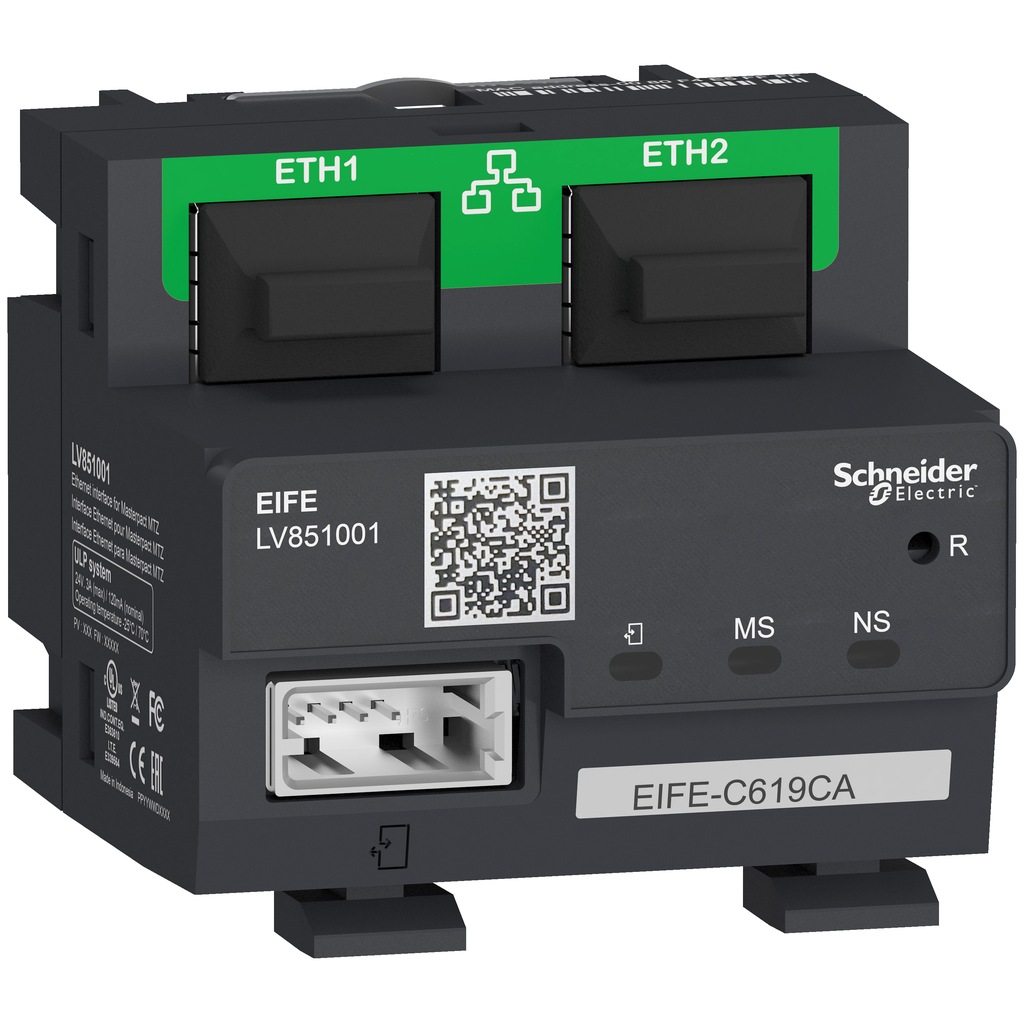

This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ. The EIFE is mounted on MasterPact MTZ chassis DIN rail, and is connected to the ULP port by an ULP cable (not supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -20-70 °C |
|---|---|
| Ip Degree Of Protection | IP30 |
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305013EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2305013EN |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Height | 51 mm |
| Standards |
|
| Provided Equipment | 1 instruction sheet |
| Localisation On Device | chassis |
| Mounting Support | DIN rail |
| Offer Type | spare part |
| Power Consumption In W | 72 W |
| Net Weight | 0.075 kg |
| Communication Network Type |
|
| Mounting Mode | drawout |
| Maximum Supply Current | 3 A |
| Communication Gateway | Ethernet TCP/IP to Modbus |
| Width | 51 mm |
| Depth | 52.5 mm |
| Web Server | embedded |
| Country of Origin | France |
| Width | 51 mm |
| Height | 51 mm |
| Weight | 0.075 kg |
| Device Mounting | embedded |
| Range Compatibility |
|
| Product Or Component Type | Ethernet interface module |
| Range | MasterPact |
| Device Application | communication |
