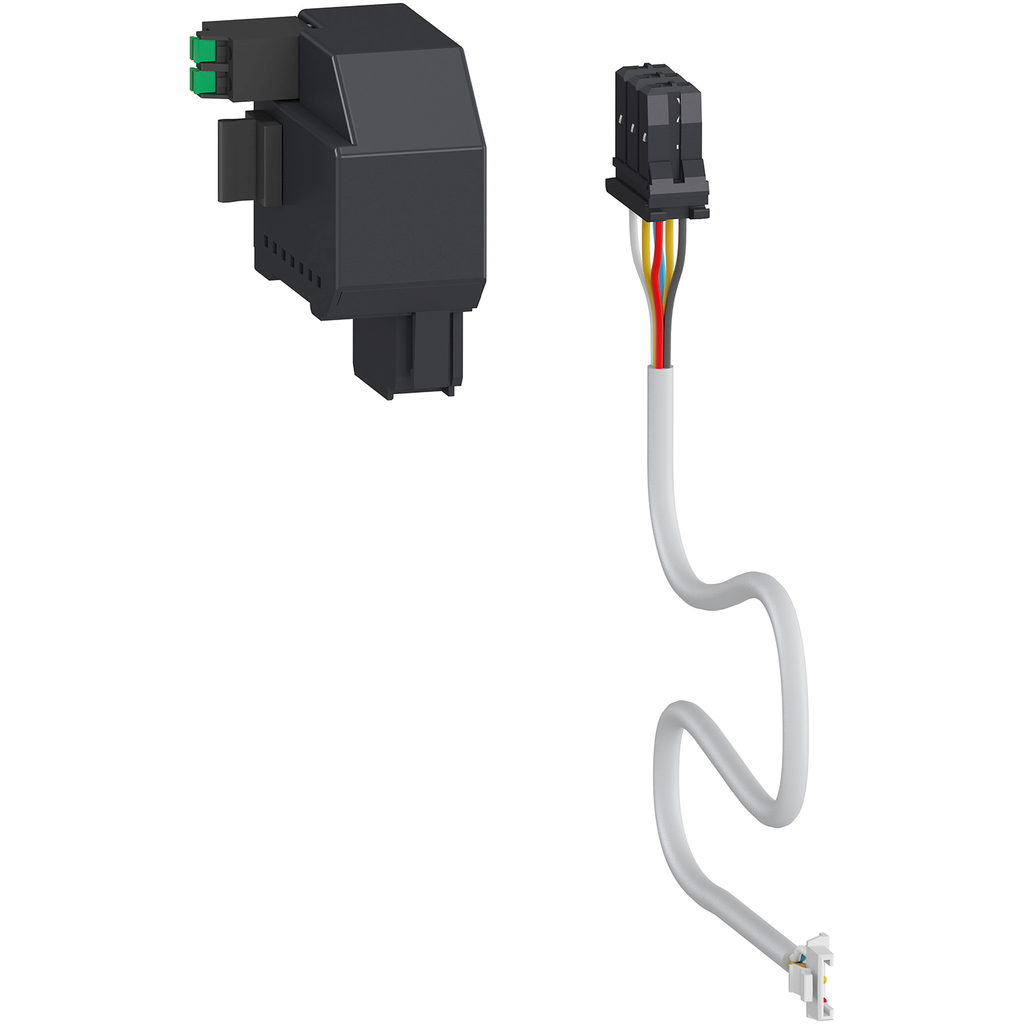

LV850063SP
ULP port module, MasterPact MTZ1 fixed, spare part
Specifications
| Country of Origin | United States |
|---|---|
| Range Compatibility | MasterPact MTZ1 circuit breaker |
| Product Or Component Type | connection adapter |
| Device Application | communication |
| Range | MasterPact |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Mounting Mode | fixed |
| Provided Equipment | 1 instruction sheet |
| Localisation On Device | on connection terminals |
| Maximum Supply Current | 0.8 A |
| Offer Type | spare part |
| Power Consumption In W | 14 W |
