LV850056SP

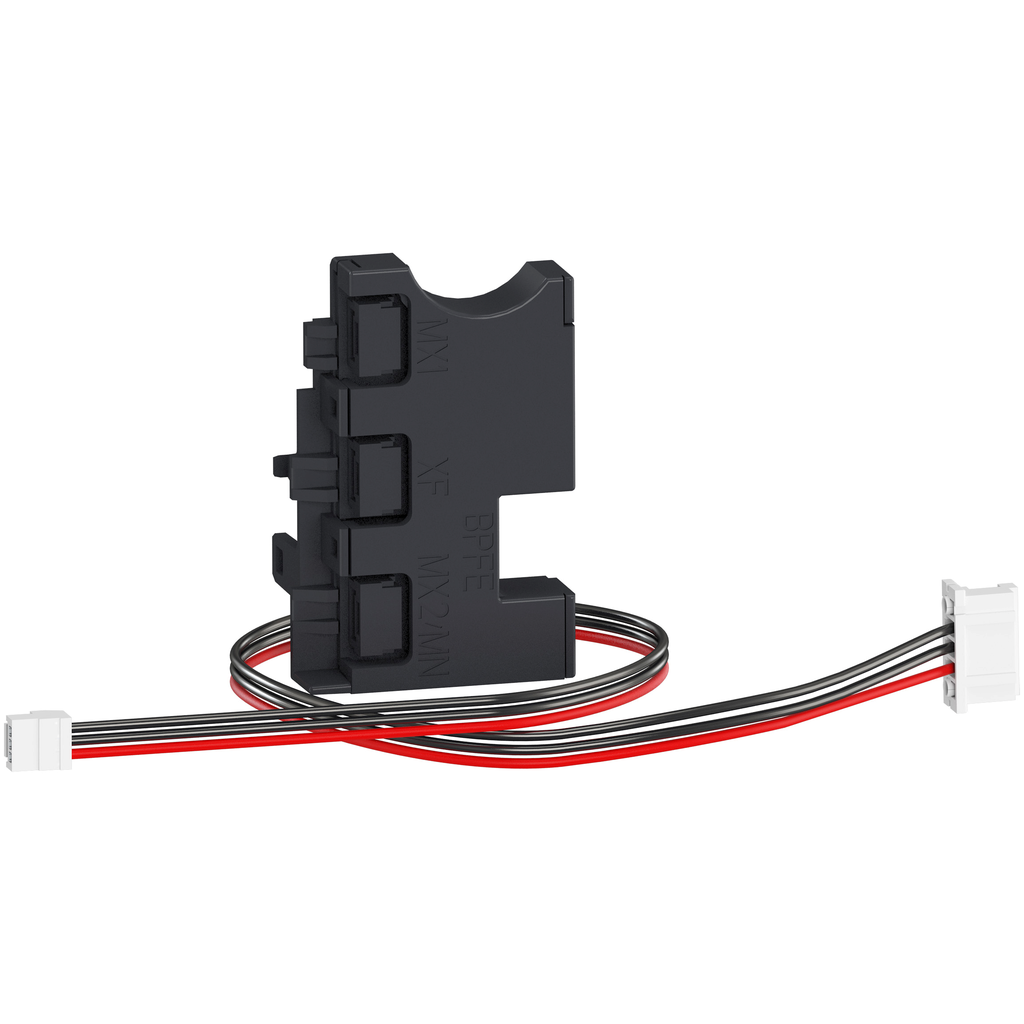

Isolation module, MasterPact MTZ1, for MX1/XF communicating coils, spare part
Specifications
| Country of Origin | United States |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | isolating block |
| Range | MasterPact |
| Device Application | coil protection |
| Device Short Name |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Destination | control unit |
| [Uc] Control Circuit Voltage | 480 V AC |
| Provided Equipment | 1 instruction sheet |
| Localisation On Device | behind control unit |
| Offer Type | spare part |
| Mounting Location | control enclosure |
| Control Type | communicating |
| Ambient Air Temperature For Operation | -35-70 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
