LV848892SP

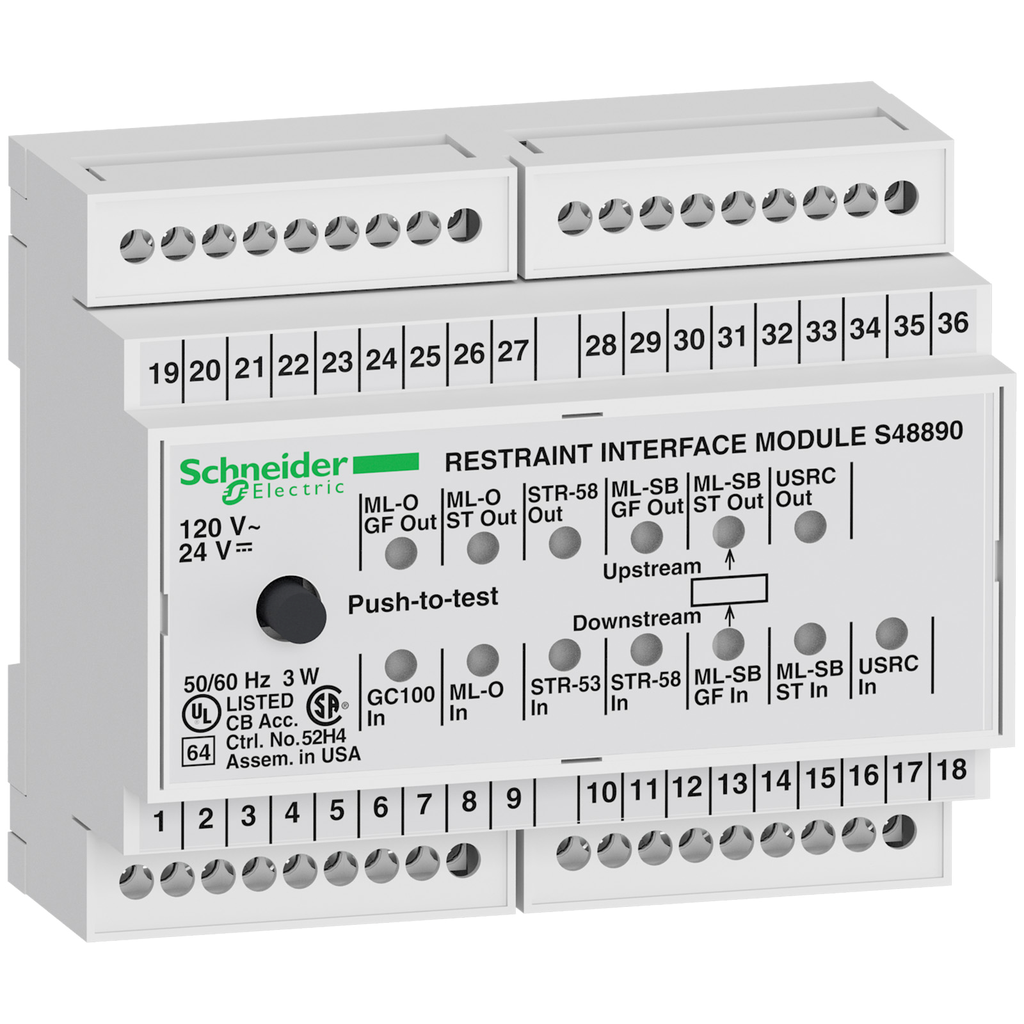

Restraint interface module (RIM) , MasterPact MTZ, ZSI zone selective interlocking, ANSI 78, spare part
Specifications
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
|---|---|
| Depth | 58 mm |
| Mounting Mode | rail |
| Height | 90 mm |
| Width | 100 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Range Compatibility |
|
| Product Or Component Type | ZSI module |
| Range | MasterPact |
| Quantity Per Set | 1 |
| Device Short Name | RIM |
Documents
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
- LV848892SP ZSI Interface Module - Instruction sheet - NHA12883_Rev.+10 (pdf)
