LV848603SP

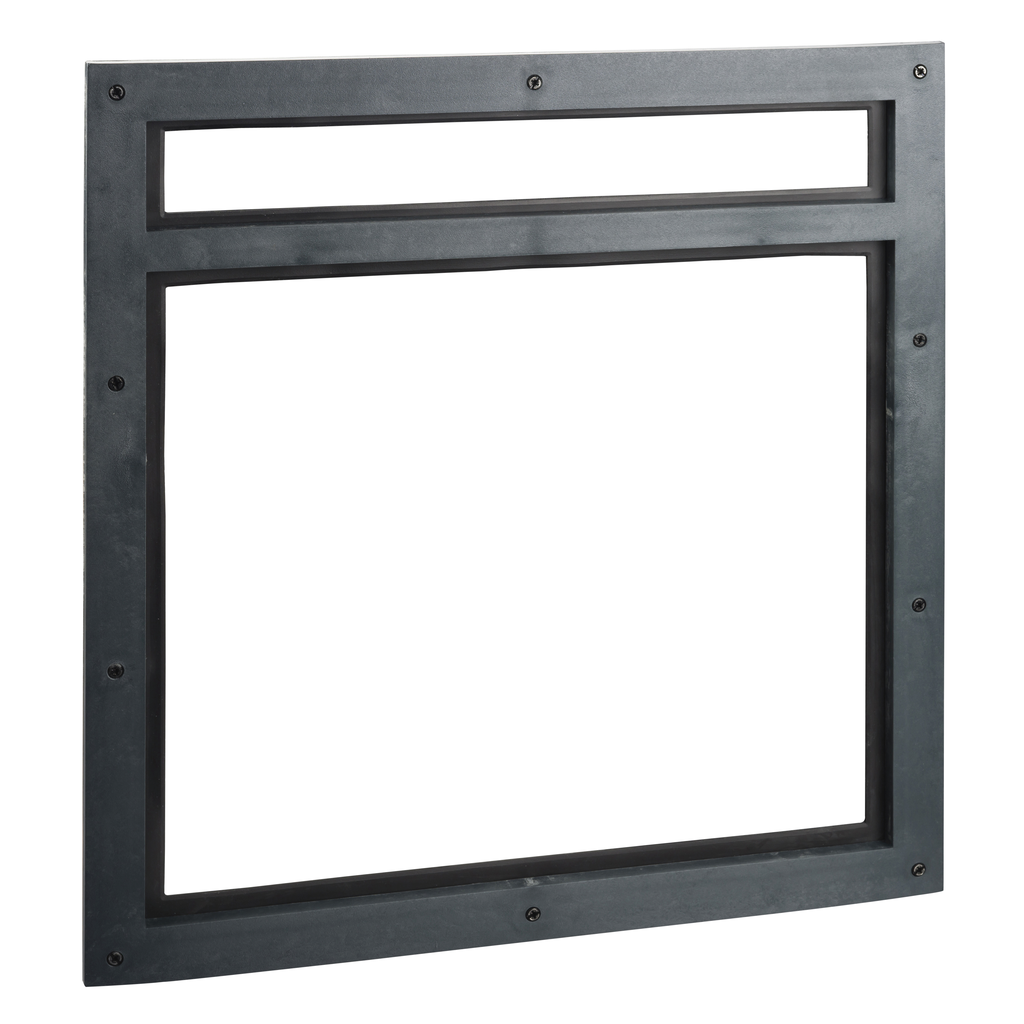

Door escutcheon, MasterPact MTZ2/MTZ3 drawout, IP40, spare part
This is the spare part of the escutcheon for Masterpact MT2 and Masterpact MTZ3 drawout devices. This optional equipment is mounted on the door of the cubicle. It increases the degree of protection to IP40 (circuit breaker installed free standing IP 30). This escutcheon is compatible with drawout devices.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Poland |
| Range Compatibility |
|
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | escutcheon |
| Range | MasterPact |
| Provided Equipment | 1 instruction sheet |
| Offer Type | spare part |
| Mounting Mode | drawout |
Documents
- MasterPacT MTZ2, MTZ3 Transparent Cover for Drawout MasterPacT Door Escutcheon - Instruction Sheet - NVE35492-01 (pdf)
- MasterPact MTZ2/MTZ3-Door Escutcheon - Instruction Sheet - NVE35491-02 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
