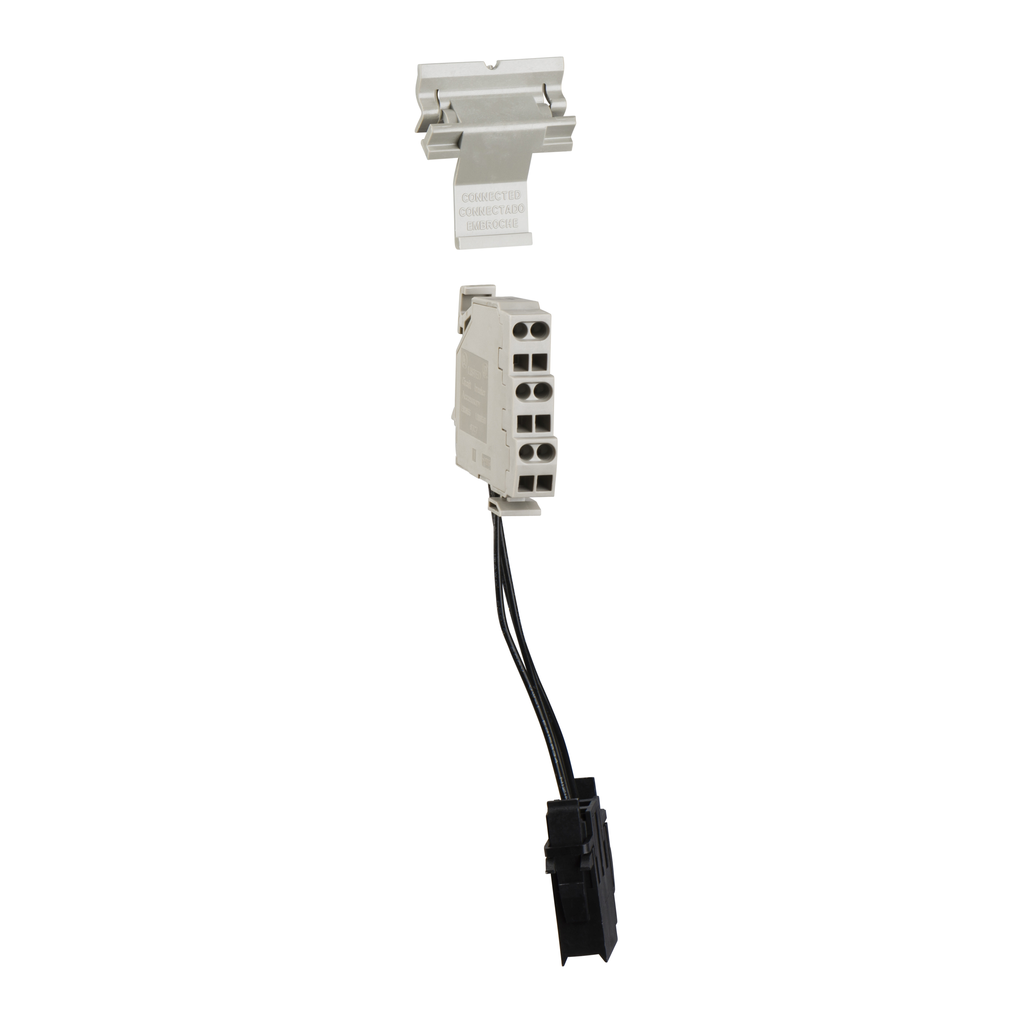

LV848478SP - Chassis position contact, MasterPact MTZ2/MTZ3 drawout, CE/CD/CT position, low level, 3A/240VAC, spare part

LV848478SP

Add to Quote Catalogue

Country of Origin	United States
Range Compatibility	Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker
Product Or Component Type	auxiliary contact
Range	MasterPact
Signal Contacts Composition	1 NO/NC
Device Application	control
Device Short Name	EF
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Provided Equipment	1 instruction sheet
Offer Type	spare part
Auxiliary Contacts Operation	connected position
Mounting Mode	drawout
Auxiliary Contacts Type	low level
[Ie] Rated Operational Current	DC-12 0.3 A 250 V DC DC-12 0.8 A 125 V DC DC-12 2.5 A 24/48 V DC AC-12 5 A 240 V AC 50/60 Hz AC-12 5 A 380 V AC 50/60 Hz AC-12 5 A 240/380 V AC 50/60 Hz
Minimum Load	2 mA 15 V
