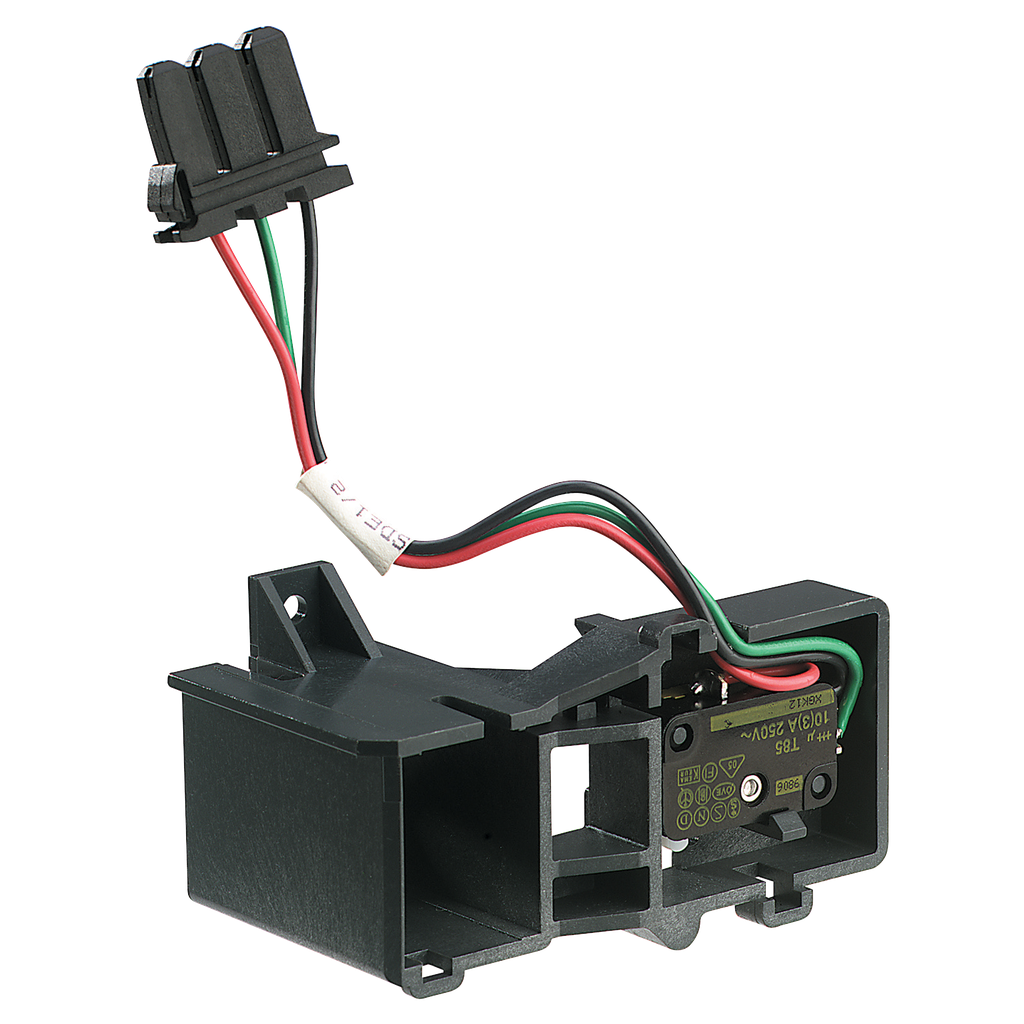

LV847916SP - Additional SDE fault trip indication contact, MasterPact MTZ2/3, 1 changeover contact, low level 3A/240VAC, spare part

LV847916SP

Add to Quote Catalogue

Country of Origin	United States
Range Compatibility	Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker
Product Or Component Type	auxiliary contact
Range	MasterPact
Device Application	control
Device Short Name	SDE
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Provided Equipment	1 instruction sheet
Offer Type	spare part
Signal Contacts Composition	1 NO/NC
Auxiliary Contacts Type	low level
Minimum Load	2 mA 15 V
Breaking Capacity	3 A DC-12 24/48 V DC 0.3 A DC-12 125 V DC 0.15 A DC-12 250 V DC 3 A AC-12 24/48 V AC 50/60 Hz 3 A AC-12 240 V AC 50/60 Hz 3 A AC-12 380 V AC 50/60 Hz
