LV847075SP

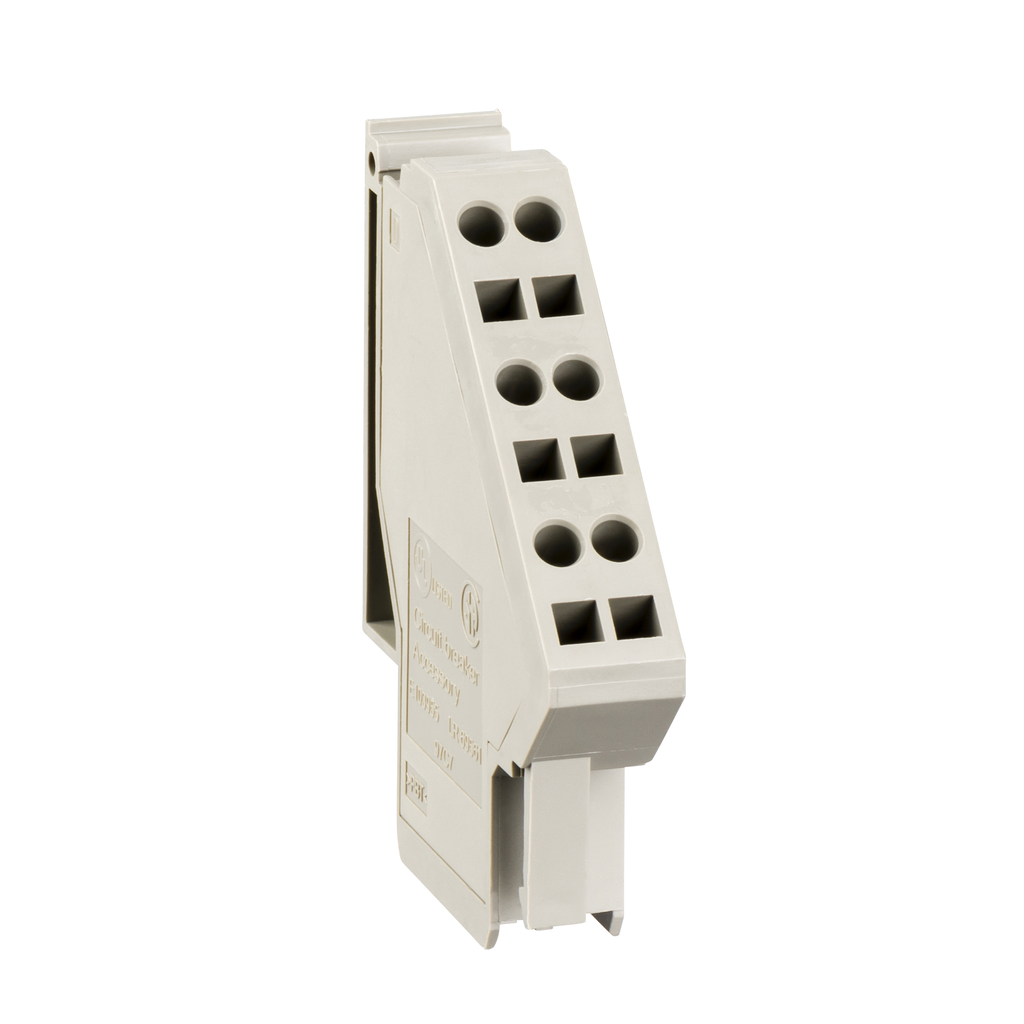

6 wires terminal block, MasterPact MTZ1/MTZ2/MTZ3, fixed, spare part
Specifications
| Eu Rohs Directive | Under investigation |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Mounting Mode | fixed |
| Provided Equipment | 1 instruction sheet |
| Offer Type | spare part |
| Wiring Mode | 6 wires |
| Country of Origin | United States |
| Quantity Per Set | 1 piece |
| Product Or Component Type | terminal block |
| Range Compatibility |
|
| Device Application | secondary wiring |
| Range | MasterPact |
