LV847074SP

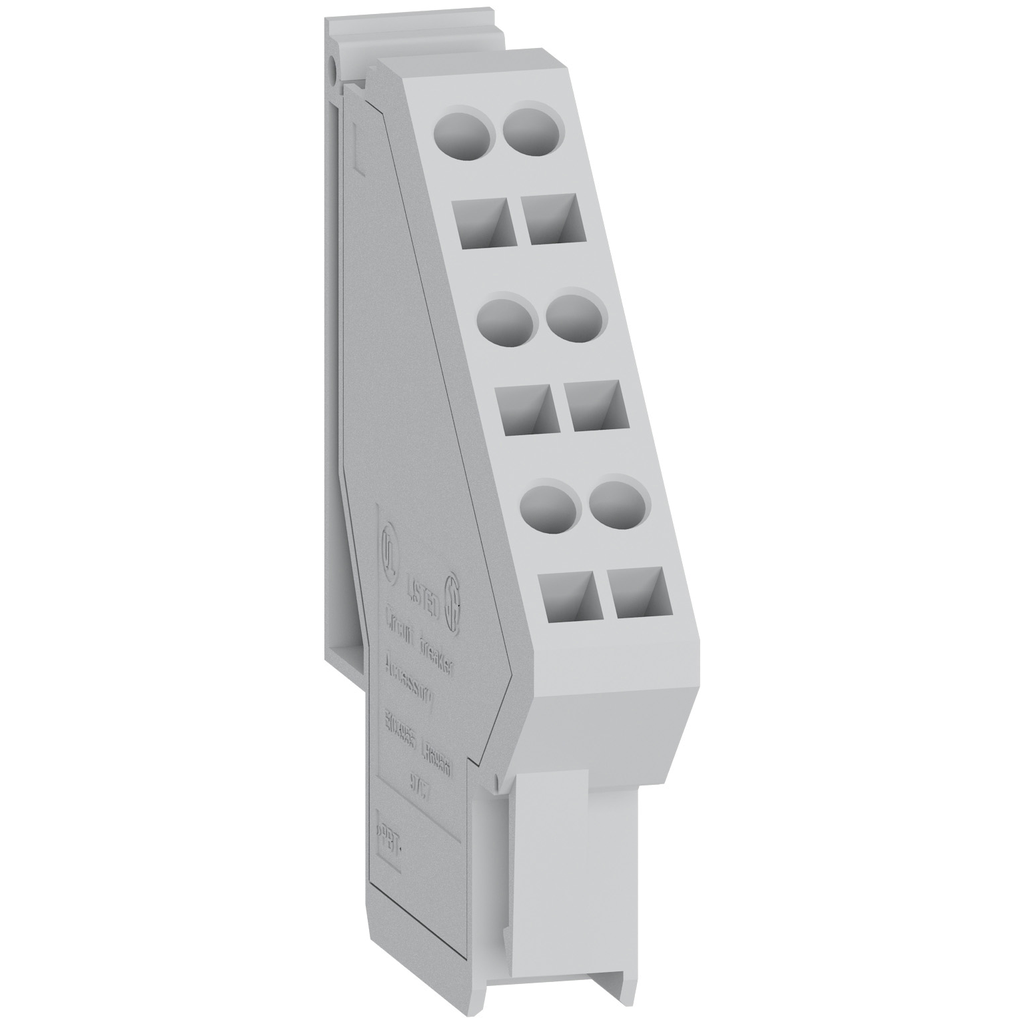

3 wires terminal block, MasterPact MTZ1/MTZ2/MTZ3, fixed, spare part
Specifications
| Provided Equipment | 1 instruction sheet |
|---|---|
| Offer Type | spare part |
| Mounting Mode | fixed |
| Wiring Mode | 3 wires |
| Country of Origin | United States |
| Product Or Component Type | terminal block |
| Range | MasterPact |
| Quantity Per Set | 1 piece |
| Range Compatibility |
|
| Device Application | secondary wiring |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- MasterPacT MTZ1 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ1-Fixed-MicroLogic-X-NVE35505-03 (pdf)
- MicroLogic X - Radio Frequency Compliance Statements - Instruction Sheet - MicroLogic-X-RF-Statements-QGH50009-07 (pdf)
- MasterPacT MTZ2/MTZ3 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ2-3-Fixed-MicroLogic-X-NVE35469-06 (pdf)
- MasterPacT MTZ - Auxiliary Terminals - Instruction Sheet - MTZ-Auxiliary-Terminals-IS-NVE35463-04 (pdf)
- MasterPacT MTZ1 Fixed Circuit Breaker or Switch, Installation Instructions - QGH70064-03 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
