LV834036SP

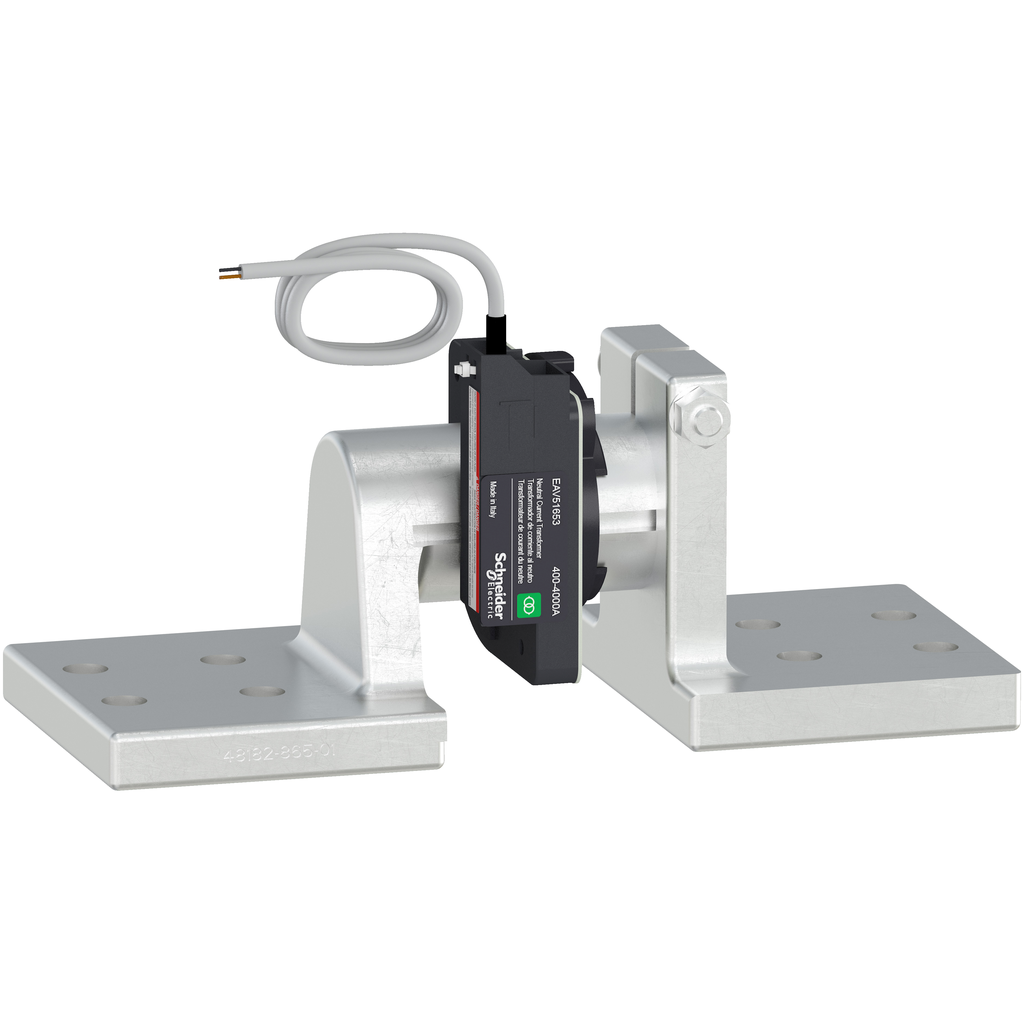

External current sensor, MasterPact MTZ2, earth fault protection, sensor rating 1000A-4000A, spare part
Specifications
| Country of Origin | United States |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | external sensor |
| Range | MasterPact |
| Device Composition | sensor |
| Device Application | protection |
| Device Short Name | TCE |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Provided Equipment | 1 instruction sheet |
| Offer Type | spare part |
| Depth | 294.7 mm |
| Line Rated Current | 1000-4000 A |
| Height | 128.5 mm |
| Width | 127 mm |
| Current Transformer Type | neutral + earth fault protection |
Documents
- Neutral Current Transformer for MasterPacT MTZ1/MTZ2/MTZ3 Circuit Breakers, Installation Instructions - NHA14388_08 (pdf)
- MasterPacT MTZ2/MTZ3 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ2-3-Fixed-MicroLogic-X-NVE35469-06 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
