LV833857SP

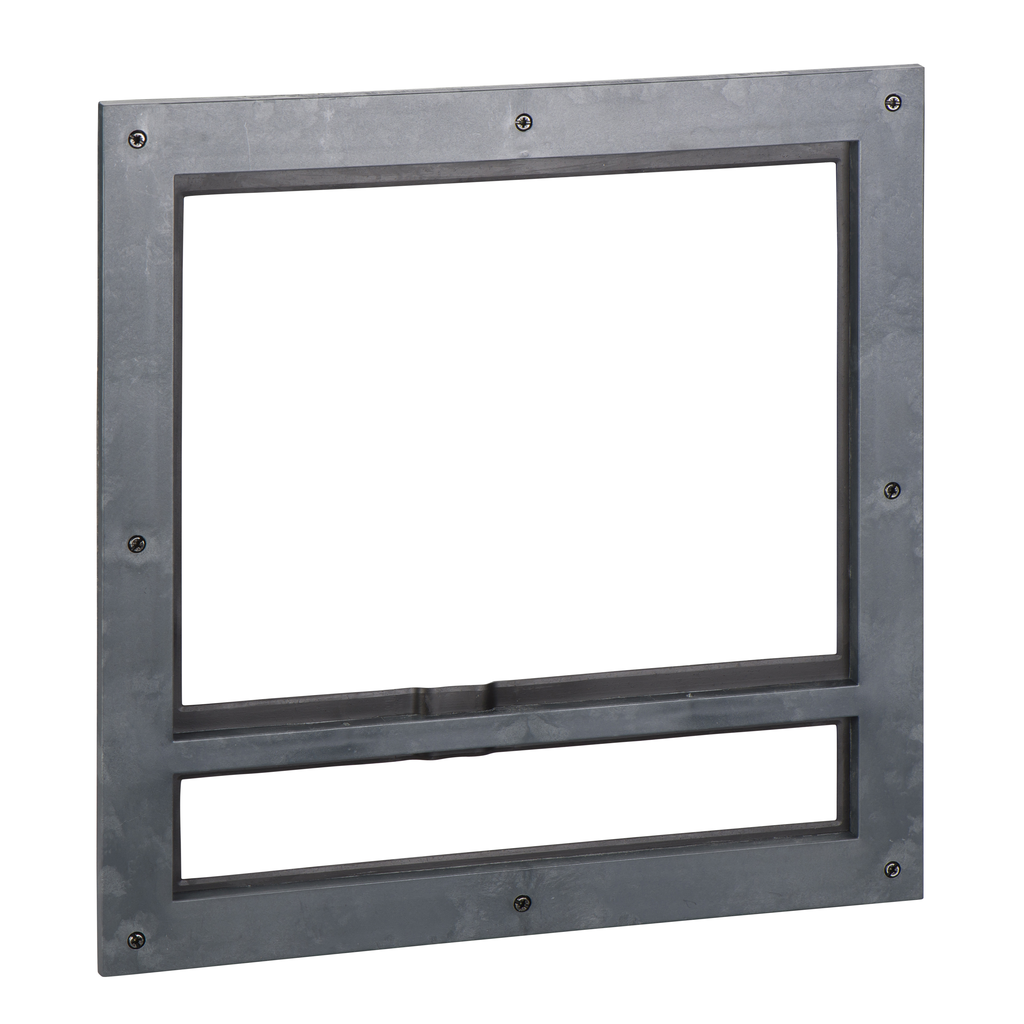

Door escutcheon, MasterPact MTZ1 fixed/drawout, IP40, spare part
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Provided Equipment | 1 instruction sheet |
| Offer Type | spare part |
| Mounting Mode | drawout |
| Country of Origin | United States |
| Range Compatibility | Masterpact MasterPact MTZ1 circuit breaker |
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | escutcheon |
| Range | MasterPact |
Documents
- MasterPacT MTZ1 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ1-Fixed-MicroLogic-X-NVE35505-03 (pdf)
- MasterPacT MTZ1 - Drawout Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ1-Drawout-MicroLogic-X-NVE35506-03 (pdf)
- MasterPact MTZ1-Door Escutcheon - NVE35517-01 (pdf)
- MasterPacT MTZ1 Transparent Cover for Drawout MasterPacT Door Escutcheon, - Instruction Sheet - NVE35518-01 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
