LV833210SP

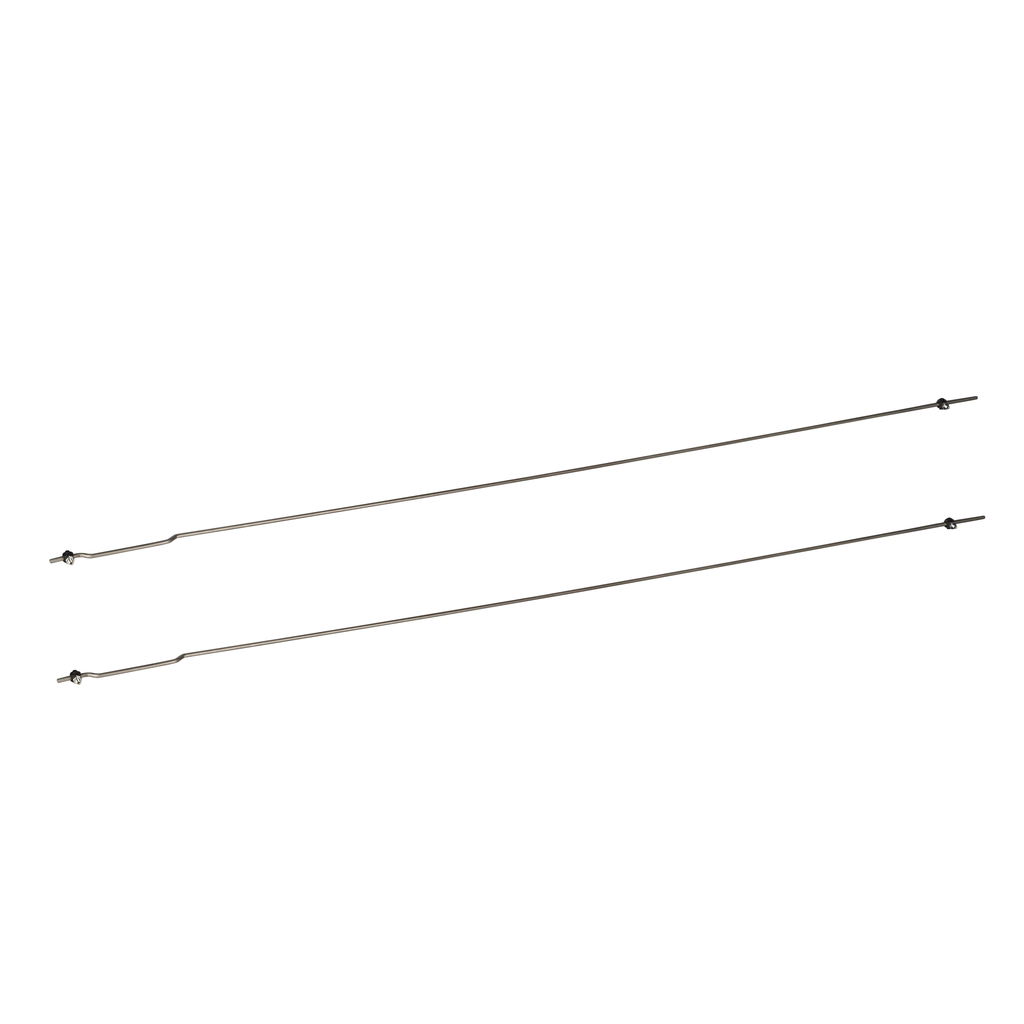

Mechanical interlocking, MasterPact MTZ, 1 set of 2 interlocking rods, spare part
Specifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Mounting Mode | chassis |
| Keylock Destination | circuit breaker |
| Provided Equipment | 1 instruction sheet |
| Locking Options Description | without keylocks |
| Mounting Support | direct mounting on locking rods |
| Offer Type | spare part |
| Mechanical Interlocking | with mechanical interlocking |
| Type Of Coupling | 2 devices |
| Key Locking Position | on the right |
| Country of Origin | France |
| Range Compatibility |
|
| Accessory / Separate Part Category | locking accessory |
| Product Or Component Type | rod interlock |
| Range | MasterPact |
Documents
- MasterPacT MTZ1 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ1-Fixed-MicroLogic-X-NVE35505-03 (pdf)
- MasterPact MTZ-Set of 2 Rods for Interlocking - Instruction Sheet - NVE61744-03 (pdf)
- MasterPacT MTZ1 - Drawout Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ1-Drawout-MicroLogic-X-NVE35506-03 (pdf)
- MasterPact MTZ1 - Mechanical Interlocking for Source Changeover (2 sources / rods) - Instruction Sheet - NVE35523-03 (pdf)
- MasterPacT MTZ2/MTZ3 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ2-3-Fixed-MicroLogic-X-NVE35469-06 (pdf)
- MasterPact MTZ2/MTZ3 - Mechanical Interlocking for Source Changeover (2 sources / rods) - Installation Instructions - Instruction Sheet - NVE35497-02 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
