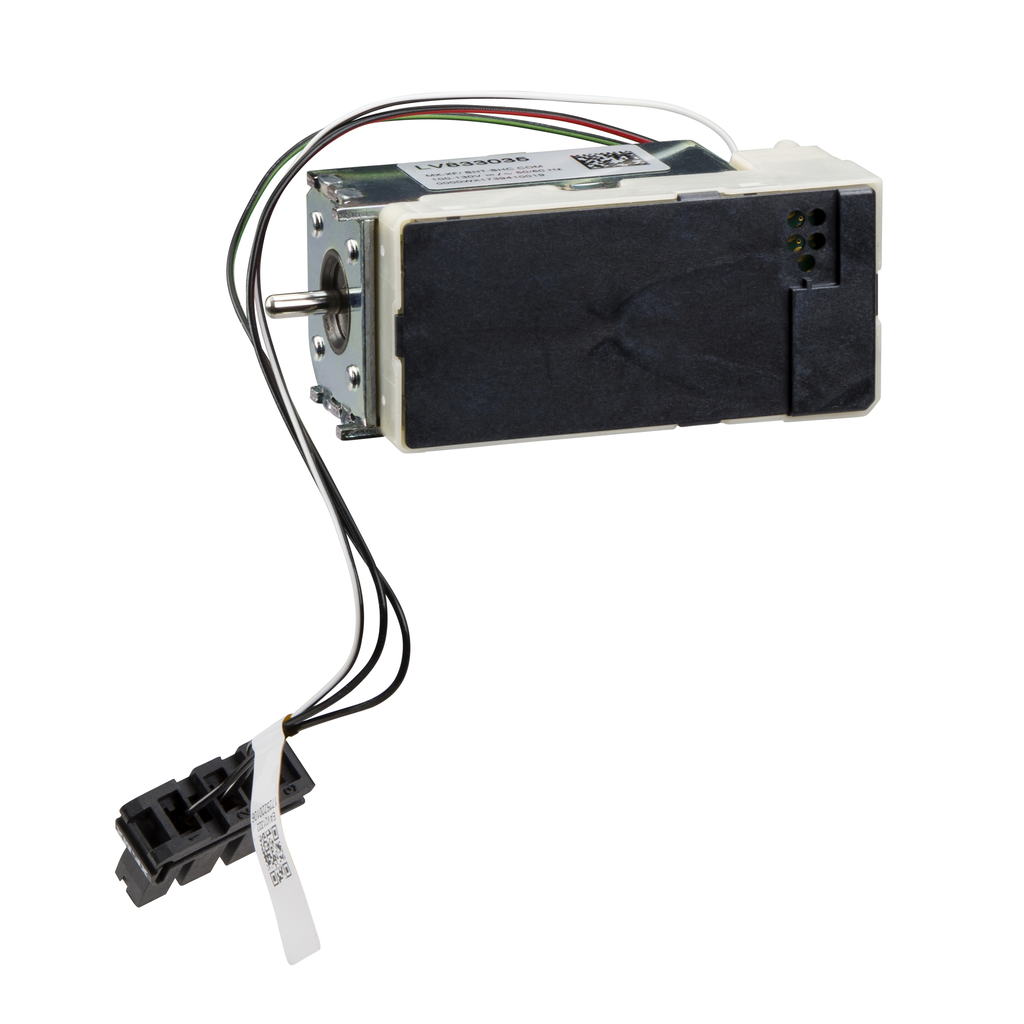

LV833035SP
XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 100/130VAC 50/60Hz, 100/130VDC, spare part
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2307032EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2307032EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Signalling Function |
|
| [Uc] Control Circuit Voltage |
|
| Supply Holding Power | 4.5 W |
| Provided Equipment | 1 instruction sheet |
| Offer Type | spare part |
| Control Type | communicating |
| Operating Time |
|
| Mounting Mode | fixed/drawout |
| Threshold Tripping Voltage |
|
| Country of Origin | United States |
| Range Compatibility |
|
| Product Or Component Type | voltage release |
| Range | MasterPact |
| Voltage Release Type |
|
| Device Application | control |
Documents
- MasterPact MTZ - MN-MX-XF Diagnostic and Communicating Voltage Releases - Instruction Sheet - NVE40766-03 (pdf)
- MasterPacT MTZ2/MTZ3 - Fixed Circuit Breaker with MicroLogic X Control Unit or Switch-Disconnector - Instruction Sheet - MasterPacT-MTZ2-3-Fixed-MicroLogic-X-NVE35469-06 (pdf)
- MasterPact MTZ-Isolation Module - Instruction Sheet - NVE40748-02 (pdf)
- Spec Sheet
- MasterPact MTZ Catalog numbers and spare parts 2022 Air circuit breakers and switch disconnectors - COM-POWER-LVMKT215EN (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
