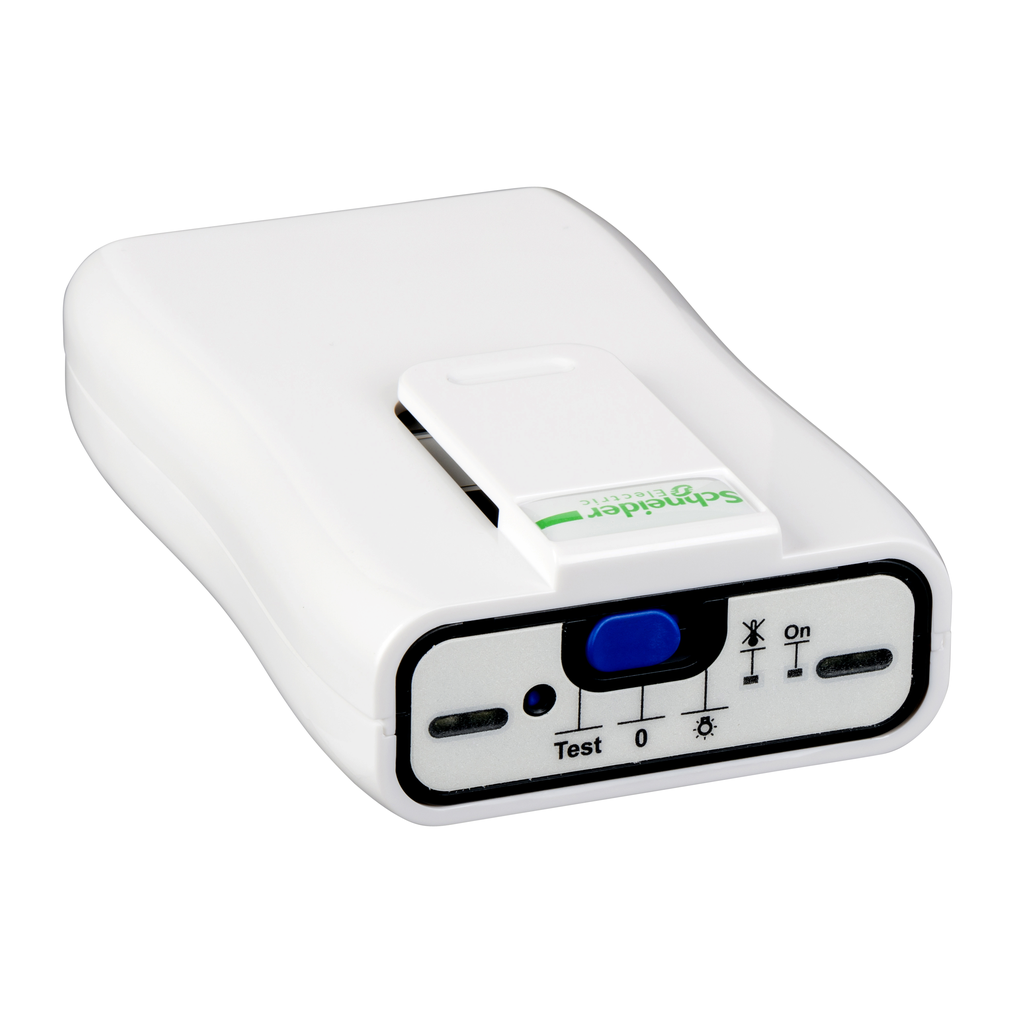

LV434206
pocket battery for MicroLogic, ComPact NSX, ComPact NSXm
This is an accessory for Micrologic trip unit for Compact NSX and PowerPact multistandard devices. It is an external battery used for the local inspection and testing of Micrologic trip units. It enables to use Micrologic display screen and keypad even if the power supply to the Micrologic trip unit is interrupted. The pocket battery is connected to Micrologic test port with the trip unit connector (supplied with the pocket battery). Additionally, the pocket battery embeds a plastic screw-driver for the rotary switches settings and a flash light.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | France |
| Range Compatibility |
|
| Accessory / Separate Part Category | support accessory |
| Product Or Component Type | pocket battery |
| Warranty | 18 months |
