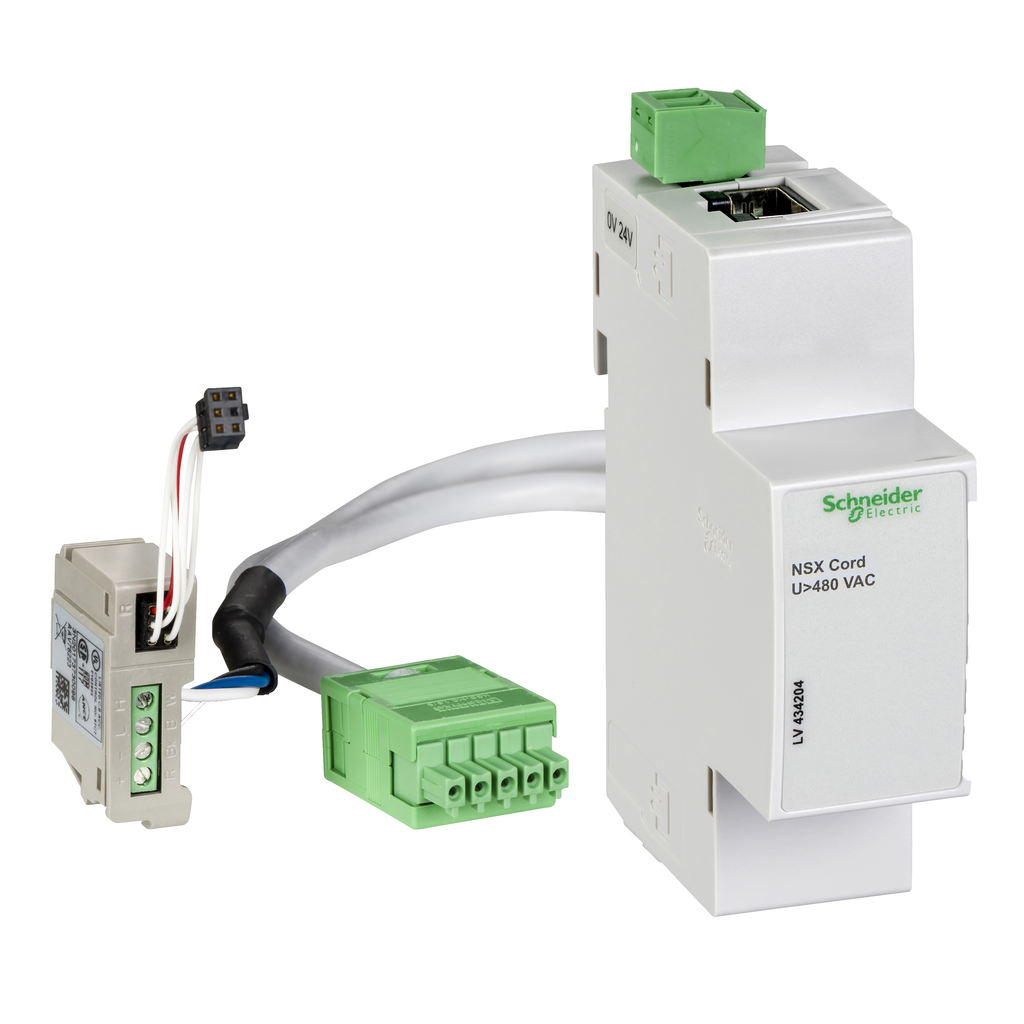

LV434204
ULP wiring accessory, ComPacT NSX, insulated NSX cord, 1.3m length, voltage above 480VAC
This insulated NSX cord is an ULP wiring accessory that connects Compact NSX devices to ULP devices. The insulated NSX cord is mandatory for system voltages greater than 480 V AC. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. NSX cord is compatible with PowerPact multistandard products. NSX cord is equipped with one RJ45 connector for the connection to ULP devices. NSX cord is connected on the Compact NSX BSCM module for both communication and 24VDC power supply. The length is 1.3 m.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 1.3 m |
| Range Compatibility |
|
| Product Or Component Type | terminal block connector |
| Device Short Name | cord L = 1.3 m |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2306004EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2306004EN |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant |
| Localisation On Device | internal |
| Length | 1.3 m |
| Connector Type | 1 RJ45 |
| Mounting Mode | by clips |
| Location Of Connection | inside |
| [Ue] Rated Operational Voltage | > 480 V AC |
| Warranty | 18 months |
