LV434202

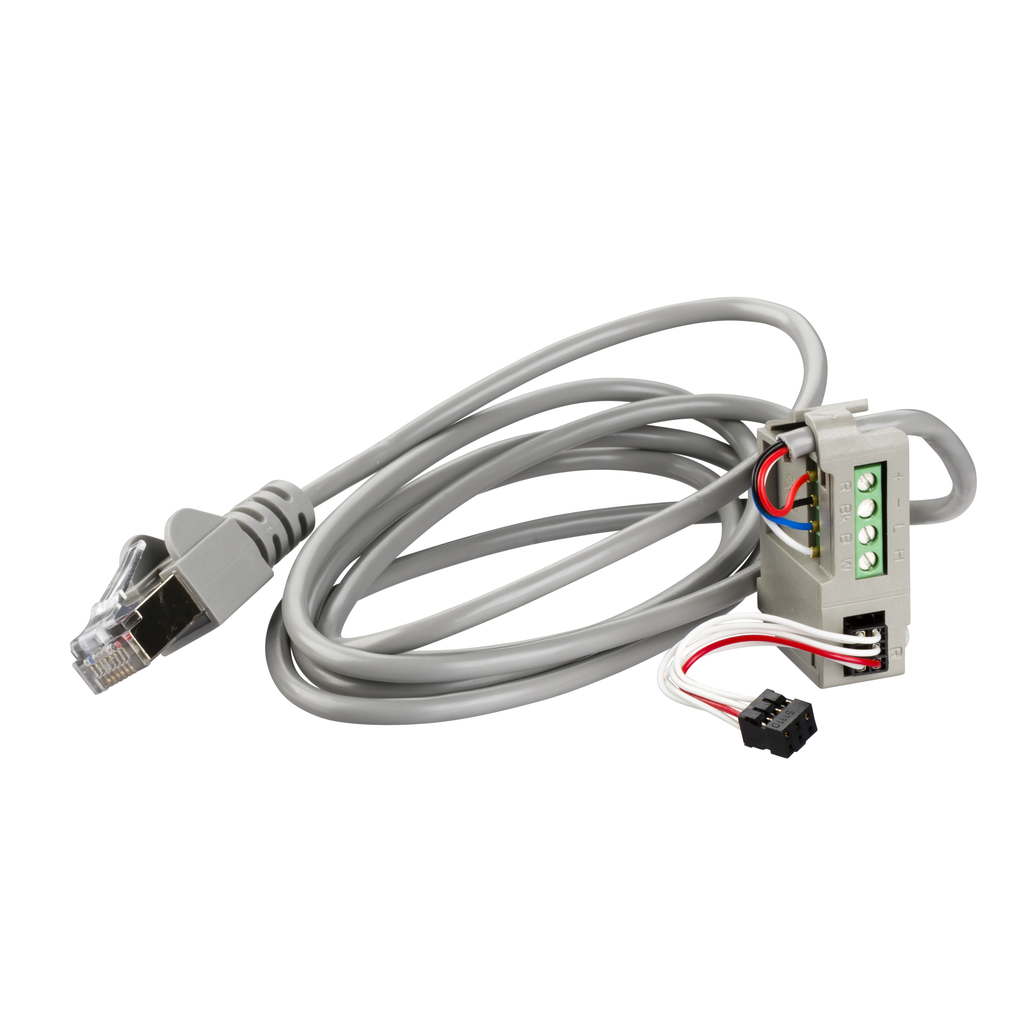

ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC
NSX cord is an ULP wiring accessory that connects Compact NSX devices to ULP devices. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. NSX cord is compatible with PowerPact multistandard products. NSX cord is equipped with one RJ45 connector for the connection to ULP devices. NSX cord is connected on the Compact NSX BSCM module for both communication and 24VDC power supply. The length is 3 m.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2306004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2306004EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Localisation On Device | internal |
| Length | 3 m |
| Connector Type | 1 RJ45 |
| Mounting Mode | by clips |
| Location Of Connection | inside |
| [Ue] Rated Operational Voltage | <= 480 V |
| Country of Origin | United States |
| Length | 3 m |
| Range Compatibility |
|
| Product Or Component Type | terminal block connector |
| Device Short Name | cord L = 3 m |
| Warranty | 18 months |
Documents
- ComPacT NSX, PowerPacT H-, J-, L-Frame - NSX Cord - Instruction Sheet - NSX-Cord-IS-GHD1604703-00 (pdf)
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
