IFE Ethernet interface, Enerlin'X

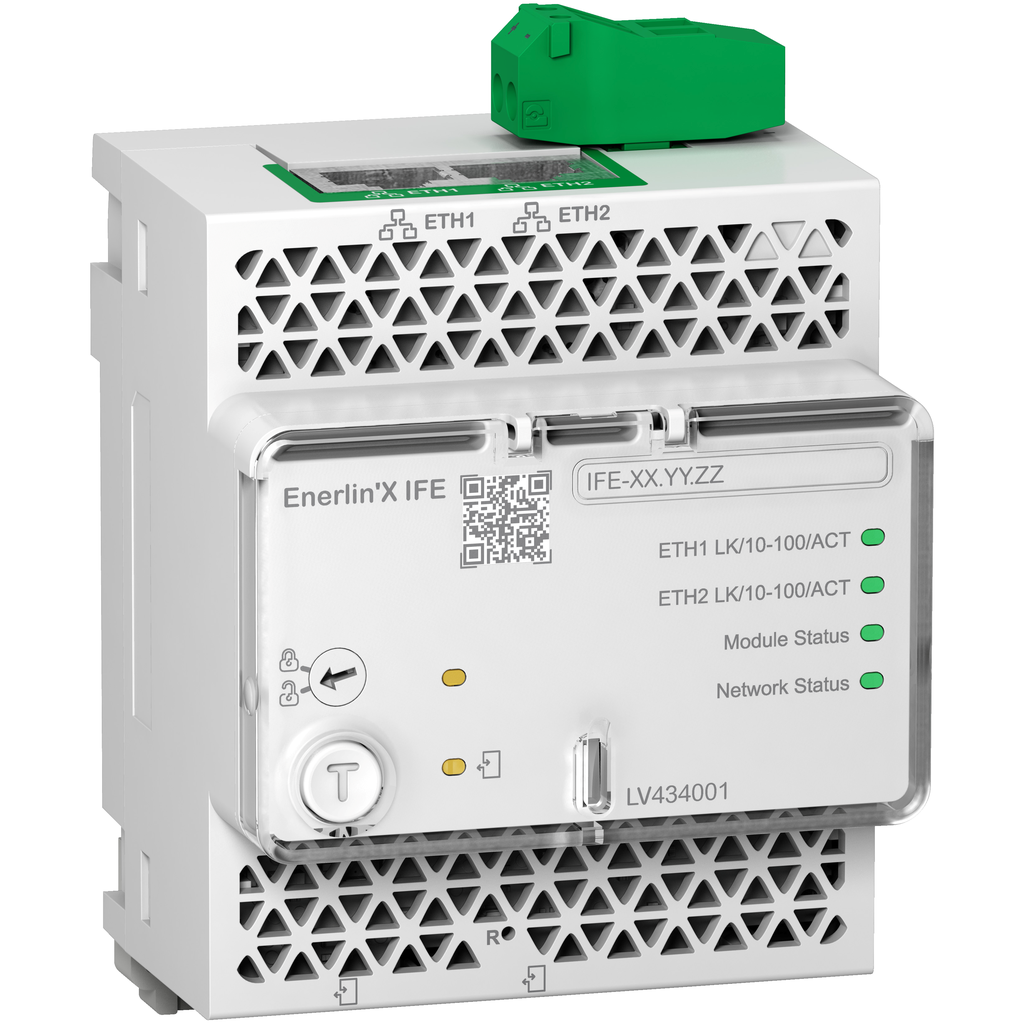

This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -20-70 °C |
|---|---|
| Pollution Degree | 3 |
| Shock Resistance | 1000 m/s² |
| Flame Retardance |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-85 % |
| Ip Degree Of Protection |
|
| Vibration Frequency | 5-8.4 Hz |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305024EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2305024EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| [Us] Rated Supply Voltage | 24 V DC - 20...10 % |
| Connections - Terminals | RJ45 connector |
| Height | 105 mm |
| Standards |
|
| Mounting Support | 35 mm DIN rail |
| Net Weight | 182.5 g |
| Communication Network Type |
|
| Control Type | by software |
| Current Consumption | 120 mA |
| Accessory / Separate Part Category |
|
| Mounting Mode | by clips |
| Maximum Supply Current | 3 A |
| Width | 72 mm |
| Depth | 71 mm |
| Web Server | embedded HTTP server |
| Country of Origin | United States |
| Width | 72 mm |
| Height | 105 mm |
| Weight | 182.5 g |
| Range Of Product |
|
| Range Compatibility |
|
| Product Or Component Type | interface module |
| Device Short Name | IFE |
