LV432517

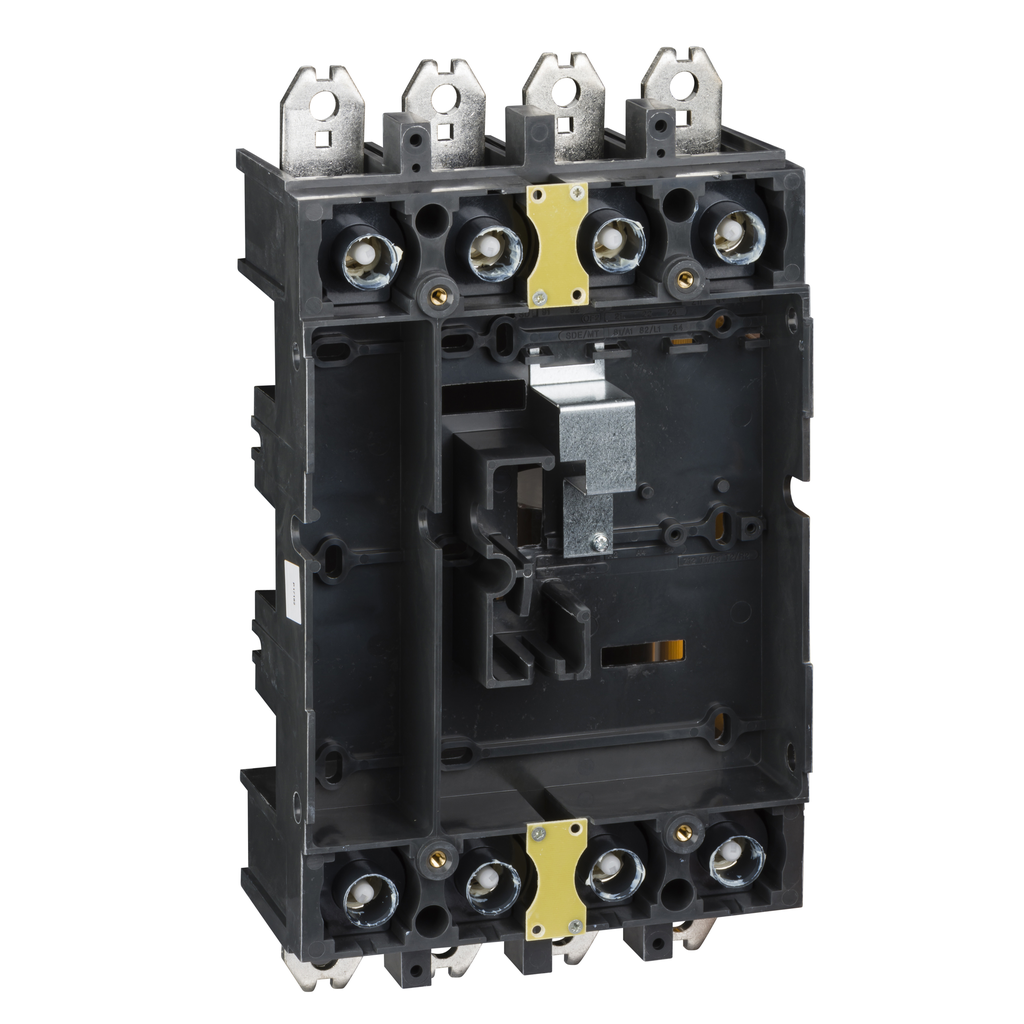

plug in base, ComPact NSX400/630, front/rear connected, 4 poles
This is a plug-in base for 4 poles Compact NSX 400/630 circuit breakers. The plug-in base is part of a complete plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed Compact NSX device. A plug-in configuration allows to install or extract rapidly and easily the circuit breaker from its base. This operation can be done without connecting or disconnecting the power circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | plug-in base |
| Poles Description | 4P |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2309033EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Line Rated Current | 630 A |
| Earth-Leakage Protection | without |
| Mounting Mode | plug-in |
Documents
- ComPacT NSX400-630 - Plug-in Base - Instruction Sheet - ComPacT-NSX400-630-Socle-IS-GHD1631603-01 (pdf)
- PowerTag M250 or M630 Mounting Instructions on the Plug-in Base ComPacT NSX100-250 or NSX400-630 - MFR37601-04 (pdf)
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
