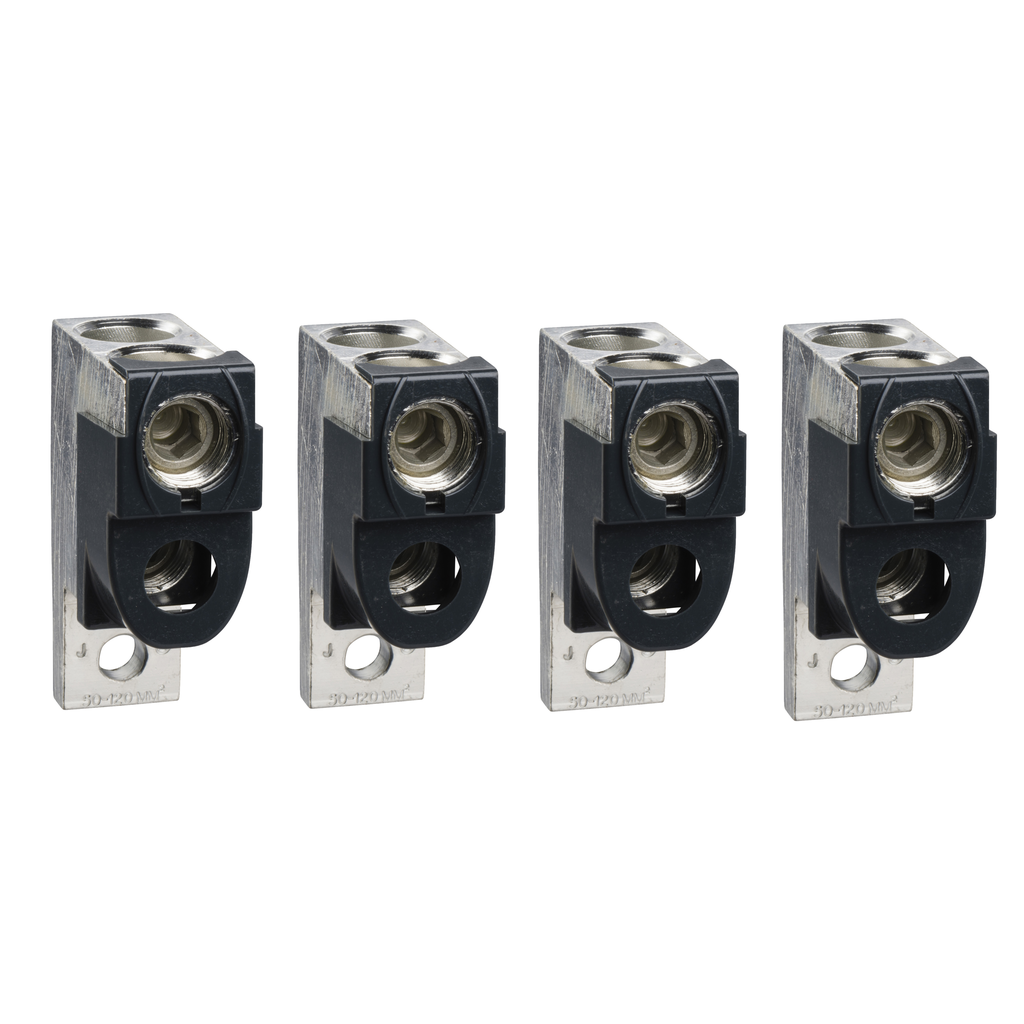

LV432482 - Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 4 parts

LV432482

Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 4 parts

These accessories are aluminium bare cable connectors for Compact NSX 400/630 and EasyPact CVS 400/630. These connectors can receive 2 copper or aluminium cables from 35mm² to 240mm². The connectors are screwed directly on the device terminals or right angle terminal extensions. The rated current is up to 630 A. They are sold by set of 4 parts.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	France
Range Compatibility	ComPacT new generation ComPacT NSX400 new generation ComPacT new generation ComPacT NSX630 new generation ComPacT new generation ComPacT NSX DC new generation ComPact Compact NSX400 ComPact Compact NSX630 ComPact Compact NSX400 DC ComPact Compact NSX630 DC ComPact EasyPact EasyPact CVS400 EasyPact EasyPact CVS630 ComPact ComPacT INS ComPact Compact INV
Accessory / Separate Part Category	connection accessory
Product Or Component Type	bare cable connector
Poles Description	4P
Quantity Per Set	set of 4
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Conductor Material	aluminium
Connections - Terminals	screw terminal2 35-240 mm²
Line Rated Current	630-630 A

Aluminium bare cable connectors, ComPacT NSX, for 2 cables 35mm² to 240mm², 630A, set of 4 parts
