LV430563

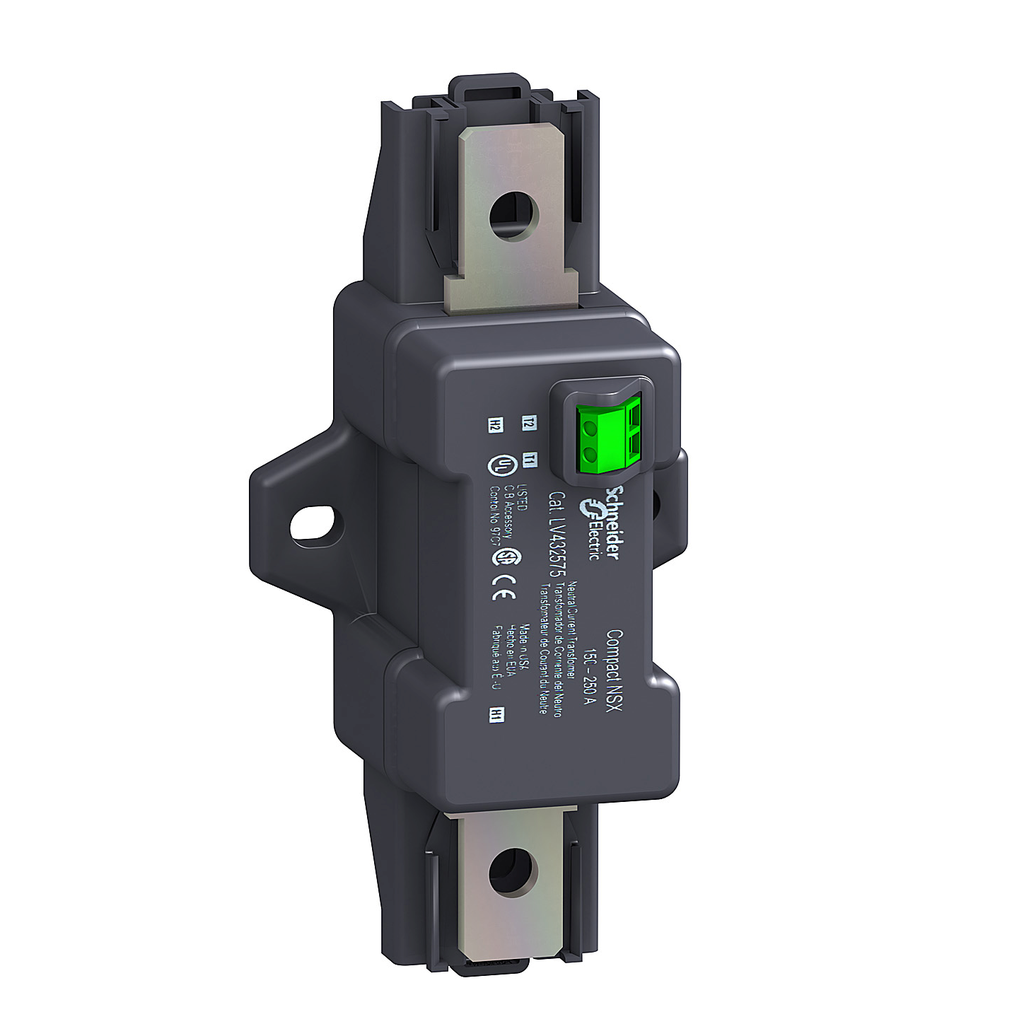

external neutral current transformer, ComPact NSX160/250, 150A to 250A, 3P breakers with Micrologic 5/6 trip unit
It is an external neutral current transformer (ENCT) for Compact NSX160/250 equipped with Micrologic 5/6 trip unit. With 3P devices, the distributed neutral of the installation can be protected by installing this external sensor. The sensor rated current is from 150 A to 250 A. The ENCT must be connected to the Micrologic trip unit by a shielded twisted pair. The wiring maximum length is 10 m and the cross section is from 0.4 mm² to 1.5 mm².
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | neutral sensor |
| Device Application | power supply |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Line Rated Current | 150-250 A |
| Warranty | 18 months |
